Rockwell Automation Publication 2080-UM004D-EN-E - March 2018 9
Install and Wire Your Module Chapter 2

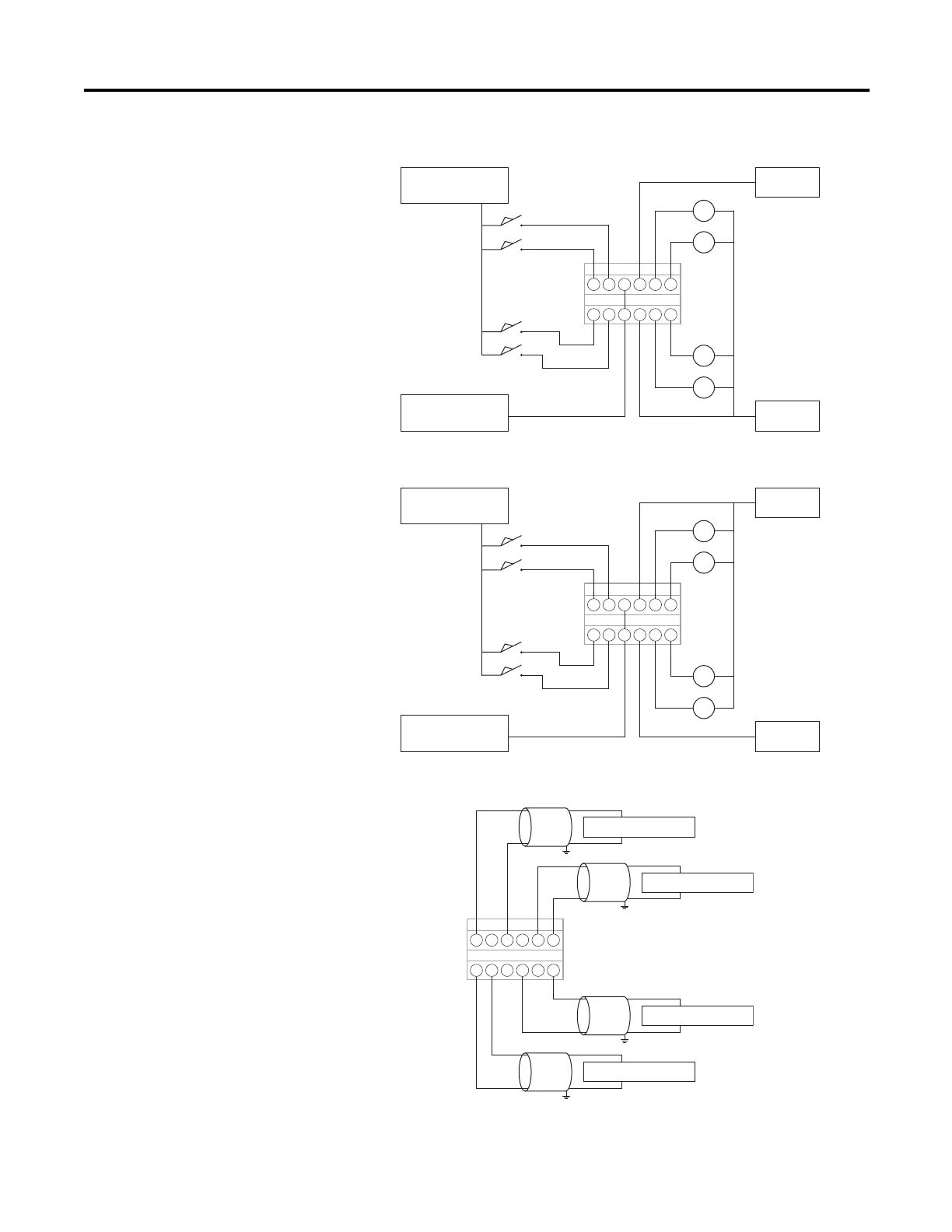

Example Wiring for 2080-IQ4OB4
Example Wiring for 2080-IQ4OV4
Example Wiring for 2080-IF4
1 2 3 4
1 2 3 4
5 6
5 6
+24V DC
-24V DC
+24V DC (Sinking)
-24V DC (Sourcing)
CR
Sourcing
output
DC input
B
A
CR
CR
CR
-24V DC (Sinking)
+24V DC (Sourcing)
1 2 3 4
1 2 3 4
5 6
5 6
+24V DC
-24V DC
+24V DC (Sinking)
-24V DC (Sourcing)
CR
Sinking
output
DC input
B
A
CR
CR
CR
-24V DC (Sinking)
+24V DC (Sourcing)
1 2 3 4
1 2 3 4
5 6
5 6
Voltage transmitter
Shielded cable
B
A
Current transmitter
Shielded cable
Voltage transmitter
Current transmitter
Shielded cable
Shielded cable
