10 Rockwell Automation Publication 2080-UM004D-EN-E - March 2018
Chapter 2 Install and Wire Your Module
The following plug-in modules have eight-pin female terminal blocks:
• 2080-OF2
• 2080-SERIALISOL
• 2080-MOT-HSC

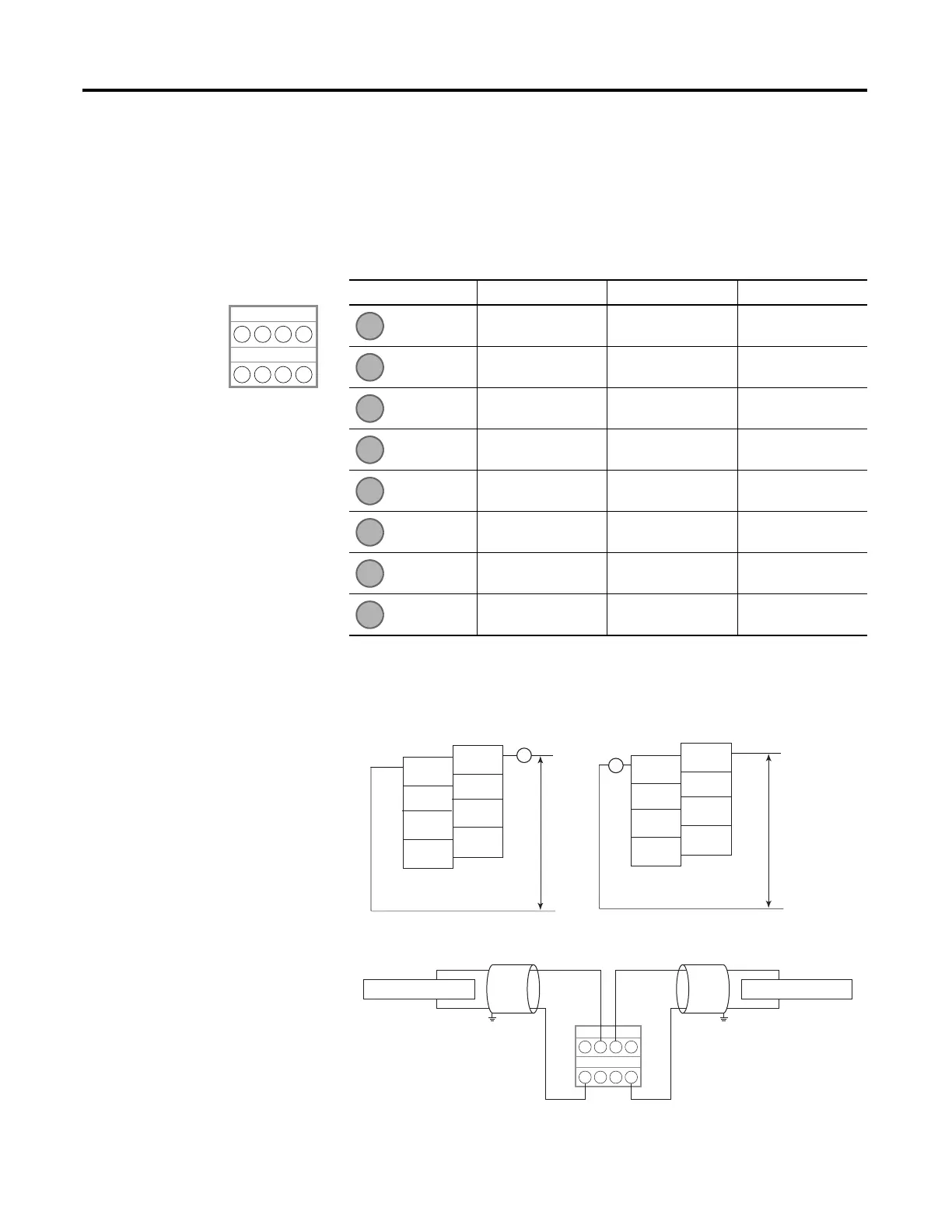

Example Wiring for 2080-OF2
Pin Designations for 8-Pin Female Terminal Block Modules
Pin 2080-OF2 2080-SERIALISOL 2080-MOT-HSC
(1)
(2)
(1) IMPORTANT: Individually shielded, twisted-pair cable (or the type recommended by the encoder or sensor
manufacturer) should be used for the 2080-MOT-HSC plug-in.
(2) Sinking Output/Sourcing Output wiring for the 2080-MOT-HSC plug-in is shown below.
COM RS485 B+ O-
COM GND A-
COM RS232 RTS B-
COM RS232 CTS Z-
VO-0 RS232 DCD O+
CO-0 RS232 RXD A+
VO-1 RS232 TXD B+
CO-1 RS485 A- Z+
1 2 3 4
1 2 3 4
Back
Front
B
A
Eight-pin female terminal block
0-
A-
B-
Z-
A+
B+
Z+
0+
DC(+)
DC(-)
CR
CR
0-
A-
B-
Z-
A+
B+
Z+
0+
DC(+)
DC(-)
Sinking Output Wiring
Sourcing Output Wiring
1 2 3 4
1 2 3 4
Voltage transmitter
Shielded cable
B
A
Current transmitter
Shielded cable
