Publication 1764-UM001B-EN-P - April 2002
4-16 Communication Connections

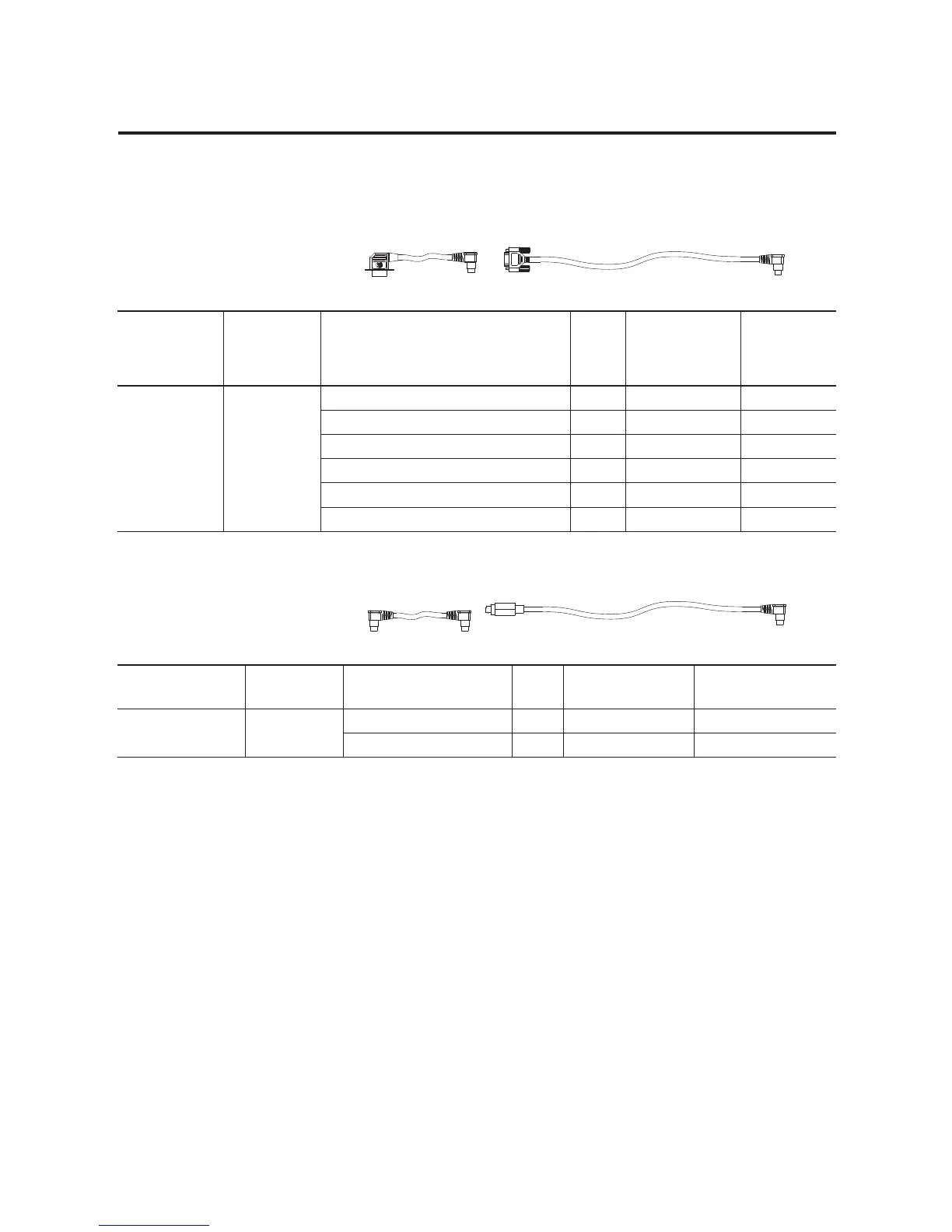

Cable Selection Guide
1761-CBL-AP00
1761-CBL-PM02
Cable Length Connections from to AIC+ External Power
Supply
Required
(1)
Power
Selection
Switch
Setting
(1)
1761-CBL-AP00
1761-CBL-PM02
45cm (17.7 in)
2m (6.5 ft)
1764-LRP processor, channel 1 port 2 yes external
SLC 5/03 or SLC 5/04 processors, channel 0 port 2 yes external
MicroLogix 1000 or 1500 port 1 yes external
PanelView 550 through NULL modem adapter port 2 yes external
DTAM Plus / DTAM Micro port 2 yes external
PC COM port port 2 yes external
(1) External power supply required unless the AIC+ is powered by the device connected to port 2, then the selection switch should be set to
cable
.
1761-CBL-AM00
1761-CBL-HM02
Cable Length Connections from to
AIC+
External Power
Supply Required
(1)
Power Selection
Switch Setting
(1)
1761-CBL-AM00
1761-CBL-HM02
45cm (17.7 in)
2m (6.5 ft)
MicroLogix 1000 or 1500 port 2 no cable
to port 2 on another AIC+ port 2 yes external
(1) External power supply required unless the AIC+ is powered by the device connected to port 2, then the selection switch should be set to
cable
.
