Chapter 1 Overview
Configured Terminals
A configured terminal, ordered as a single-catalog number, has a display module
and logic module.
An optional DH+/DH-485, ControlNet, or Ethernet communication module
can be added later for additional network capabilities.

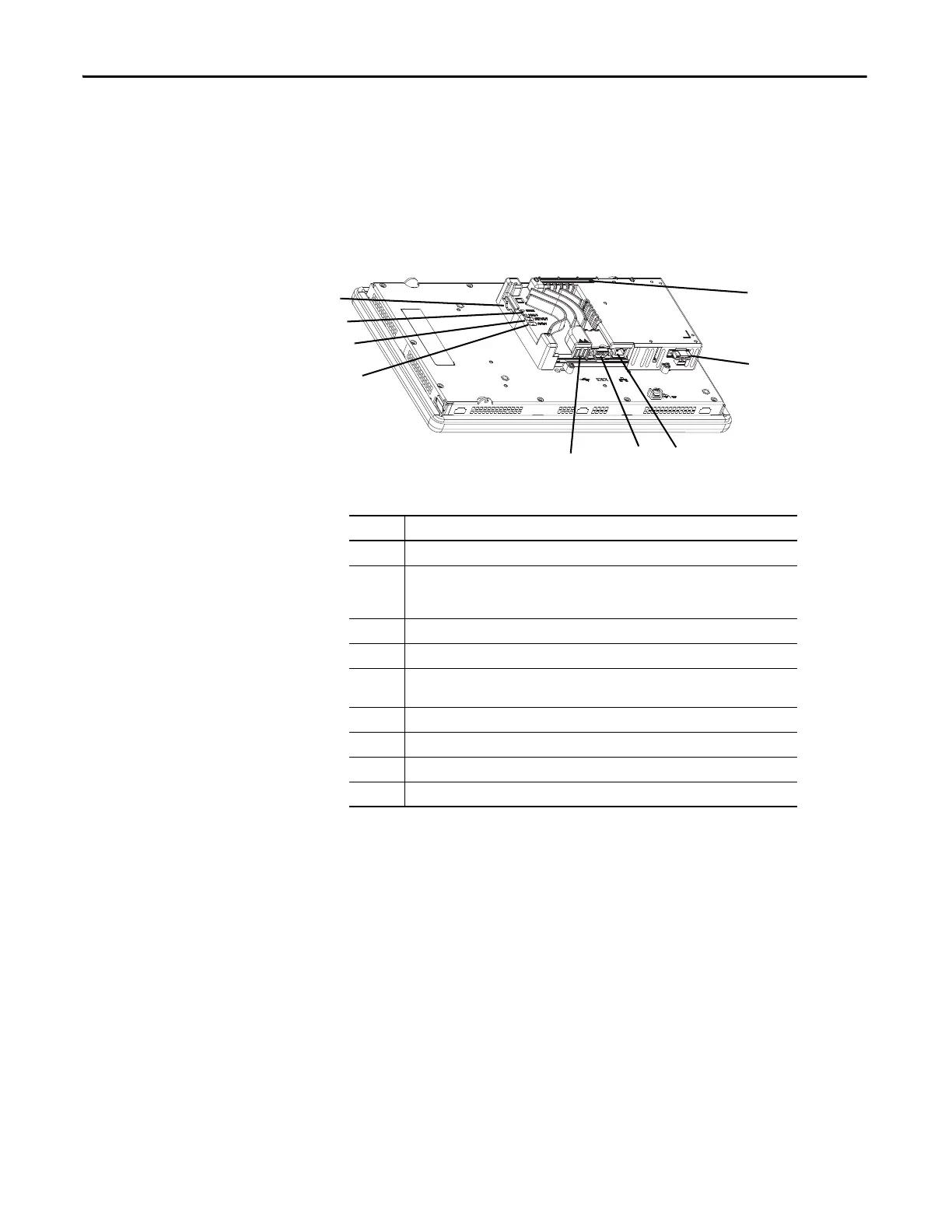

Table 8 - Logic Module Features
Item Feature
1 Network interface connector for optional communication module
2 AC or DC power input
(1)
• Isolated 18…32V DC
• 100…240V AC
(1) For DC applications using AC power, an external, remote AC-to-DC power supply, cat. no. 2711P-RSACDIN, is
available for DIN-rail mounting.
3 Ethernet port for controller communication, 10/100 BaseT, Auto MDI/MDI-X
4 RS-232 serial port for file transfers, printing, and controller communication
5 Two USB 2.0 high-speed (type A) host ports for attaching USB devices including mouse,
keyboard, printer, and USB drives that are hot-swappable in nonhazardous locations
6 Reset switch to reset the terminal without having to power on and off
7 Default switch to access maintenance operations such as restoring factory defaults
8 Indicators provide communication and fault status
9 Secure Digital (SD) card slot supporting cat. no. 1784-SDx cards
