Rockwell Automation Publication 2711P-UM006E-EN-P - January 2017 35
Install Terminal Chapter 2
Mount the 700 to 1500
Terminal in a Panel
Mounting clips secure the 700 to 1500 terminals in a panel. The number of clips
varies by terminal size. Tools required for installation include panel cutout tools,
a small, slotted screwdriver, and a torque wrench for tightening the
mounting clips.
Follow these steps to mount the terminal in a panel.
1. Cut an opening in the panel by using the panel cutout template shipped
with the terminal or the cutout dimensions on page 30
.

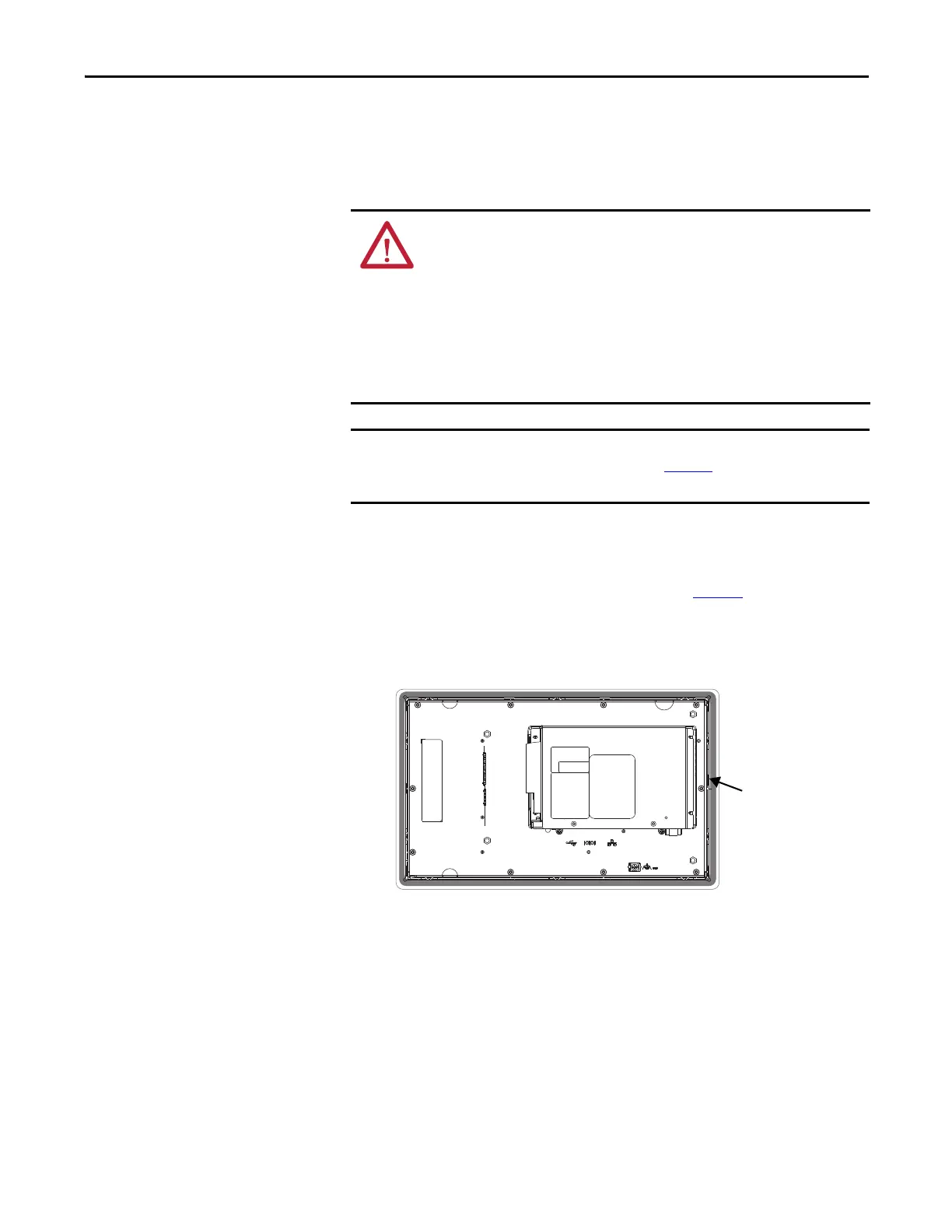

2. Verify the terminal sealing gasket is properly positioned on the terminal.
This gasket forms a compression type seal. Do not use sealing compounds.
Be careful not to pinch the legend strip during installation.
ATTENTION:
Disconnect all electrical power from the panel before making the panel cutout.
Make sure the area around the panel cutout is clear and that the panel is clean of
any debris, oil, or other chemicals.
Make sure metal cuttings do not enter any components already installed in the
panel and that the edges of the cutout have no burrs or sharp edges.
Failure to follow these warnings can result in personal injury or damage to panel
components.
For outdoor installations using a high-bright display module, catalog number
2711P-RDT12H, refer to Appendix B on page 179
for important installation
considerations.
