36 Rockwell Automation Publication 2711P-UM006E-EN-P - January 2017
Chapter 2 Install Terminal

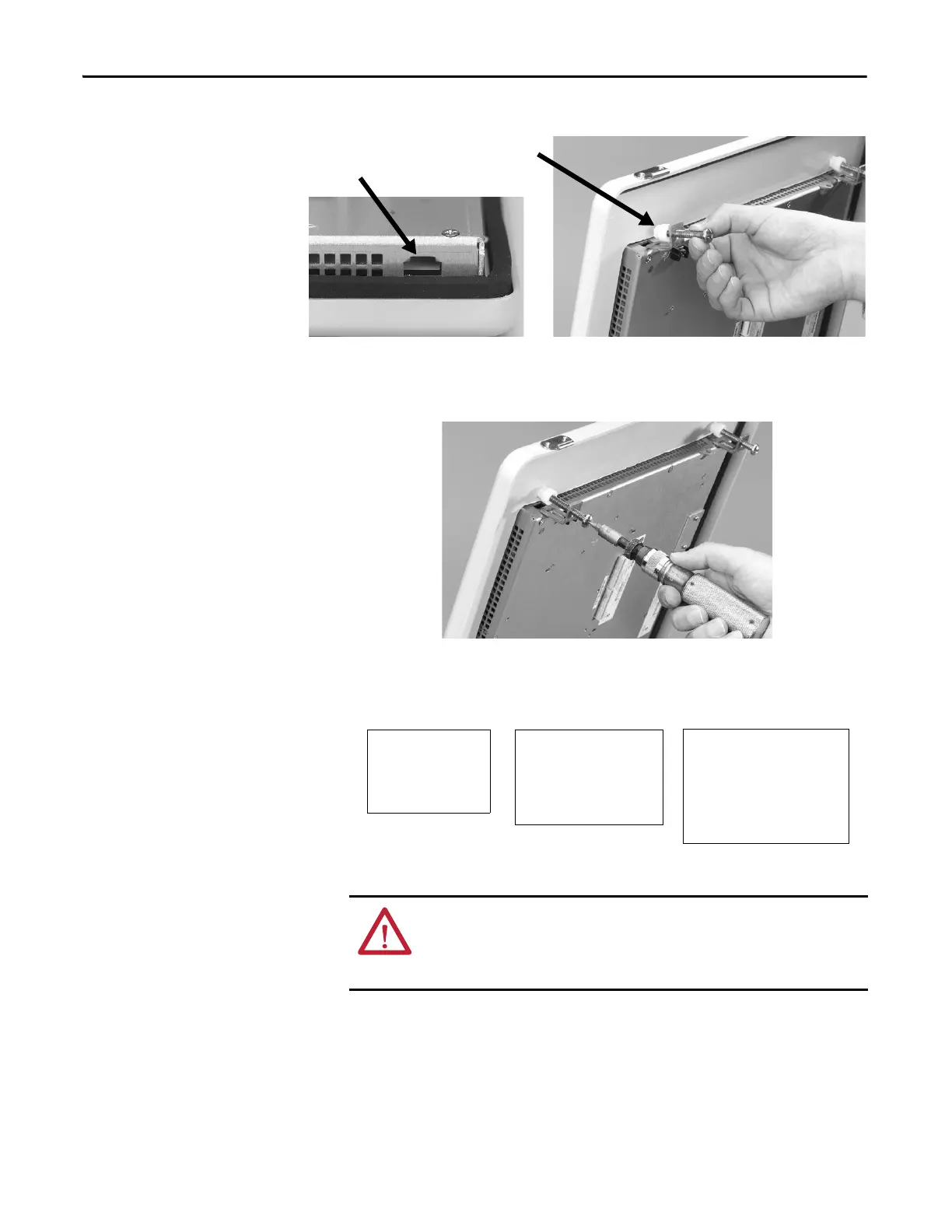

3. Place the terminal in the panel cutout.
4. Slide the ends of the mounting clips into the slots on the terminal.
5. Tighten the mounting clip screws by hand until the gasket seal contacts the
mounting surface uniformly.
6. Tighten the mounting clips screws to a torque of 0.90…1.1 N•m
(8…10 lb•in) by using the specified sequence, making sure not to
overtighten.
Mounting Clip Slot
Mounting Clip
ATTENTION: Tighten the mounting clips to the specified torque to provide a
proper seal and to prevent damage to the product. Allen-Bradley assumes no
responsibility for water or chemical damage to the product or other equipment
within the enclosure because of improper installation.
1
2
3
4
5
6
7
8
Torque Sequence
6 Clips
246
513
Torque Sequence
4 Clips
14
3
2
Torque Sequence
8 Clips
To Next Page
