62 Rockwell Automation Publication 2711P-UM006E-EN-P - January 2017
Chapter 3 Configuration Mode

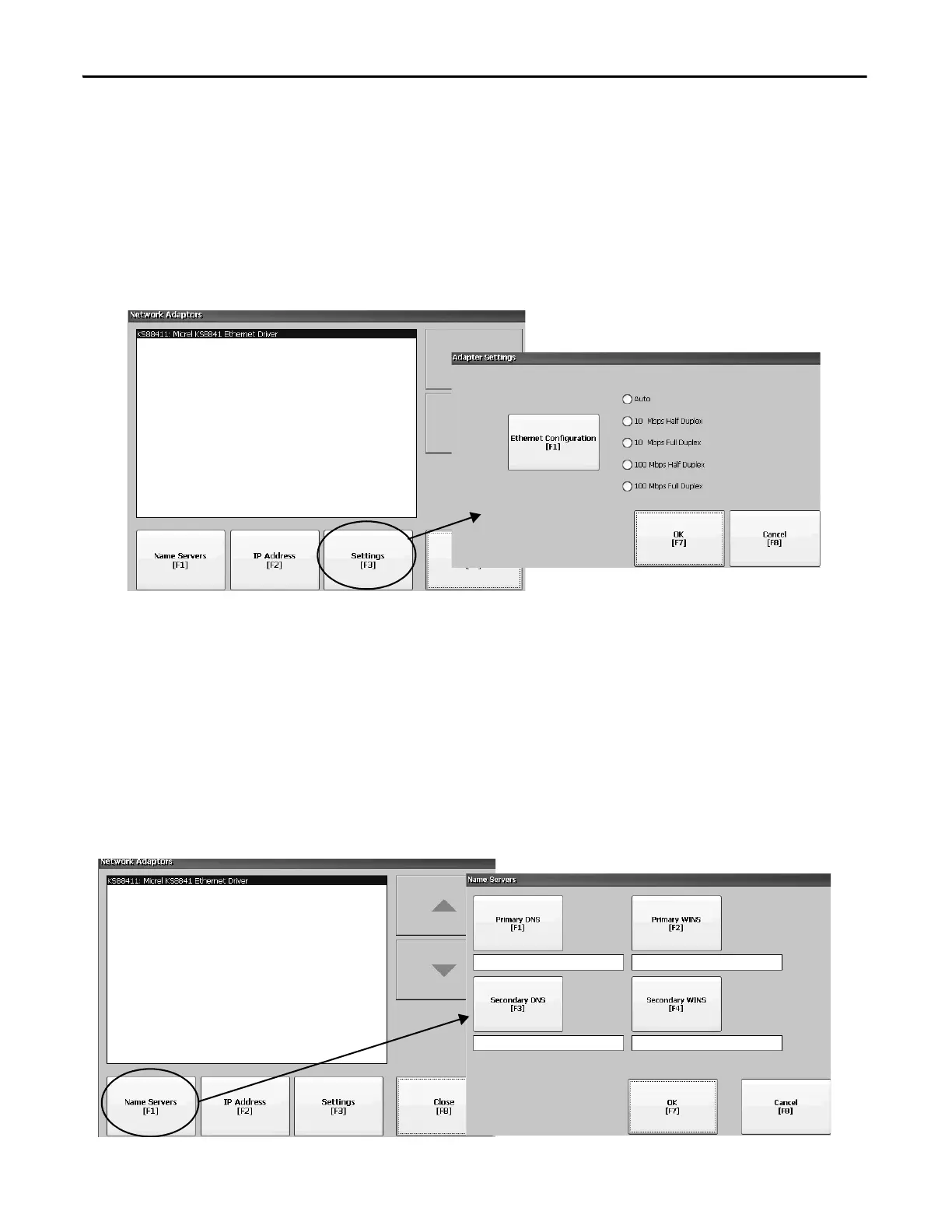

Set the Ethernet Link Speed
You can set the speed and duplex setting of the Ethernet link.
1. Press Terminal Settings>Networks then Communications>Network
Connections>Network Adapters.
2. Press Settings to view or modify the Ethernet link settings.
3. Press Ethernet Configuration to select an Ethernet link option for your
Ethernet connection.
The Auto option automatically senses the link option and speed based on
the terminal connection to a network.
Define Name Server Addresses
You can define name server addresses for the EtherNet/IP network adapter.
These addresses are automatically assigned if DHCP is enabled for the adapter.
Link settings for the 2711P-RN20 Ethernet module cannot be set in FactoryTalk
View Machine Edition Station. The module is set to automatically sense the
settings on the network.
