Programming and Parameters 3-5
Basic Display Group (continued)

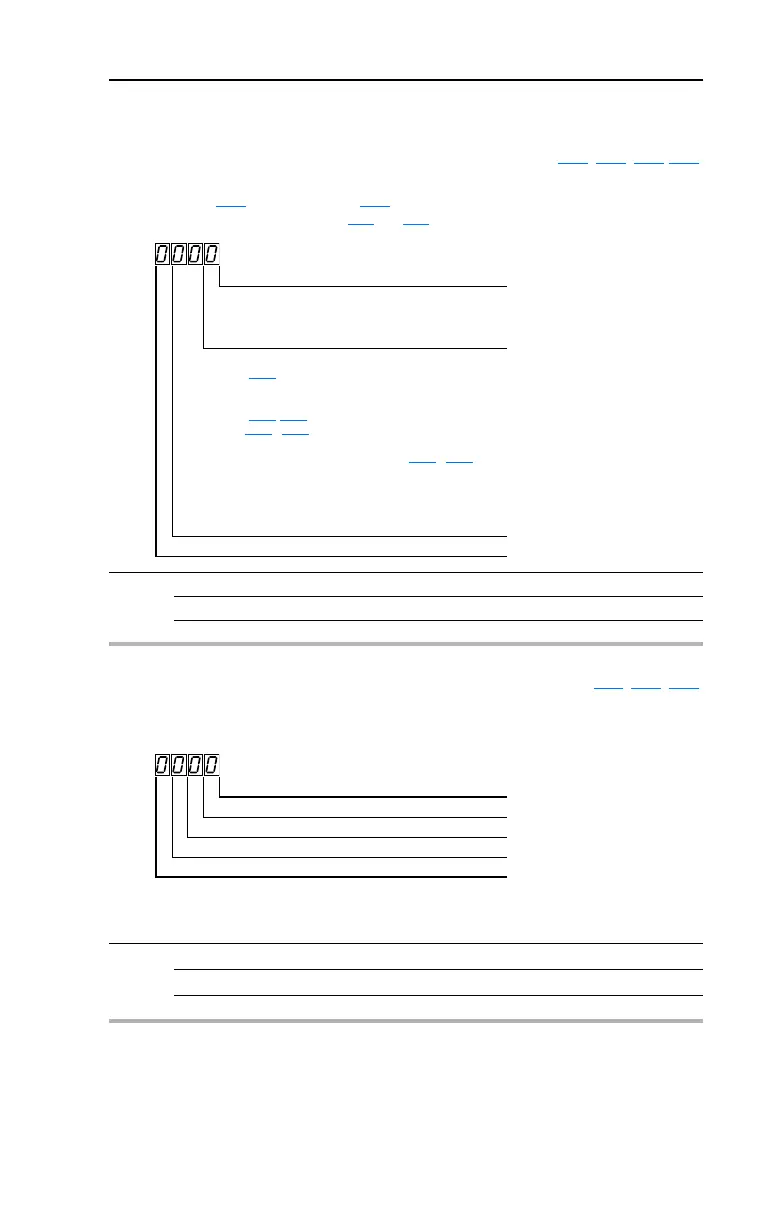

b012 [Control Source] Related Parameter(s): P036, P038, A051-A054
Displays the active source of the Start Command and Speed Command which are normally defined
by the settings of P036
[Start Source] and P038 [Speed Reference] but may be overridden by digital
inputs. Refer to the flowcharts on pages 1-27
and 1-28 for details.
Values Default: Read Only
Min/Max: 0/112
Display: 1
Start Command Digit 1
1 = Terminal Block
2 = Communications
9 = Jogging
Speed Command Digit 3 & 2
01 = A069
[Internal Freq]
02 = 0-10V Input/Remote Potentiometer
03 = 4-20mA Input
04 = A070
-A077 [Preset Freq x]
(A051
- A053 [Digital Inx Sel] must be set to 4)
05 = RS485 (DSI) Port
06 = StepLogic Control (Parameters A140
- A147)
07 = Analog Input Multiply
08 = PID Control
09 = Jogging
10 = Encoder or Pulse Train Reference
11 = Positioning Control
Reserved Digit 4
b013 [Contrl In Status] Related Parameter(s): b002, P034, P035
Status of the control terminal block control inputs.
Important: Actual control commands may come from a source other than the control terminal block.
Values Default: Read Only
Min/Max: 0/1
Display: 1
1 = Input Present, 0 = Input Not Present
Start / Run FWD Input (I/O Terminal 02) Bit 0
Direction / Run REV Input (I/O Terminal 03) Bit 1
Stop Input
(1)
(I/O Terminal 01) Bit 2
(1)
The stop input must be present in order to start the drive.
When this bit is a 1 the drive can be started.
When this bit is a 0 the drive will stop.
Dynamic Brake Transistor On Bit 3
To Next Page
