Rockwell Automation Publication 750-IN100B-EN-P - July 2017 105
Power Wiring Chapter 5

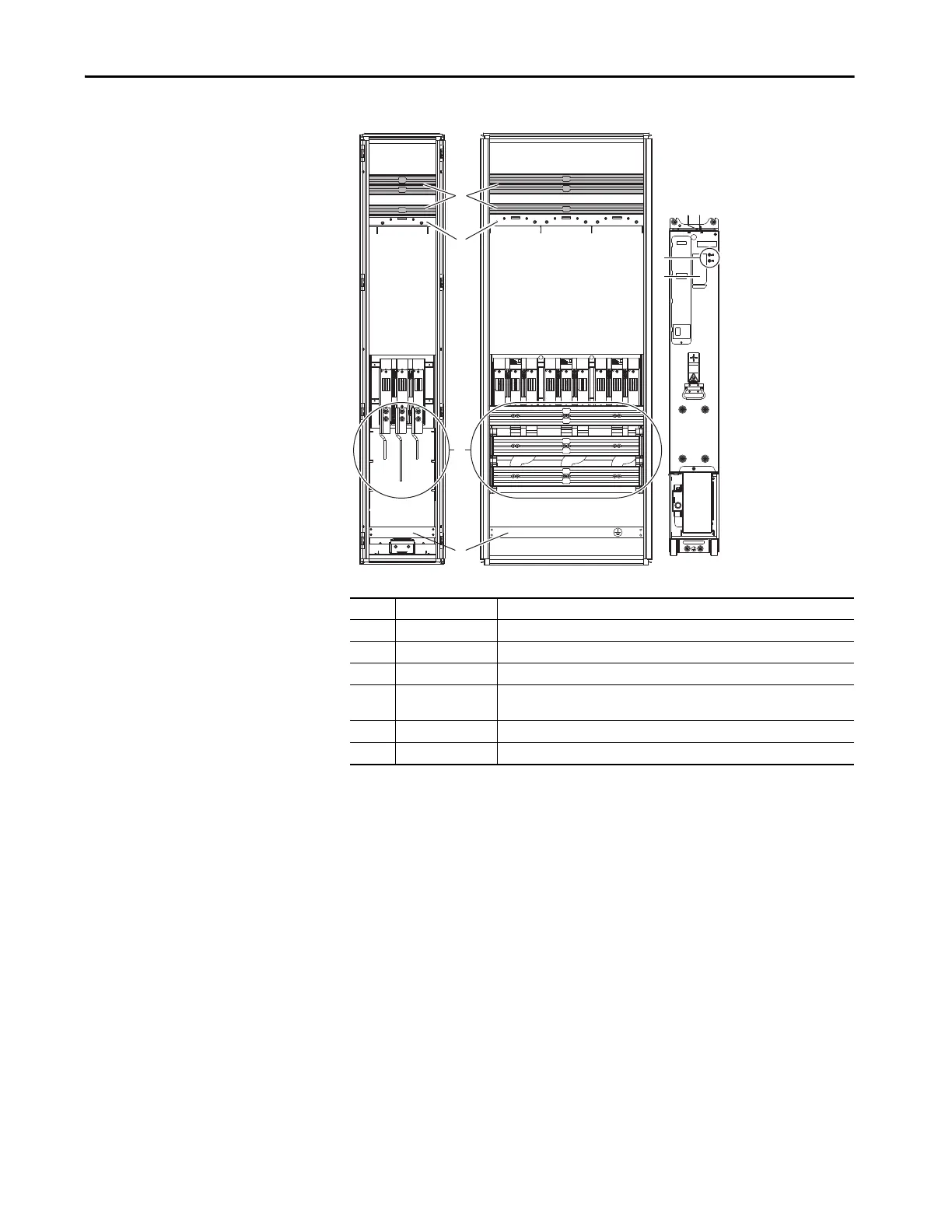

Figure 55 - Frames 8…12 Common Bus Inverters
Item Name Description
1 DC bus DC power supply
2 Control bus Control power supply
3 Power bus U/T1, V/T2, W/T3 motor connections
4 PE grounding bar Terminating point to chassis ground for incoming AC line and motor shield.
PE ground bar clamps, kit number SK-RM-GRNDCLMP-nn, are available.
5 Testpoints DC+, DC- and R/L1, S/L2, T/L3 voltage testpoint sockets
6 Nameplate Power module and LCL filter module nameplate locations
PE
4
3
1
6
5
2
Frame 10 (Layout is typical for Frames 9…12)Frame 8
