Chapter 6 I/O Wiring

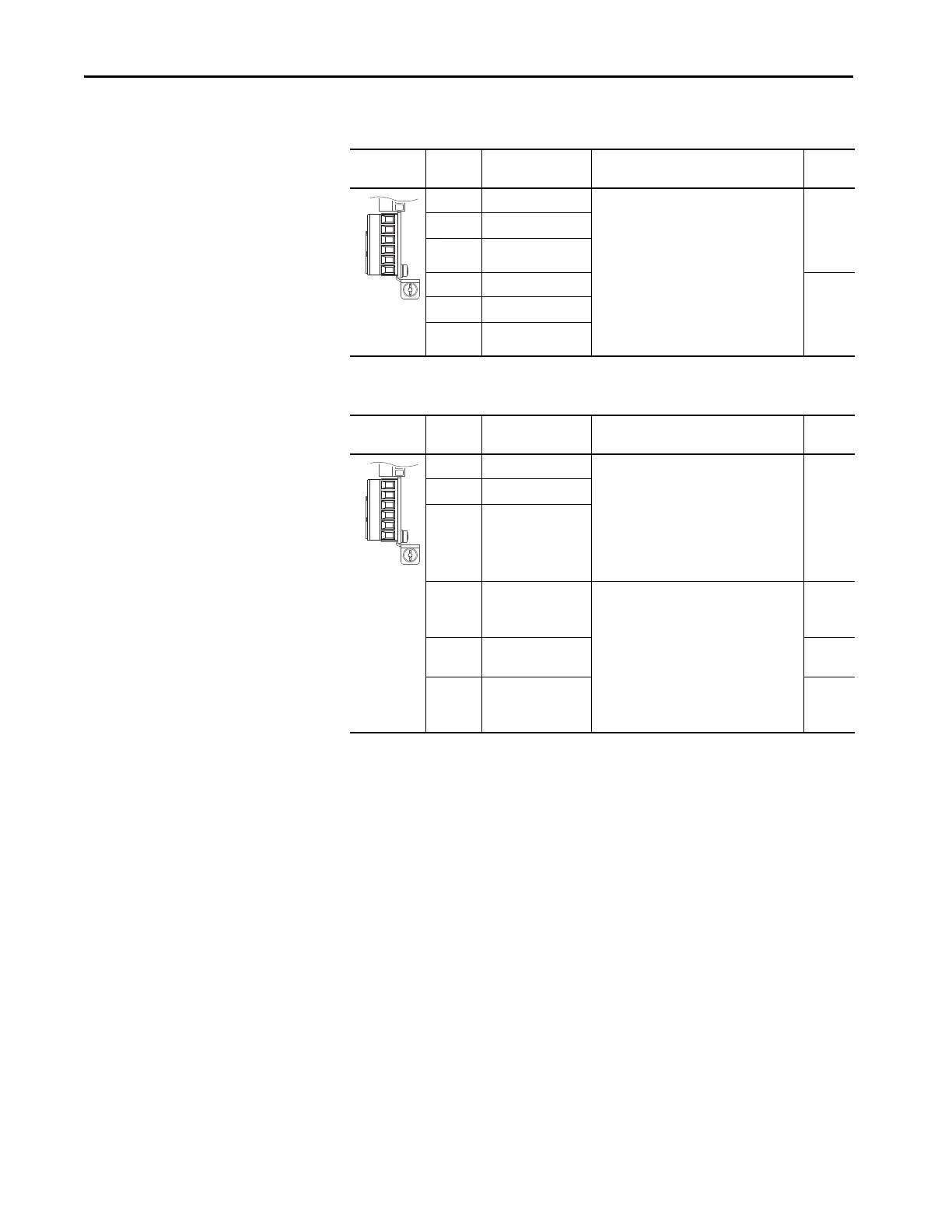

Table 32 - TB2 Terminal Designations (2 Relay Outputs: 2R)
Relay Out Terminal Name Description Related
Param
R0NO Relay 0 N.O. Relay Normally Open contact output:
240V AC, 24V DC, 2 A max.
General Purpose (Inductive) / Resistive
Relay Normally Closed contact output:
240V AC, 24V DC, 2 A max.
Resistive Only
10, 100,
101,
105, 106
on Port
nn
R0C Relay 0 Common
R0NC Relay 0 N.C.
R1NO Relay 1 N.O. 20, 110,
111,
115, 116
on Port
nn
R1C Relay 1 Common
R1NC Relay 1 N.C.
Table 33 - TB2 Terminal Designations (1 Relay and 2 Transistor Outputs: 1R2T)
Relay Out Terminal Name Description Related
Param
R0NO Relay 0 N.O. Relay Normally Open contact output:
240V AC, 24V DC, 2 A max.
General Purpose (Inductive) / Resistive
Relay Normally Closed contact output:
240V AC, 24V DC, 2 A max.
Resistive Only
10, 100,
101,
105, 106
on Port
nn
R0C Relay 0 Common
R0NC Relay 0 N.C.
T0 Transistor Output 0 Transistor output
Rating: 24V DC = 1 A max.
24V DC = 0.4 A Max for U.L.
applications
Resistive
20
on Port
nn
TC Transistor Output
Common
T1 Transistor Output 1 30
on Port
nn
R0NO
R0C
R0NC
R1NO
R1C
R1NC
R0NO
R0C
R0NC
T0
TC
T1
