Rockwell Automation Publication 750-IN100B-EN-P - July 2017 61
Mechanical and Electrical Installation Chapter 4
PowerFlex 755TL and 755TR Drives
This section lists the LCL filter modules, line side converters, and motor side
inverters that you must remove to install the product. Removal of these
components facilitates access to join and anchor cabinets, and for making
electrical interconnections between the cabinets. For instructions on how to
remove these components from the enclosure, see Remove Power Module on
page 73
and Remove LCL Filter Module on page 79.

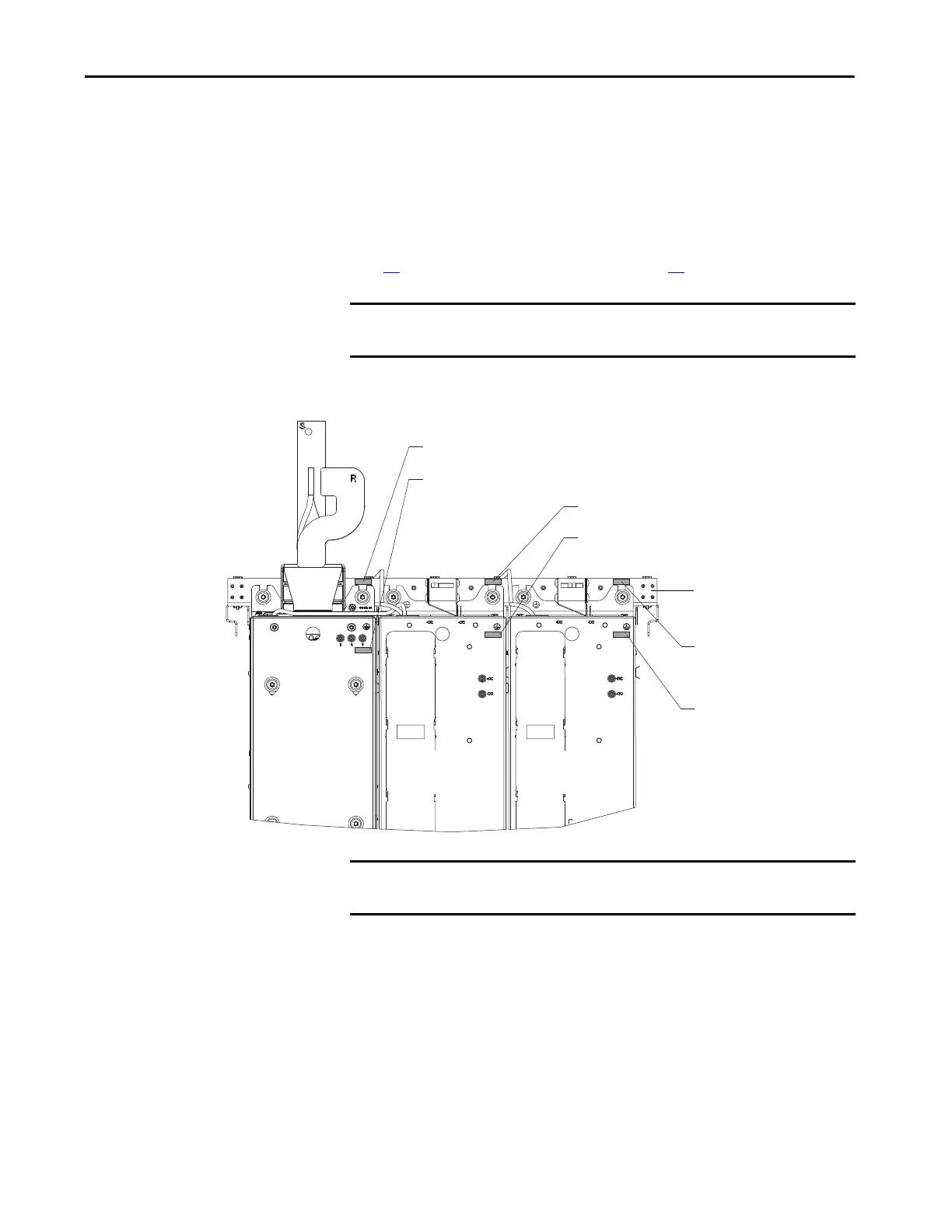

Figure 18 - LCL Filter Module and Power Module Position Labels
IMPORTANT Each module is marked with its unique position number the cabinet. Always
return a module to the position specified.
Frame 8 Drive - LCL Filter and Power Modules Shown
LCL0 Label on Control Bus Assembly
LCL0 Label on LCL Filter Module
L0 Label on Control Bus Assembly
L0 Label on Line Side Power Module
M0 Label on Control Bus Assembly
M0 Label on Motor Side Power Module
LCL Filter Module
Line Side Converter
Power Module
Motor Side Inverter
Power Module
Control Bus Assembly
IMPORTANT The fiber-optic cables are marked to identify the module that they
correspond with.
