Chapter 4 Mechanical and Electrical Installation

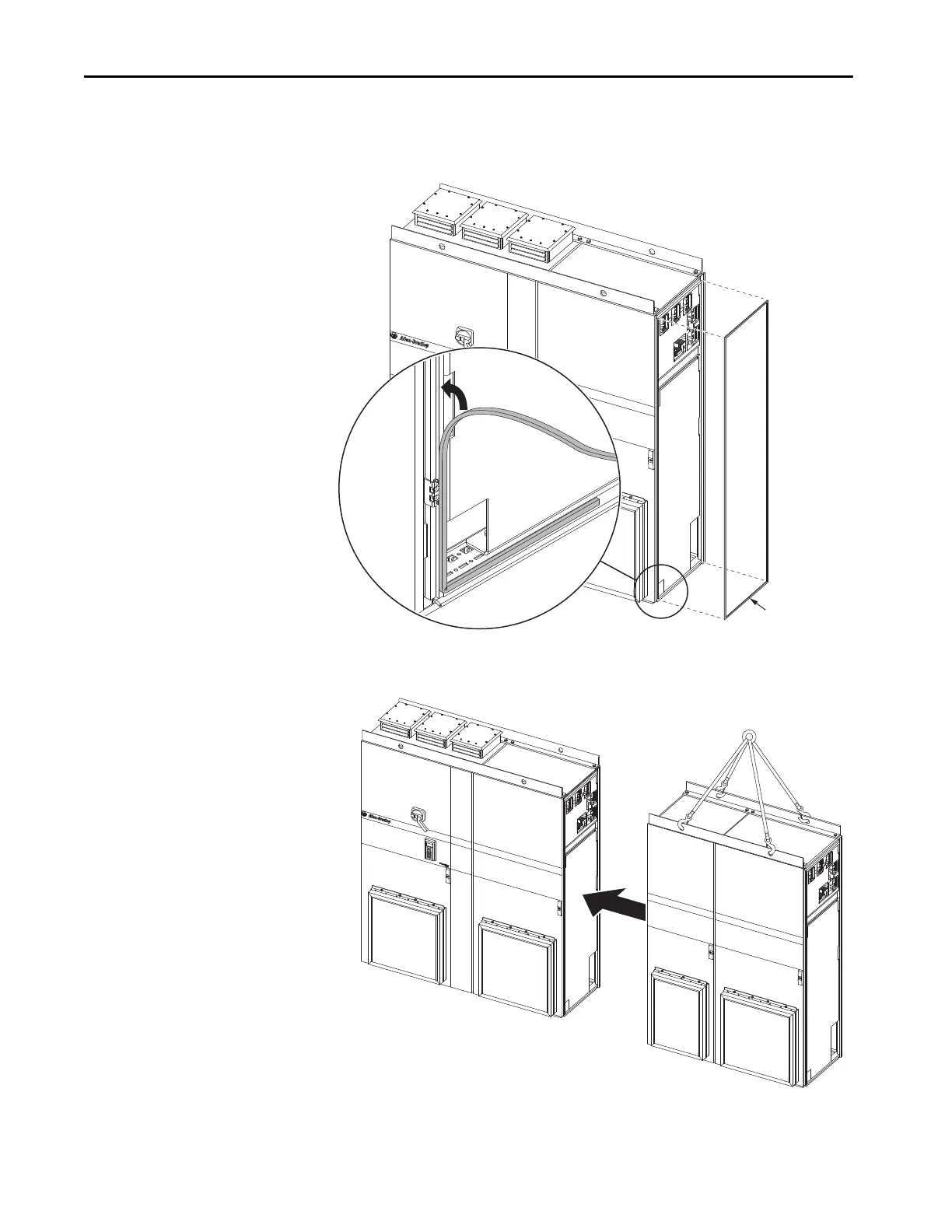

2. Apply the gasket in one continuous strip around the mating surface of
the enclosure. Seam the gasket at the approximate middle of the bottom
of the enclosure.
3. Align the right enclosure assembly (section 2 of n) with the input bay
assembly (section 1 of n) and bring together with the placed input bay.
4. Bring the aligned enclosures together.
