Chapter 4 Mechanical and Electrical Installation

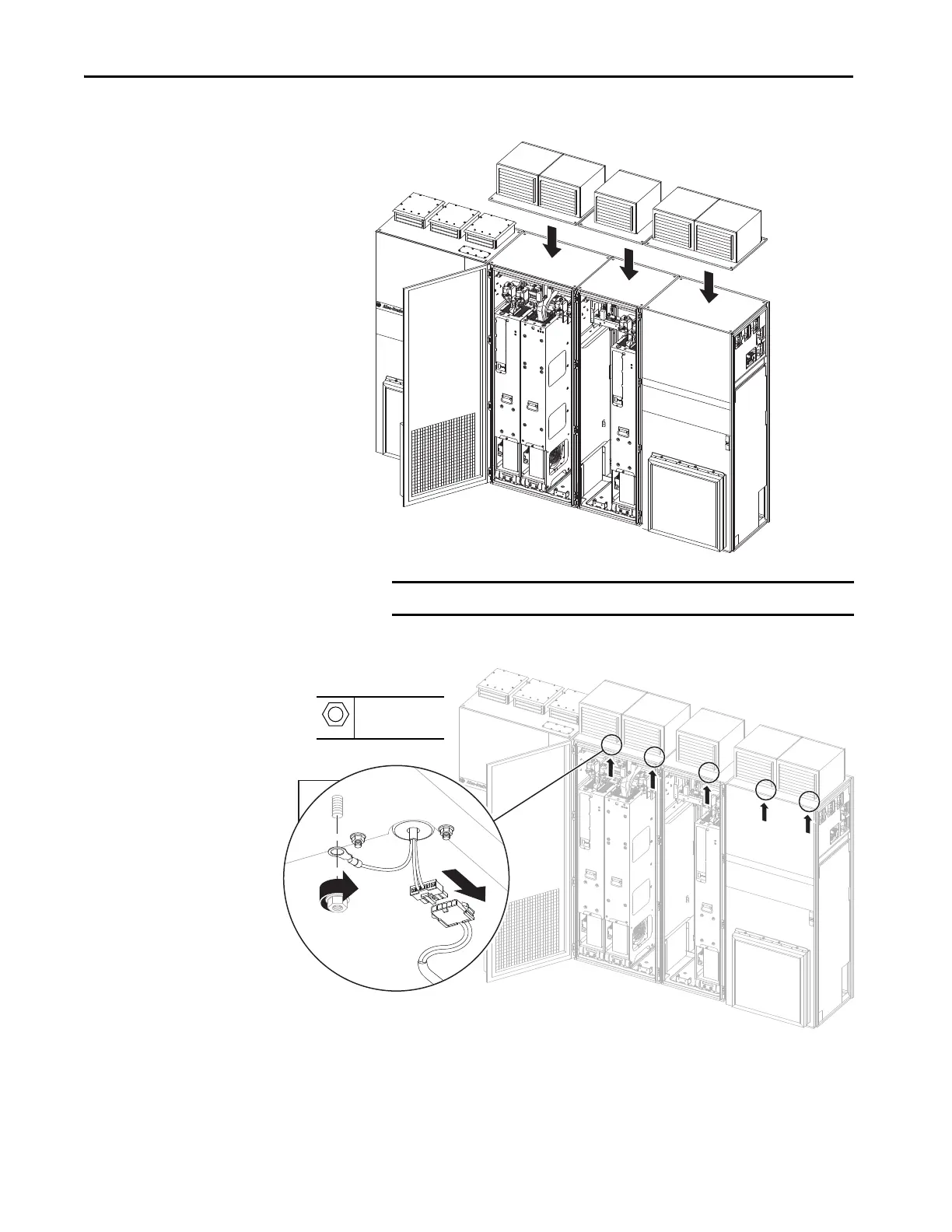

2. Lower the IP54, UL Type 12 roof assemblies on to the enclosures.
3. Connect the fan wiring harnesses.
4. Use the M8 nut provided to make the PE ground connection.
IMPORTANT Use care not to damage the roof assembly gasket material.
M8
13 mm
4.8 N•m (42 lb•in)
PE
P2
P14
