Allen-Bradley PowerFlex 755T Installation Instructions

Rockwell Automation Publication 750-IN100B-EN-P - July 2017 95
Mechanical and Electrical Installation Chapter 4

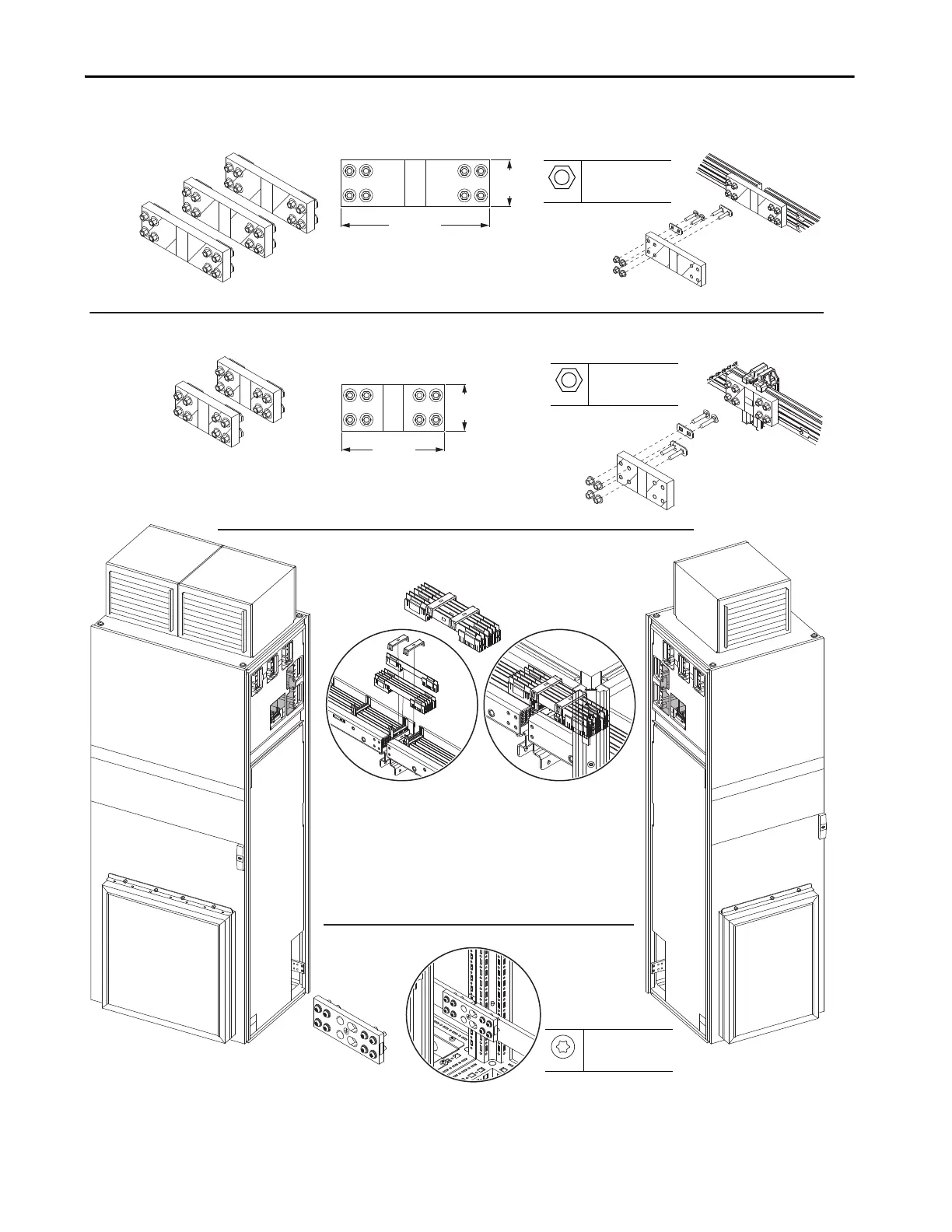

Figure 49 - Splicing Hardware
85 mm
(3.3 in.)
268.5 mm
(10.6 in.)
85 mm
(3.3 in.)
186 mm
(7.3 in.)
AC Bus Bar Splicing Hardware
DC Bus Bar Splicing Hardware
Control Bus Bar Splicing Hardware
PE Ground Bar Splicing Hardware
M10
15 mm
38 N•m (336 lb•in)
M10
15 mm
38 N•m (336 lb•in)
M6
T20
10.2 N•m (90 lb•in)
