186 Setting Up the DH-485 Network

Connecting to the RS-485 Port

DH-485

Peripheral

CPU

Power

USB (DF1)

RS485 (DH485)

RS232 (DH485)

USB to DH485

INTERFACE CONVERTER

USB

DH485

CUS

CAT SER FRN

1747-UIC A X.X

Mfg

XXXX

LISTED IND. CONT. EQ. FOR HAZ.

LOC. A196,

OPERATING TEMP CODE TAG

CLASS 1 GROUPS A, B, C, AND D, DIV. 2

MADE IN INDIA

N223

SLC 5/01, SLC 5/02, SLC 5/03 Processor

(channel 1)

PanelView 300 and later

Operator Interface

Personal Computer with

USB Port

1747-UIC

Interface

1747-AIC

Interface

SLC 500 Fixed Controller

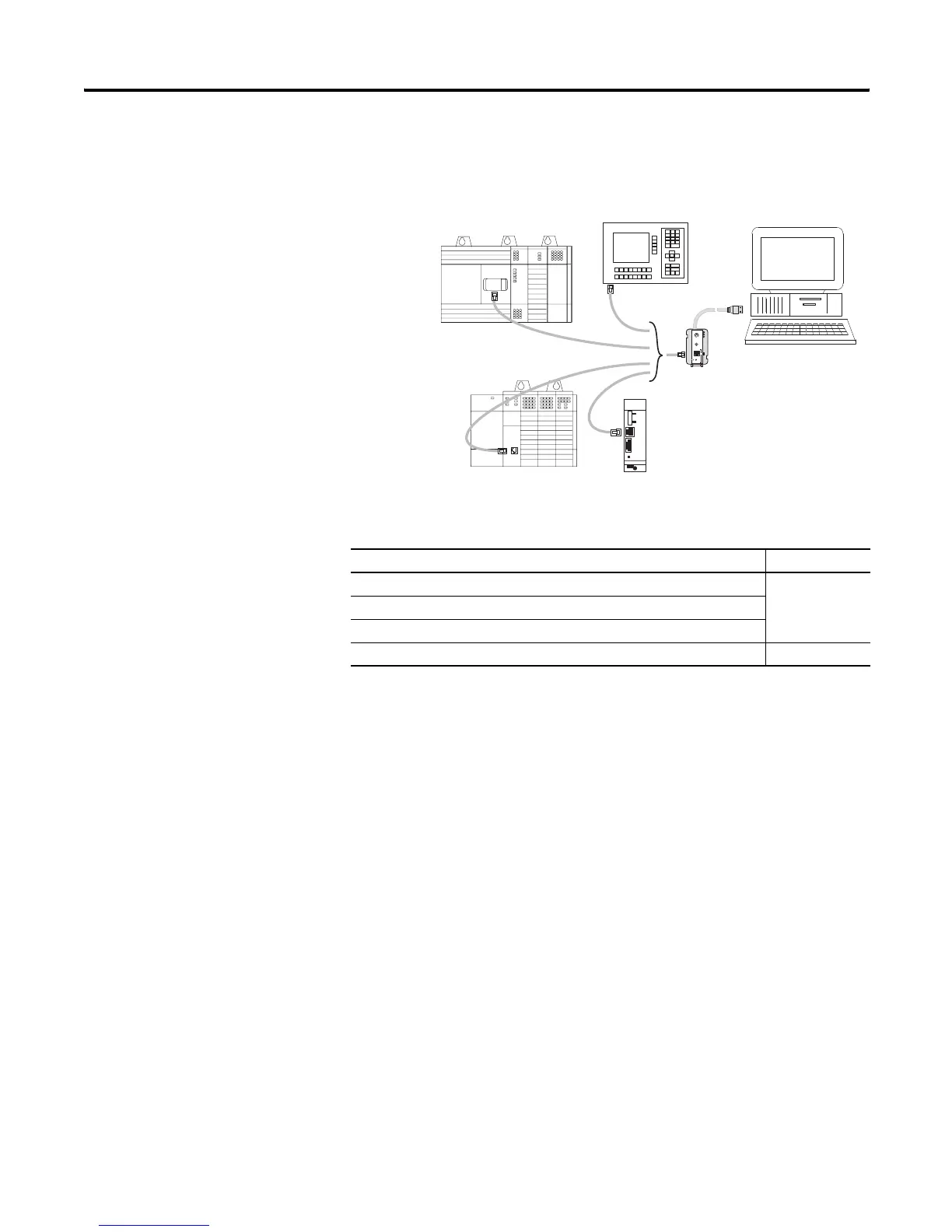

Connect the following DH-485 equipment to the RS-485 port Using cable

SLC 500 fixed controller

1747-C13SLC 5/01, SLC 5/02, and SLC 5/03 (channel 1) processor

1747-AIC Isolated Link Coupler

PanelView 300 and later with DH-485 port operator interface 1747-C10
