80 Mounting Your SLC 500 Control System

AIC+ Advanced Interface Converter (1761-NET-AIC)

DeviceNet Interface (1761-NET-DNI)

Ethernet Interface (1761-NET-ENI)

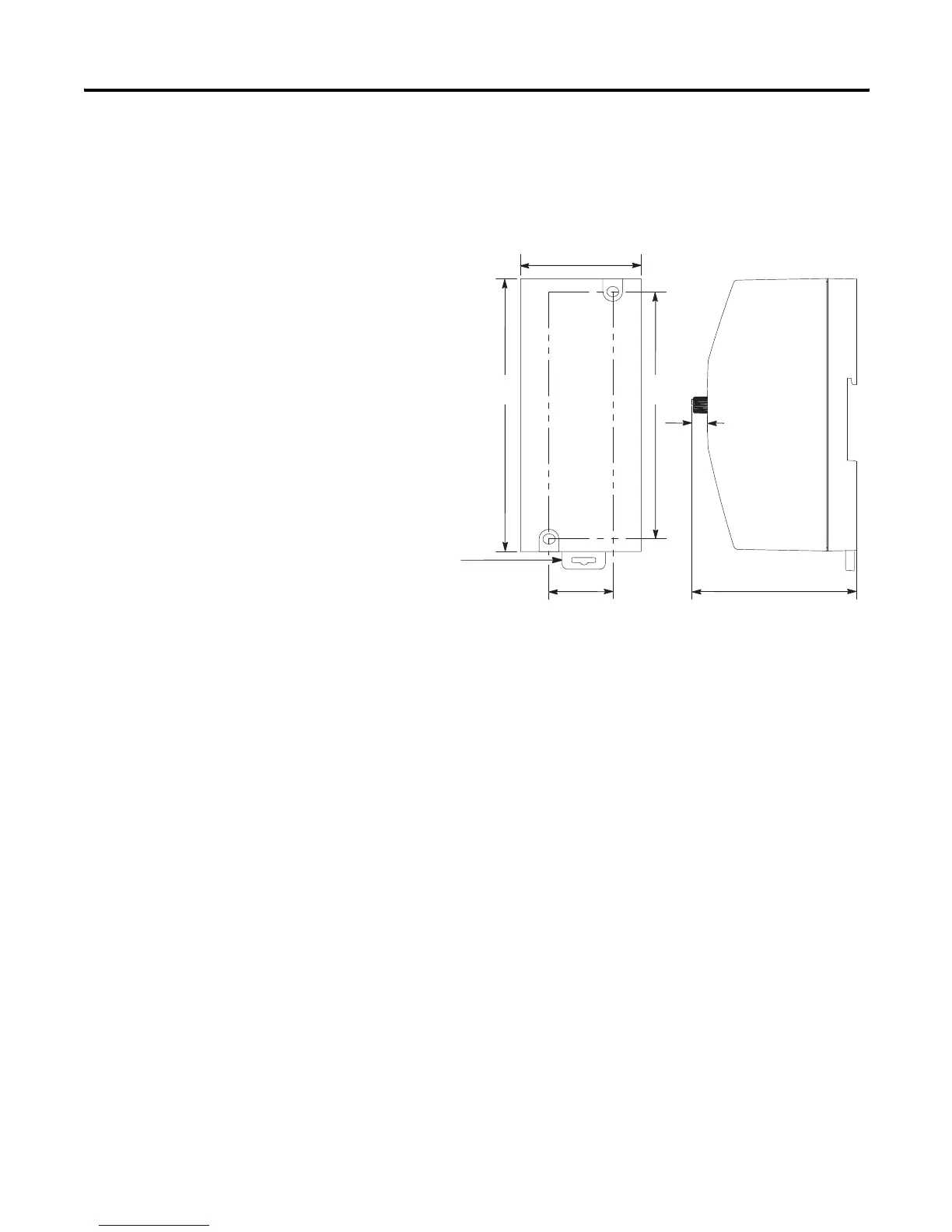

52.07 mm

(2.05 in.)

27.7 mm

(1.09 in.)

118 mm

(4.64 in.)

107 mm

(4.20 in.)

71.4 mm

(2.81 in.)

6.6 mm

(0.26 in.)

Allow 15 mm (0.6 in.)

clearance for DIN rail latch

movement during installation

and removal.
