Allen-Bradley SLC 500

Publication 1747-UM011G-EN-P - June 2008
Mounting Your SLC 500 Control System 79

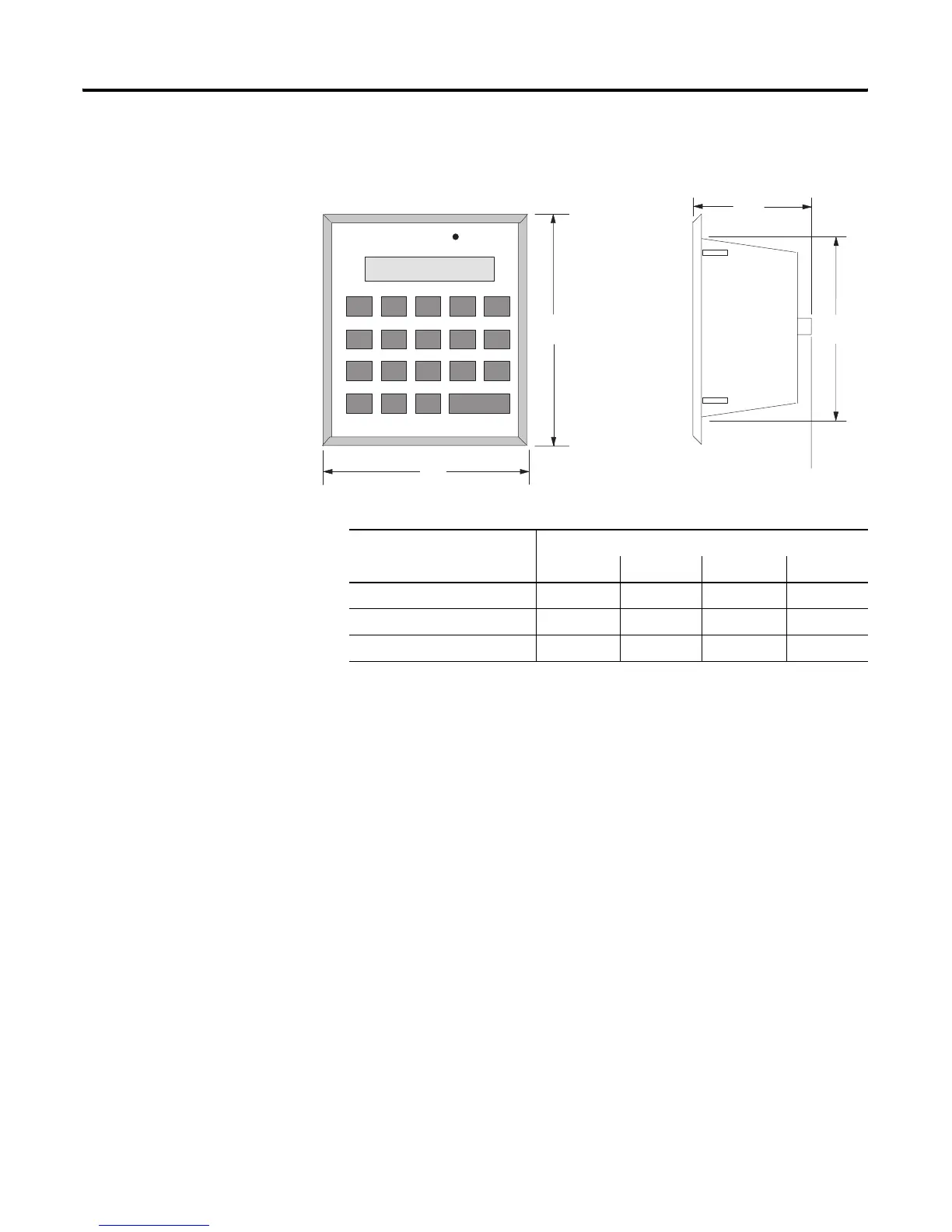

Data Table Access Module (DTAM, DTAM Plus, and DTAM Micro)
C
D
B
A
Front View Right Side View
Data Table Access Module Dimensions in millimeters (inches)
ABCD
DTAM 152 (6.0) 140 (5.5) 69 (2.76) 127 (5.0)
DTAM Plus 215.9 (8.5) 165.1 (6.5) 45.7 (1.8) 193 (7.6)
DTAM Micro 137.2 (5.4 175.3 (6.9) 45.7 (1.8) 99.1 (3.9)
