DeviceNet Network Length
The DeviceNet network lengths are listed below.
Network Length Communication Rate
100 m (328.08 ft) 500 Kbaud
200 m (656.16 ft) 250 Kbaud
500 m (1640.42 ft) 125 Kbaud
KFD
1747-SDN Scanner
SLC 5/03 or later processor
Master/Slave I/O
Peer-to-Peer Messaging

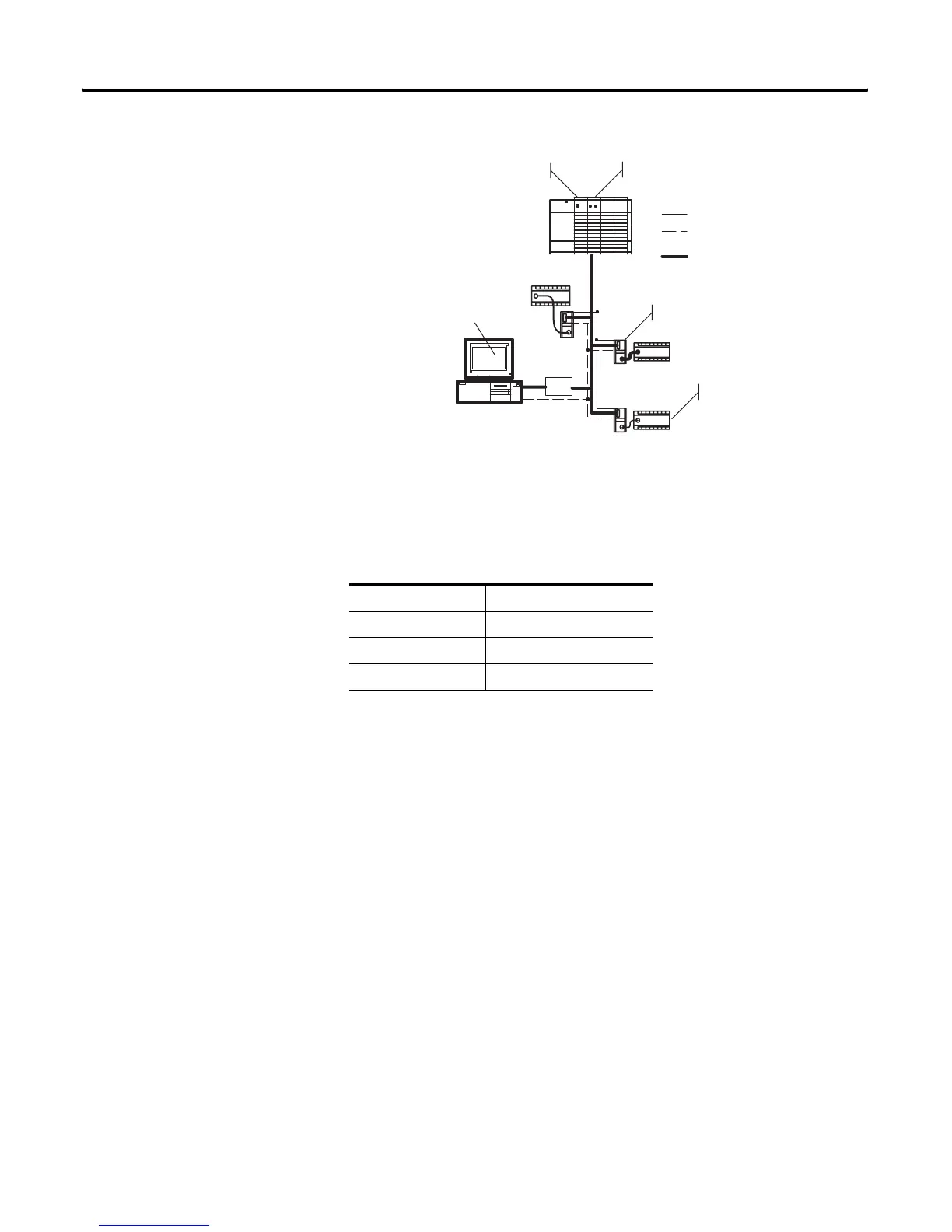

DeviceNet Network
DNI Module
Personal Computer with
RSLogix500 and/or RSNetWorx
for DeviceNet
Node 3
Node 1
Node 2
MicroLogix Controller
