Publication 1747-UM011G-EN-P - June 2008
226 Setting Up the DH+ Network
Typical DH+ Network
Configuration

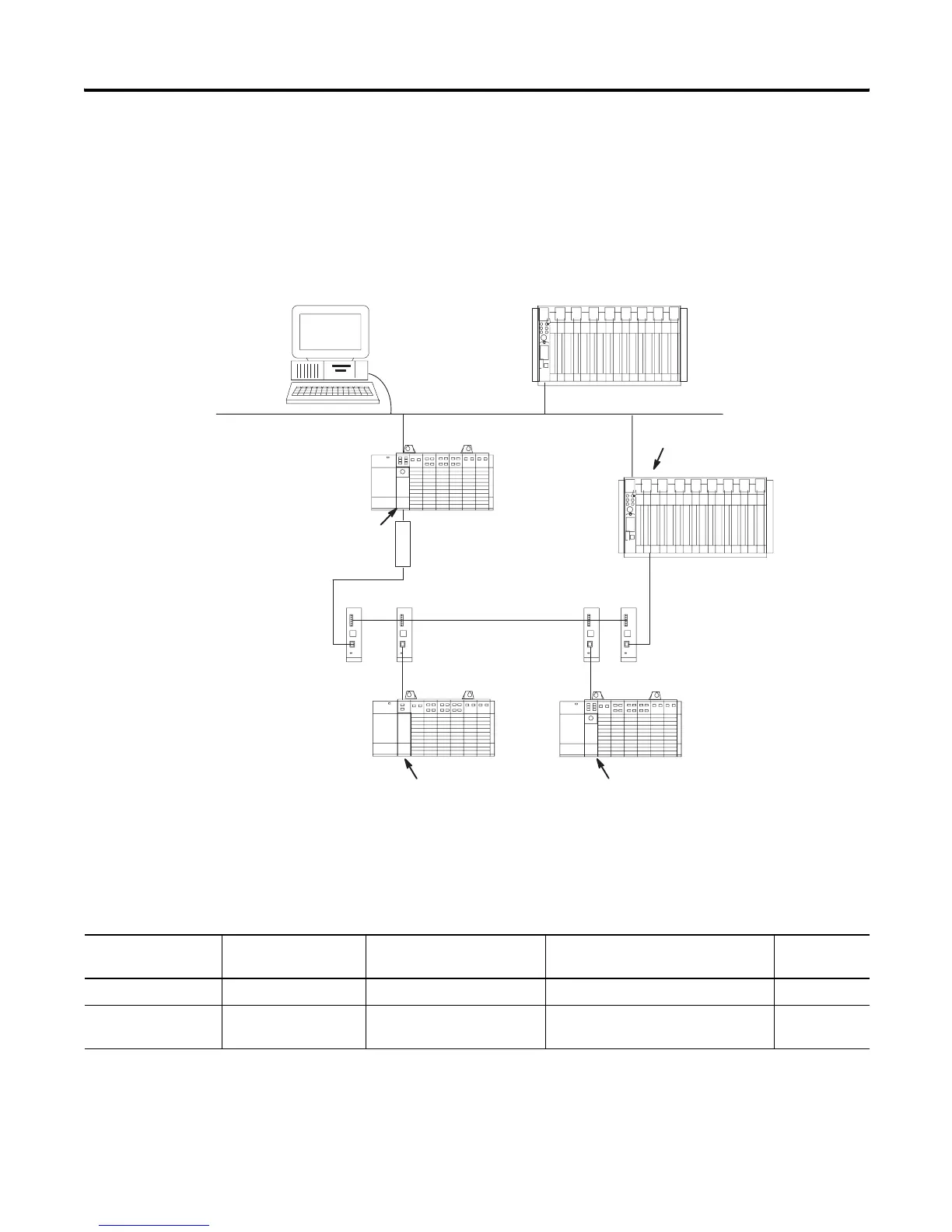

The following figure illustrates a possible configuration for the SLC 5/04
processor on a DH+ network. You can also use an SLC 500, SLC 5/01, SLC
5/02, SLC 5/03, or SLC 5/05 processor in place of the SLC 5/04 processor
on the DH+ network if the 1785-KA5 card is used with a PLC-5 processor.
The DH+ protocol uses factory set timeouts to restart token-passing
communication if the token is lost because of a defective node.
Other devices that use the DH+ network include those in the table below.
APS
DH+ Network
Personal Computer with 1784-KTXD or
1784-PKTX(D) Interface
PLC-5/15 Processor
PLC-5/15 Processor with a 1785-KA5
Card
SLC 5/04 Modular
Controller
1747-NET-AIC
Interface
Converter
SLC 5/02 Modular Controller SLC 5/03 Modular Controller
The PLC-5
Processor and
1785-KA5 Card
are daisy
chained
together.
1747-AIC
Converter
1747-AIC
Converter
1747-AIC
Converter
1747-AIC
Converter
Catalog Number Description Installation Requirement Function Publication
Number
1784-PCMK PCMCIA interface card PCMCIA slot in computer Provides DH+ or DH-485 connection 1784-UM519
1784-PKTX(D) Personal computer
DH+ interface card
PCI bus Provides DH+ or DH-485 connection 1784-UM527
