206 RS-232 Communication Interface
instruction for all channel 0 system mode drivers and for channel 1
(DH-485) on the SLC 5/03 processor.
Either half-duplex or full-duplex modem types can be used for the
master, but half-duplex modems must be used for the slaves
(assuming there is more than one on a multi-drop network).
TIP
Broadcast is not supported for read commands or any remote
messages. Broadcast is also not supported by the SLC 5/04
channel 1 DH+ network or the SLC 5/05 channel 1 Ethernet
network.

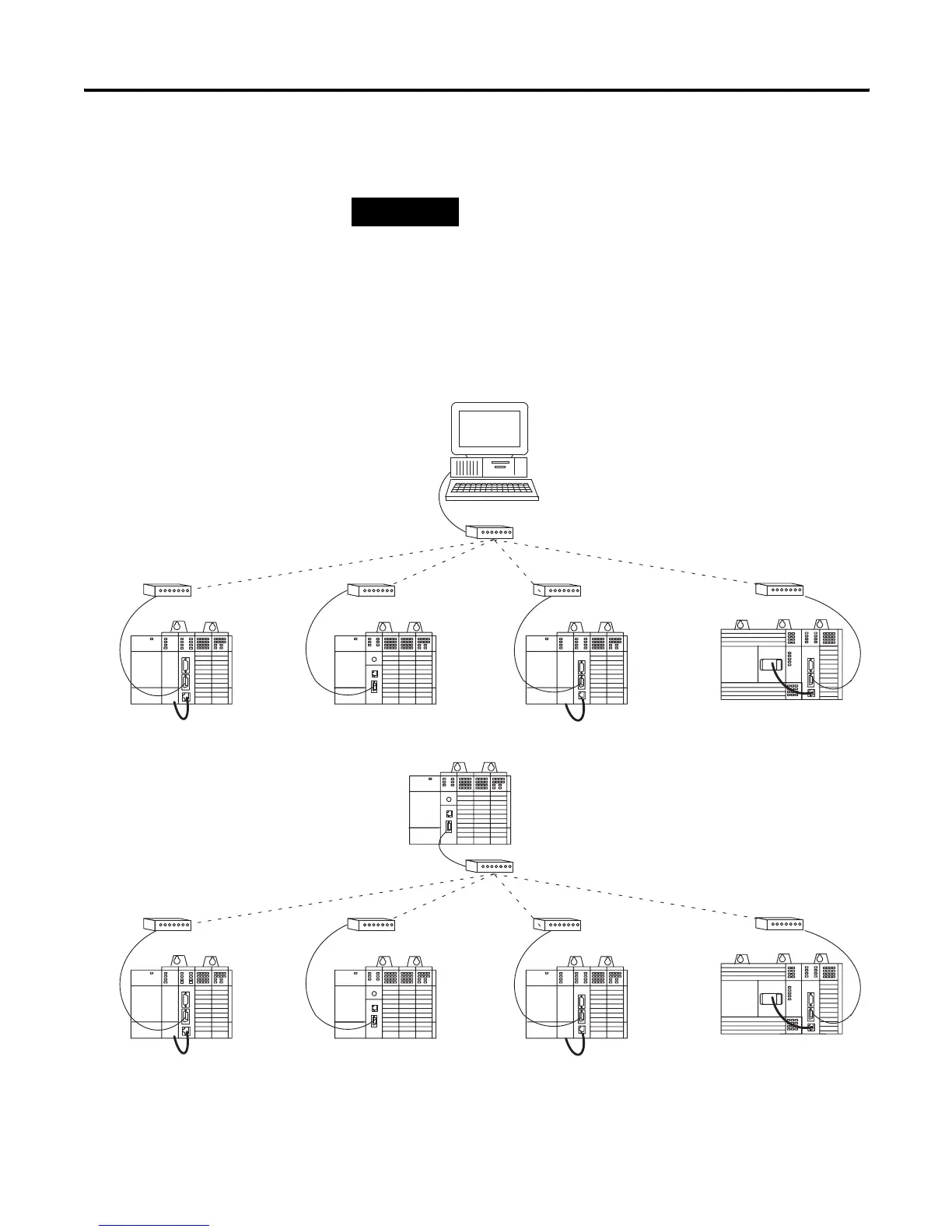

Modular Controller with SLC
5/02 Processor and 1747-KE
Interface Module (slave)
Modular Controller with
SLC 5/03 Processor (slave)
Modular Controller with SLC
5/01 Processor and 1747-KE
Interface Module (slave)
Fixed Controller with 1747-KE
Interface Module (slave)
Personal Computer
Running RSLinx with DF1
Half-duplex Protocol
(master)
RS-232 (DF1 protocol)
Modem Modem Modem Modem
Modem
Modular Controller with SLC
5/02 Processor and 1747-KE
Interface Module (slave)
Modular Controller with
SLC 5/03 Processor (slave)
Modular Controller with SLC
5/01 Processor and 1747-KE
Interface Module (slave)
Fixed Controller with 1747-KE
Interface Module (slave)
Modular Controller with
SLC 5/03 Processor
(master)
RS-232 (DF1 protocol)
Modem Modem Modem Modem
Modem
