Quick Start for Experienced Users 21
6. Install the processor. Reference
Make sure system power is off. Then insert the processor into the 1746 chassis.
Chapter 2
(Selecting Your
Hardware
Components)
Chapter 6
(Installing Your
Hardware
Components)
IMPORTANT
If your processor has a battery — the battery is an option for the SLC 5/01
(1747-L511) processor — make sure it is connected before installing your
processor into the chassis. This provides memory backup for your processor
should the controller power supply fail.
IMPORTANT
The SLC 500 modular processor must be inserted into the left slot (slot 0), as
shown below. Remove the protective label on the power supply after installing
the processor.

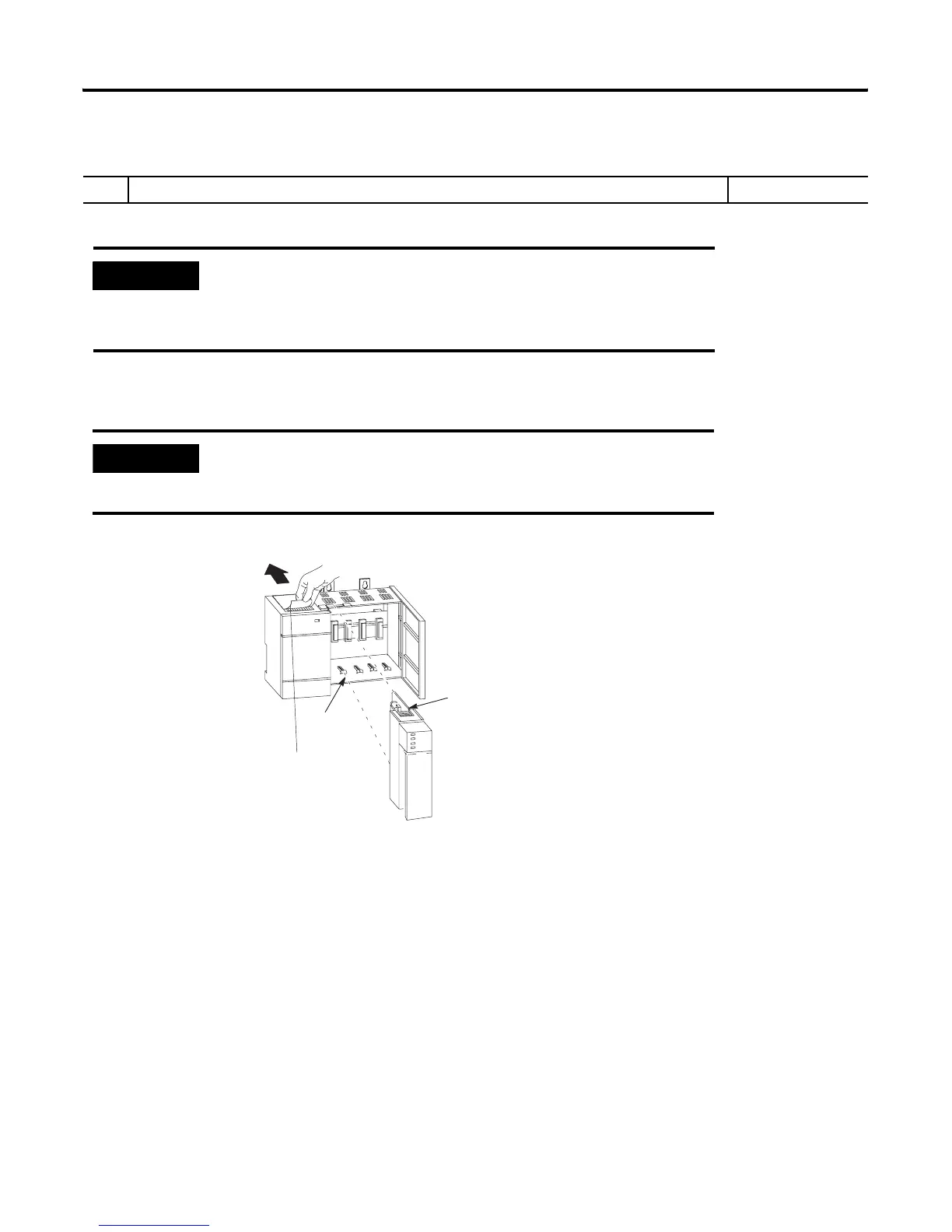

Module Release
Card
Guide
Protective
Label
