Alliance Laundry Systems UT075L - Inputs Outputs Menu

Inputs Outputs Menu
Inputs Outputs
Outputs:
Intputs:
RPM:25 Moisture:30%
DM FM FW RV HT EA IR
DR LD AFS FCRSFCLS CL SL1 SL2 IL
RS DIP1 DIP2 DIP3 DIP4 DIP5 DIP6 DIP7 DIP8
30:29
Temp:180 F
6
5
4
3
2
1
TMB1425R_SVG1
1. Outputs:
2. Inputs:
3. Moisture: 30%
4. RMP: 25
5. Inputs Outputs
6. Temp: 180 F

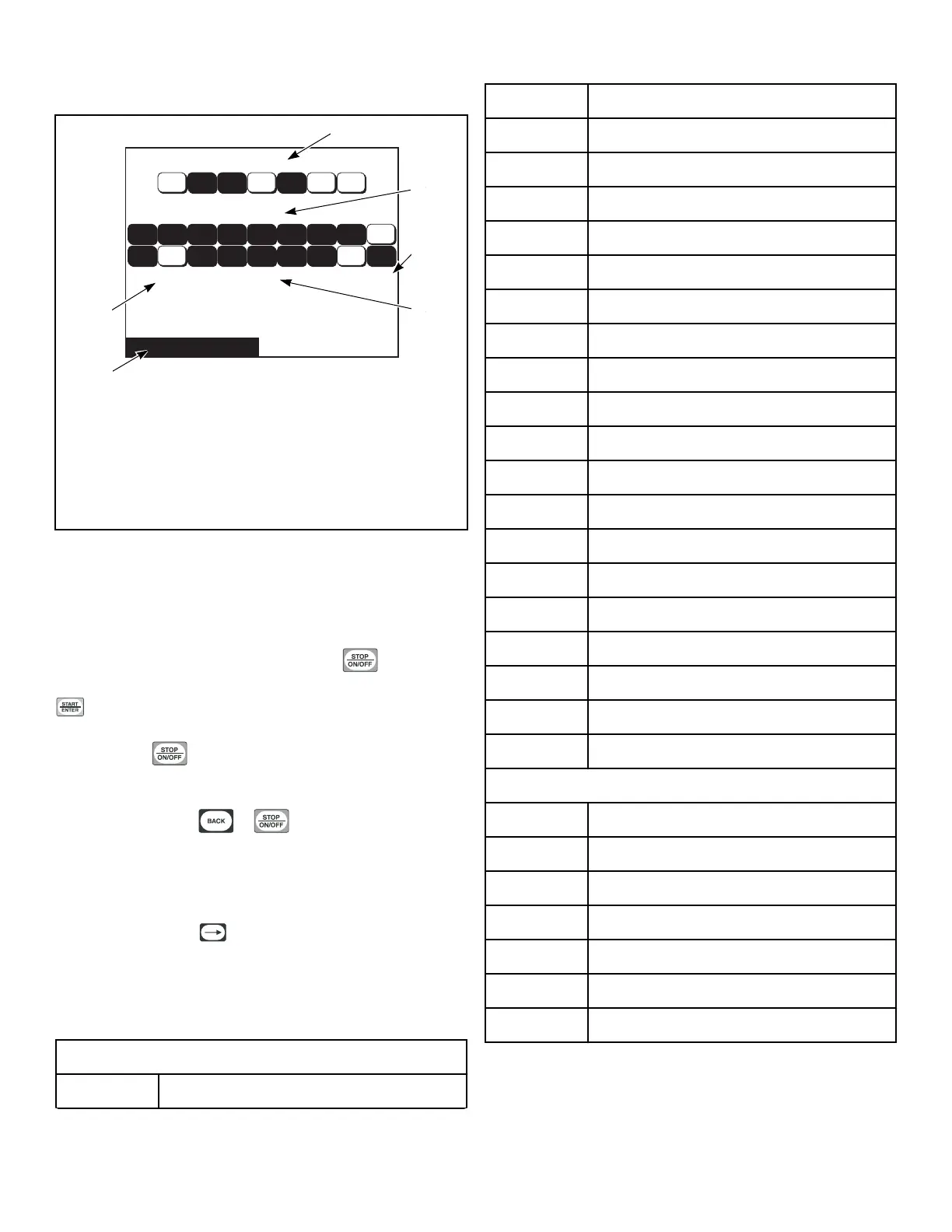

Figure 44
When the Inputs Outputs Menu is accessed through the Diagnos-
tic Menu, the user can manually turn on outputs. The user can
scroll through the outputs using any of the arrow keys, the cursor
is indicated by flashing the active output on the screen. The user
must “setup” the outputs to be turned on. The keypad is
used to select individual outputs to be turned on or off. After the
keypad is pressed the control will turn the selected outputs
on and display the text “RUNNING”. The outputs cannot be se-
lected until the keypad is pressed. The text “RUNNING” is
no longer displayed. The screen will still show the selected out-
puts on the screen and the user can again select outputs to be
turned on or off. If the or keypad is pressed at any
time during this test, the control will turn off all outputs if the test
is running or return to the previous screen if the test is not run-
ning.
If the Inputs Outputs Menu is accessed through the Run Diagnos-
tic Menu (pressing the keypad during a running cycle) the
menu shows only what is turned on and off as the cycle runs. Re-
fer to
Figure 44 .
Abbreviations for the Inputs and Outputs are defined in the fol-
lowing table:
Inputs
DR Loading Door
Table continues...
LD Lint Door
AFS Airflow Switch
FCRS Fan Motor Contactor Switch
FCLS Fan Motor Centrifugal Switch
CL Cabinet High Limit
SL1 Store 1 High Limit
SL2 Store 2 High Limit
IL Ignition Lockout
RS Rotation Sensor
DIP1 Dip Switch 1
DIP2 Dip Switch 2
DIP3 Dip Switch 3
DIP4 Dip Switch 4
DIP5 Dip Switch 5
DIP6 Dip Switch 6
DIP7 Dip Switch 7
DIP8 Dip Switch 8
Temp Temperature
RPM Rotations per Minute
Moisture Moisture Level
Outputs
DM Damper Motor
FM Fan Motor
FW Forward Contactor
RV Reverse Contactor
HT Heater
EA External Alarm
IR Ignition Reset
Diagnostics
©
