Chapter 1: Product Description
15
The AT-GS910/8E switch has an external power supply with a single DC
power supply socket on the rear panel as shown in Figure 8.
x

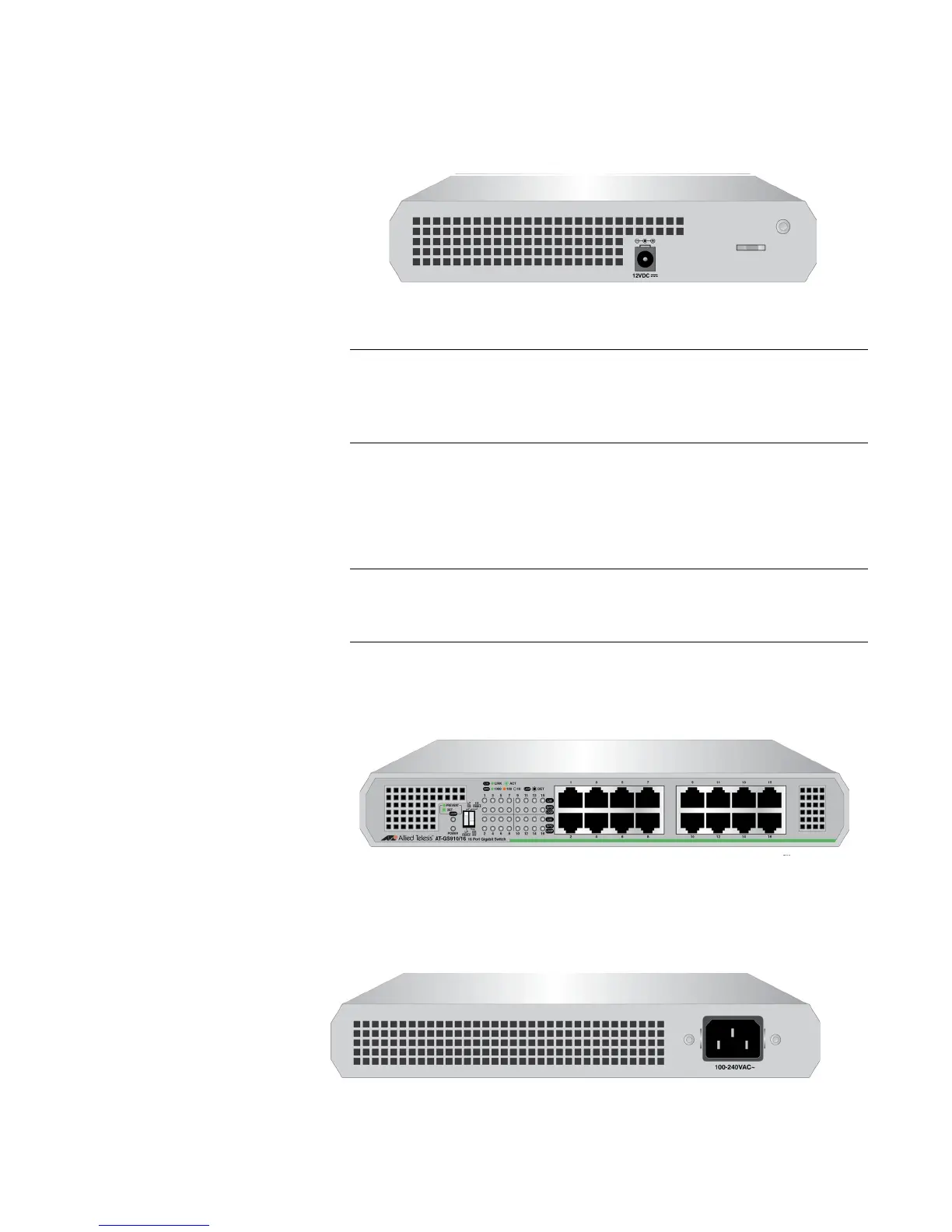

Figure 8. AT-GS910/8E Rear Panel
Note
The AT-GS910/8E power receptacle has a twist-and-lock barrel
which is locked by turning the power cord clockwise one-quarter
turn.
The AT-GS910/8E switch can be installed on a desktop, mounted on a
wall, or mounted in a 19-inch equipment rack. To mount the switch on a
wall, use the AT-BRKT-J23 wall mount brackets. To install the switch in an
equipment rack, use the AT-RKMT-J08 rack mount brackets.
Note
The AT-BRKT-J23 and AT-RKMT-J08 brackets are not included in
the shipping box. You must purchase them separately.
AT-GS910/16
Switch
The AT-GS910/16 switch has 16 10/100/1000Base-TX twisted pair ports
on the front panel as shown in Figure 9.
x
Figure 9. AT-GS910/16 Front Panel
The AT-GS910/16 switch has an internal power supply with a single AC
power supply socket on the rear panel as shown in Figure 10.
x
Figure 10. AT-GS910/16 Rear Panel
