GS910 Series Gigabit Ehternet Unmanaged Switch Installation and User’s Guide
16
The AT-GS910/16 switch can be installed on a desktop, mounted on a
wall, or mounted in a 19-inch equipment rack. To mount the switch on the
wall or in an equipment rack, use the brackets that come with the switch.
AT-GS910/24
Switch
The AT-GS910/24 switch has 24 10/100/1000Base-TX twisted pair ports
on the front panel as shown in Figure 11.
x

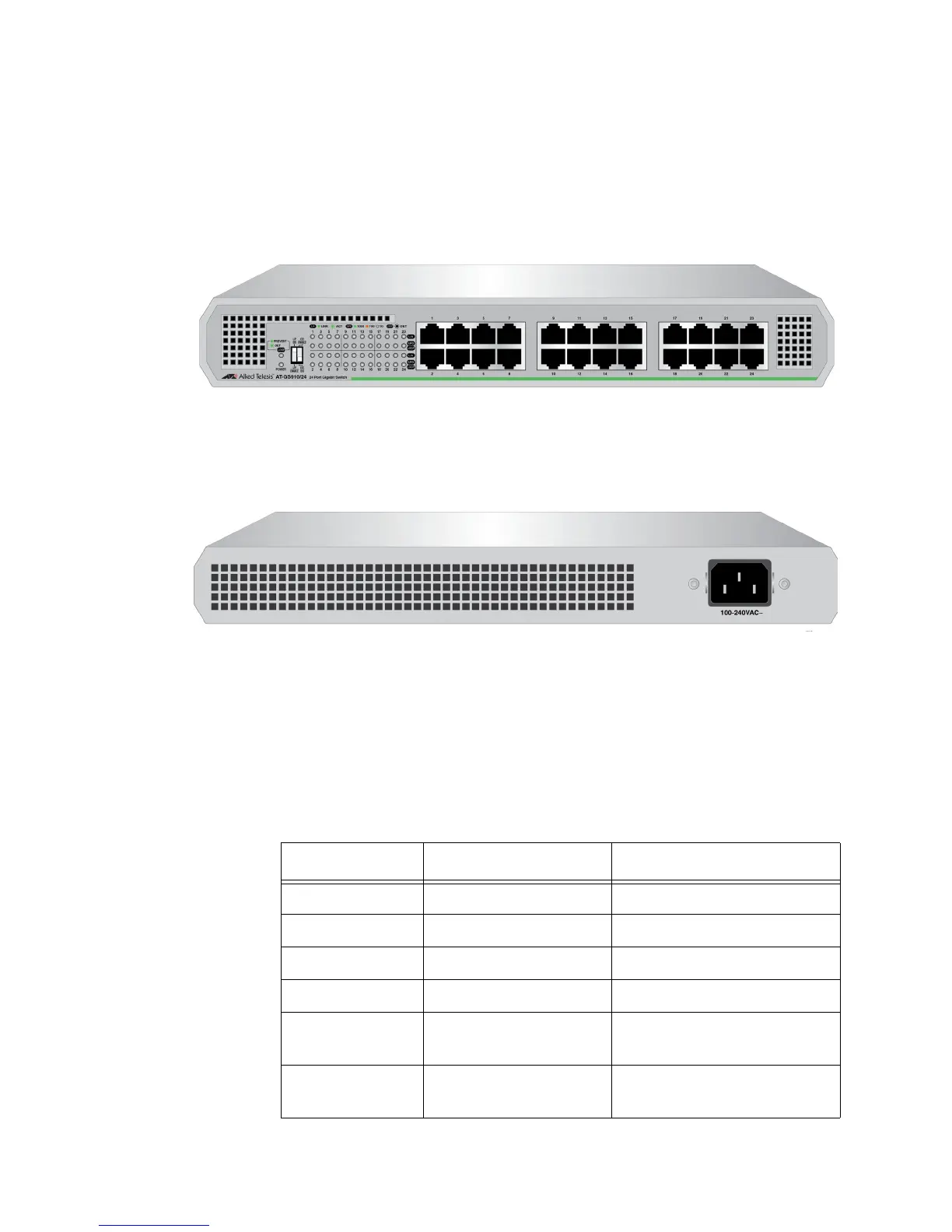

Figure 11. AT-GS910/24 Front Panel
The AT-GS910/24 switch has an internal power supply with a single AC
power supply socket on the rear panel as shown in Figure 12.
x
Figure 12. AT-GS910/24 Rear Panel
The AT-GS910/24 switch can be installed on a desktop, mounted on a
wall, or mounted in a 19-inch equipment rack. To mount the switch on the
wall or in an equipment rack, use the brackets that come with the switch.
Wall and Rack
Mount Brackets
Table 1 shows brackets options for the GS910 series switches.
Table 1. Wall and Rack Mount Brackets
Model Wall Mount Rack Mount
AT-GS910/5 AT-BRKT-J23 N/A
AT-GS910/5E N/A N/A
AT-GS910/8 AT-BRKT-J23 AT-RKMT-J08
AT-GS910/8 AT-BRKT-J23 AT-RKMT-J08
AT-GS910/16 The brackets in the
shipping box
The brackets in the
shipping box
AT-GS910/24 The brackets in the
shipping box
The brackets in the
shipping box
