Chapter 4: Installation Using the AT-RKMT-J08 Rack Mount Kit
61
Installing a Switch Using the AT-RKMT-J08 Rack Mount Kit
This section shows you steps to install a switch in an equipment rack using
the AT-RKMT-J08 kit.
What to Prepare Before installing a switch to an equipment rack, make sure that the
following items are ready.
An AT-RKMT-J08 rack mount kit
The switch’s power cord
19-inch equipment rack
Four screws for the equipment rack
Phillips-head screw driver
Installing a
Switch Using the
Rack Mount Kit
To install a switch in a rack using the AT-RKMT-J08 rack mount kit,
perform the following procedure:
1. Place all the items from the packaging on a work table.
2. Attach the handle to the short bracket with M3x6mm screws using a
Phillip-head screw driver as shown in Figure 34.

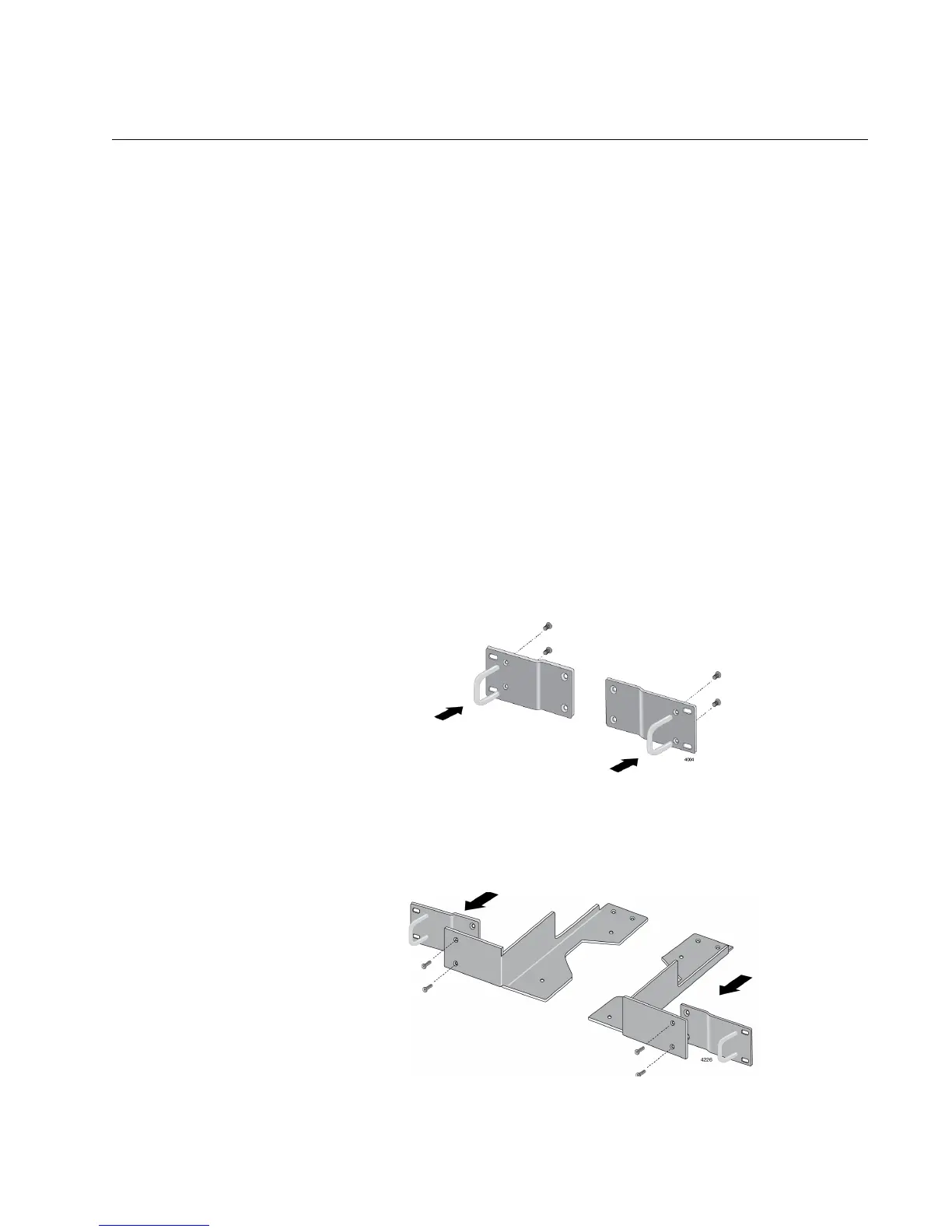

Figure 34. Attaching Handles to Brackets
3. Attach the short bracket and handle to the long bracket with M4x6mm
screws using a Phillip-head screw driver as shown in Figure 35.
Figure 35. Attaching Brackets to Plates
