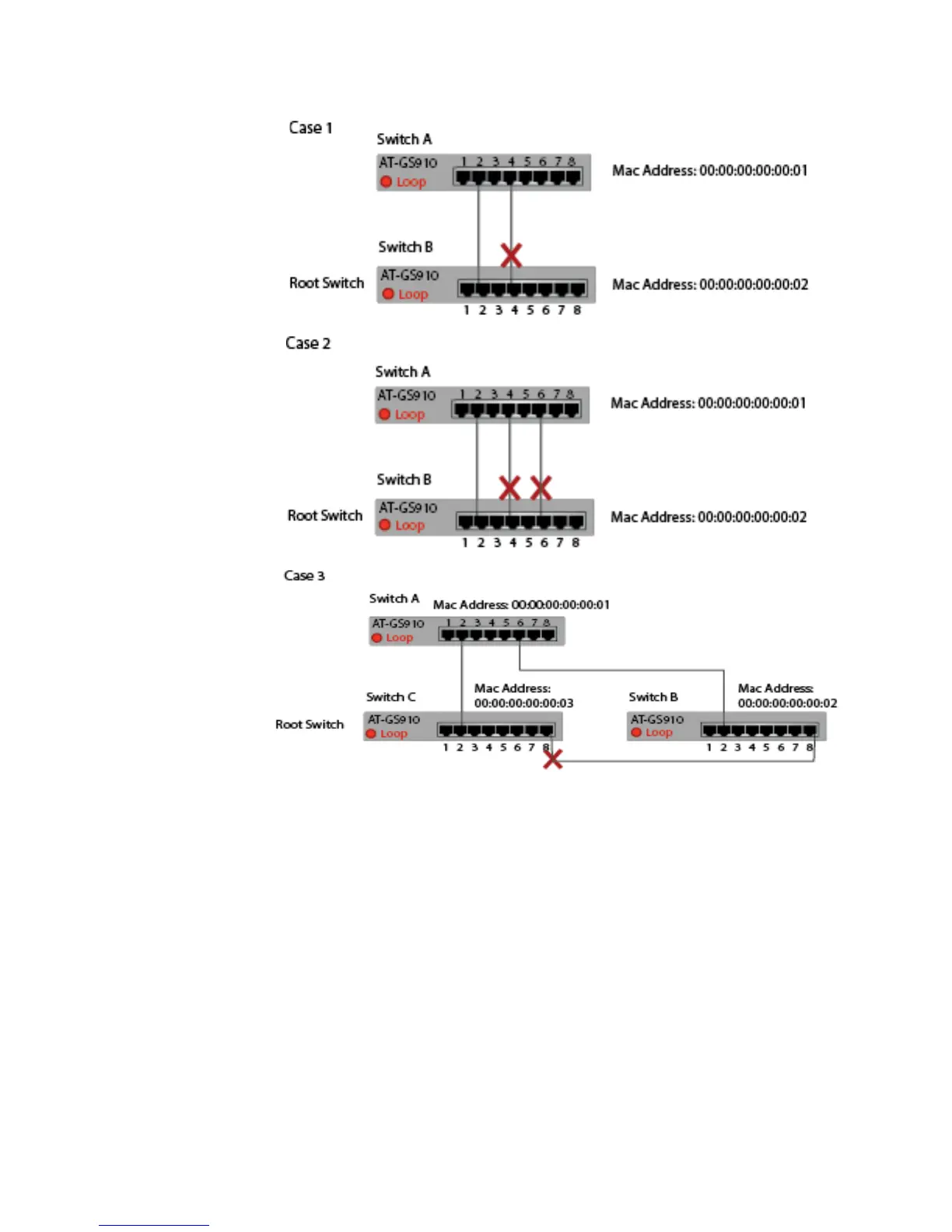

Figure 13. Multiple AT-GS910 Switches for Loop Prevention
Examples with
Loop Prevention
and Regular
Switches
In examples shown in Figure 14 on page 25, the AT-GS910 switch and a
regular switch form links. When Loop Prevention is enabled, the
AT-GS910 switch sends Loop Prevention frames. When detecting a loop,
the switch blocks a port or ports except the port with the smallest number.
