GS910 Series Gigabit Ehternet Unmanaged Switch Installation and User’s Guide
46
x

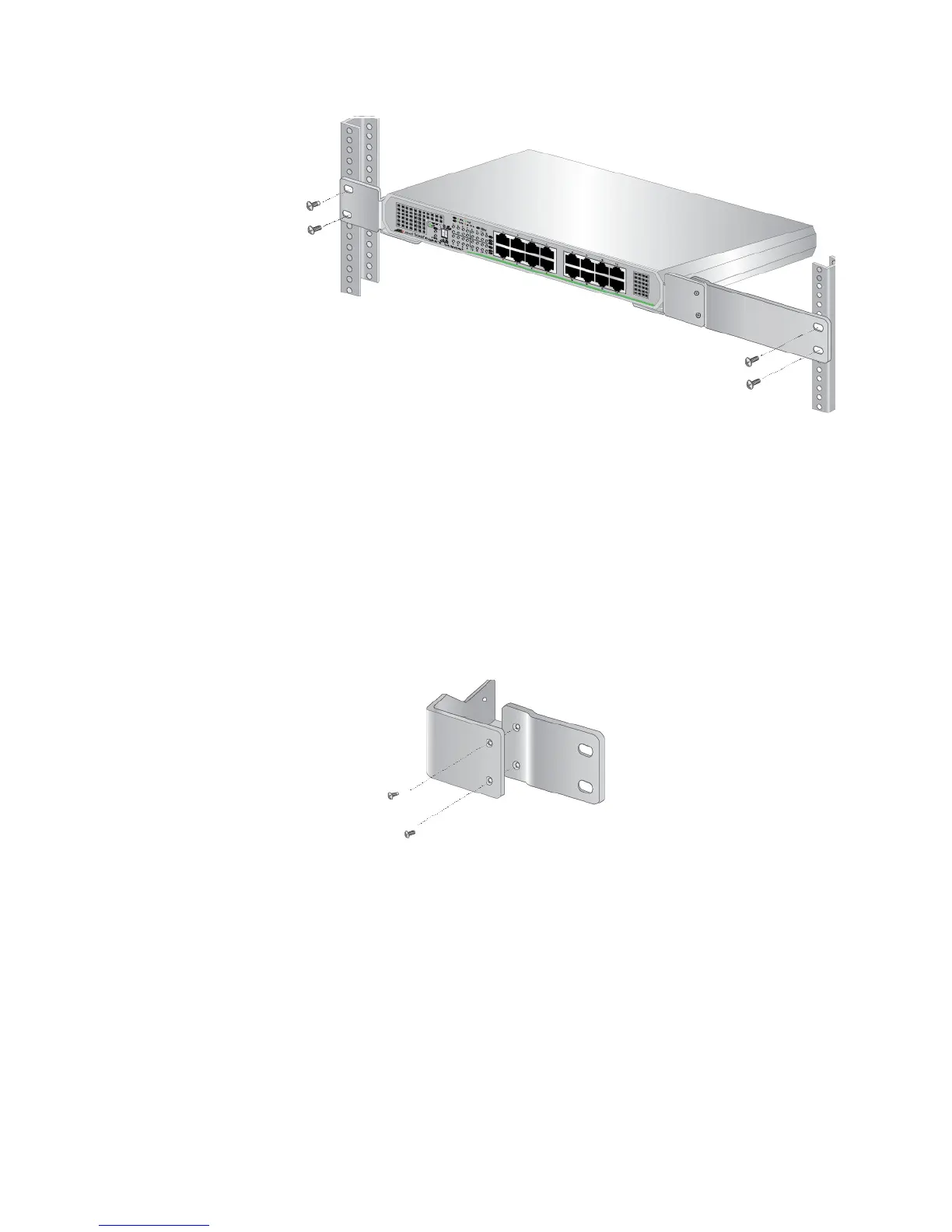

Figure 26. Attaching the Switch to an Equipment Rack
8. Proceed to “Cabling the Switch” on page 48.
Installing the
AT-GS910/24
Switch in a Rack
To install the AT-GS910/24 switch in an equipment rack with the brackets
that come with the switch, perform the following procedure:
1. Place all the items from the packaging on a work table.
2. Attach the extension to the bracket with the M4x6mm screws using a
Phillips-head screw driver as shown in Figure 27.
x
Figure 27. Attaching the Extension to the Bracket
