Allied Telesis GS910 Series User Manual

Chapter 3: Installation Using the AT-BRKT-J23 Wall Mount Kit
55
3. Pre-drill the marked locations on the wall at the locations marked in
Step 2.
4. Install the four plastic anchors into the wall in the holes drilled in Step
3.
5. Position brackets on the wall and drive screws through the holes to
attach the brackets on the wall. See Figure 32.
x

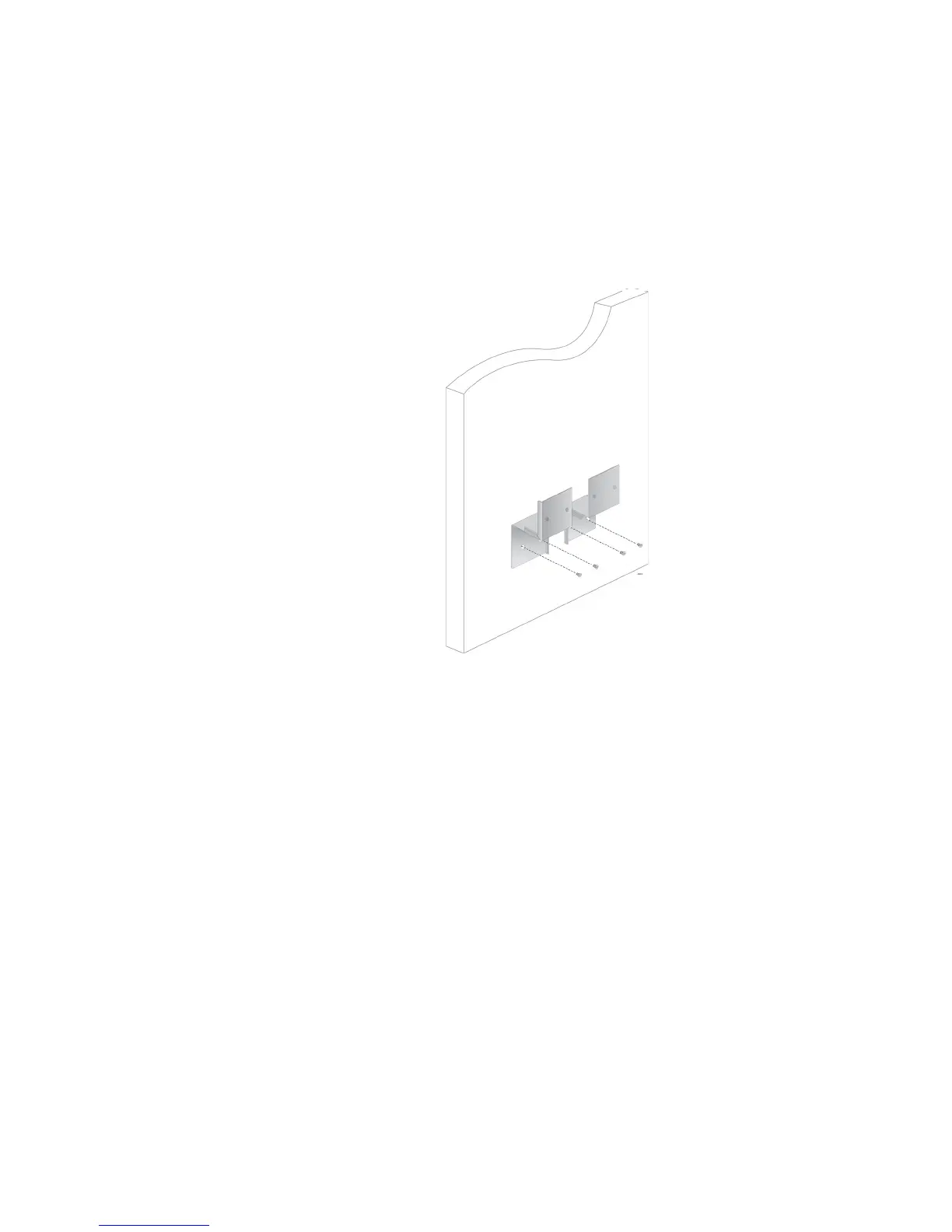

Figure 32. Driving the Screws through the Holes
6. Make sure that the two brackets are installed securely.
