2 System Description

The wave-scan 3 / 3 dual is a portable surface analyzer that measures Orange

Peel and the Distinct of Image (DOI) on high-gloss surfaces. The instrument is con-

trolled by the Operate button on the front side and the touch-screen display on

the top. The Operate button is used to switch on the instrument and to trigger a

measurement. The touch-screen display is used to select icons and functions di-

rectly.

2.1 Delivery Content

The system comes complete with: Measurement unit, docking station, external

power supply unit with power connection line, 2 rechargeable Li-Ion battery packs,

2 USB cables, cover, test tile, certificate, safety instructions and short instructions.

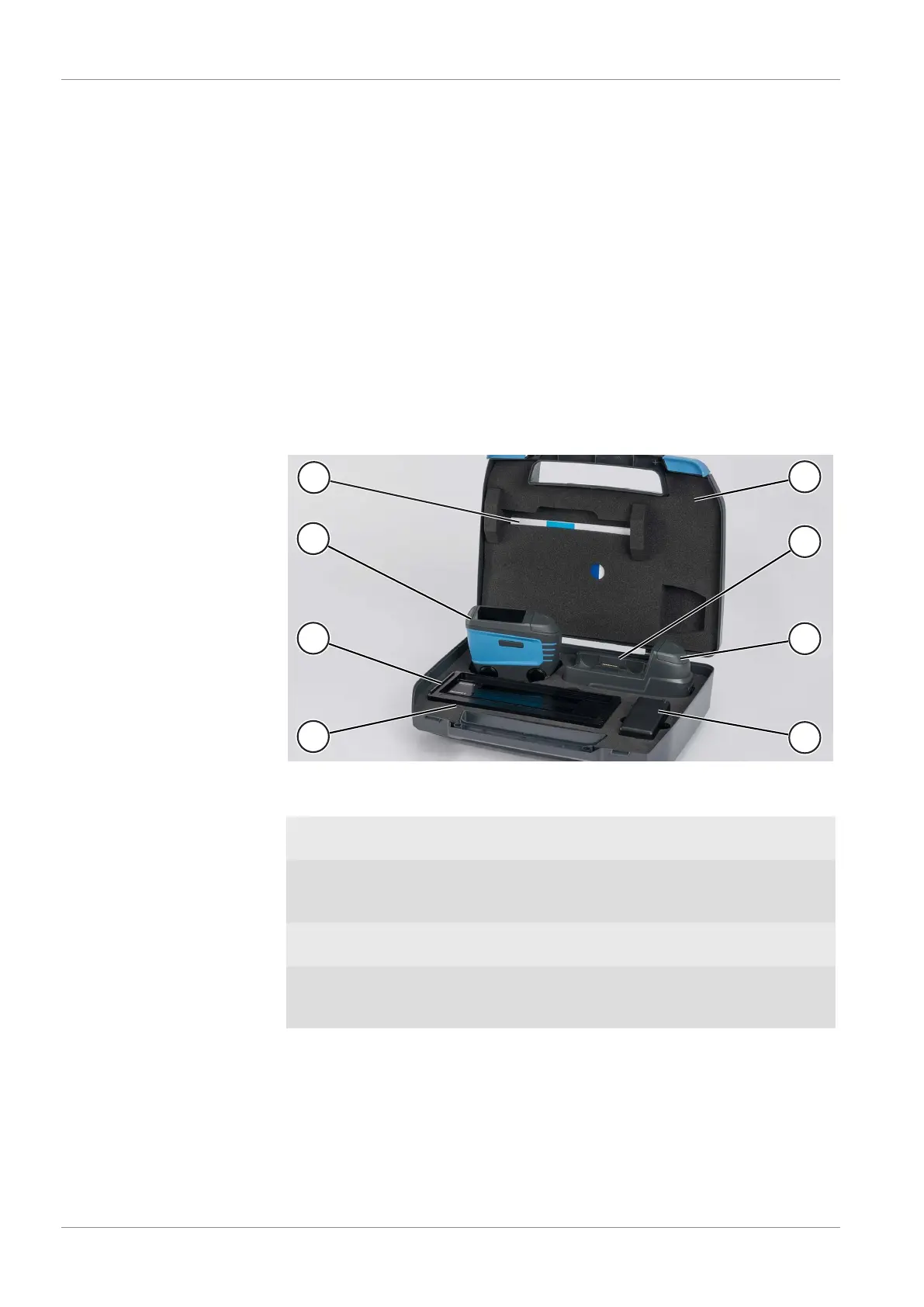

2.1.1 Transportation Case

The items listed below are contained in the packaging. Please contact BYK-Gard-

ner if any item is missing or damaged.

1 Safety instructions, short instruc-

tions and retraceable certificate

5 Transportation case with padding

2 Measurement unit with protec-

tion cover and rechargeable bat-

tery pack #1

6 Docking station

3 Standard plate with cover – in-

cludes checking tiles #1 and #2

7 Internal charger with recharge-

able battery pack #2

4 Below the plate: Hand strap,

power cable and USB interface

cables

8 Power supply

There is additional spare for the cables below the plate for the test tile(s). The in-

terface cable USB type B/A is for connecting the docking station to a PC. The inter-

face cable USB type C/A is for connecting the device to a PC.
