BYK-Gardner GmbH System Description | 2
301 200 085 E 2309 wave-scan 3 / wave-scan 3 dual 13
2.1.2 Names and Functions of Parts
The basic system consists of the measurement unit and the docking station. The
docking station is used to exchange data and to charge the rechargeable battery
pack.
NOTICE
When the instrument is not in use, place it in the docking station. This way the
rechargeable battery pack will be charged, and the instrument will always be ready
for measurements.

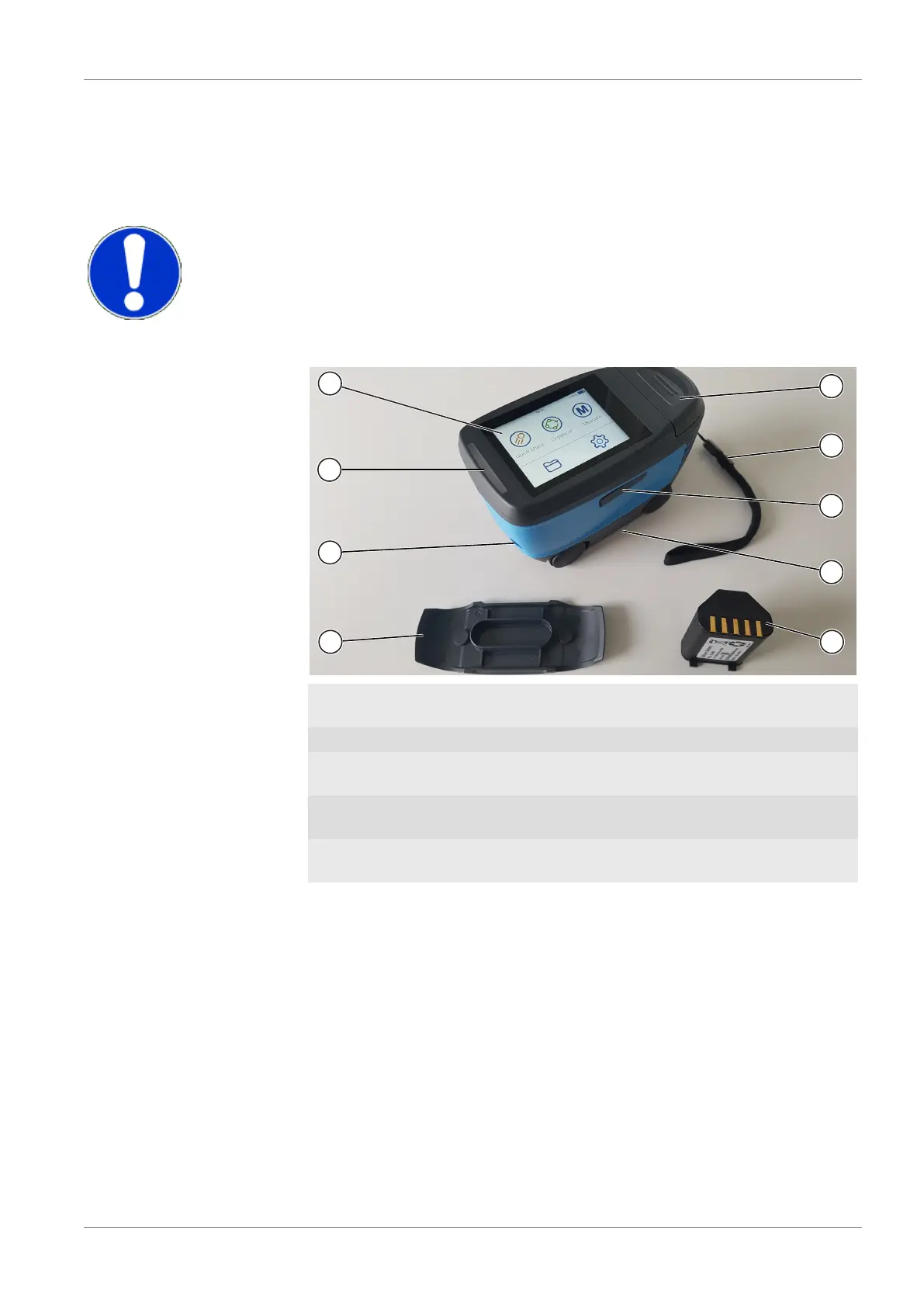

The measurement unit consist of the following parts.
1 Capacitive display 5 Insertion place for primary battery
pack
2 Signal LED 6 Hand strap
3 USB connector for data commu-
nication
7 Operate button to turn device
on / perform measurements
4 Protection cover 8 Measurement aperture and dock-
ing station connectors
9 Reserve battery pack from dock-
ing station
The instrument comes with a protection cover. Remove it before operation and at-
tach it after operation. Also attach the cover before placing the unit in the trans-
port case.
The button Operate and the display are used to control the system. Pressing Op-
erate turns the unit on and causes the instrument’s dashboard (main menu) to be
displayed. All settings within the menus are made by the display.
In measuring mode pressing the button Operate performs measurements. In con-
figuration mode it has the same function as the symbol Back.
System operation is supported by an auto-diagnosis test, comments, and error
messages. Measurement values and comments appear in the display.
