Vipros 357 Queen with Fanuc 18PC User Pre-installation Guide ©Amada America, Inc.
Print Date 01/24/2001 Revision 4.0 This document available on the World Wide Web at http://www.amada.com Page 12 of 37
Supply Requirements - Pneumatic
Vipros 357 Queen 80 psi @ 8.8 ft³/min.
Optional Equipment
MP1225 Loader 75 psi @ 31.8 ft
3
/min.
Installing the Pneumatic Supply
The Vipros 357 Queen requires connection to a compressed air
system by hose or pipe. The compressed air must be clean and dry.
Please note the following:
! The minimum pipe inside diameter is ½".
! The air pressure required is 80 psi.
! The air volume required is 8.8 ft³/min..

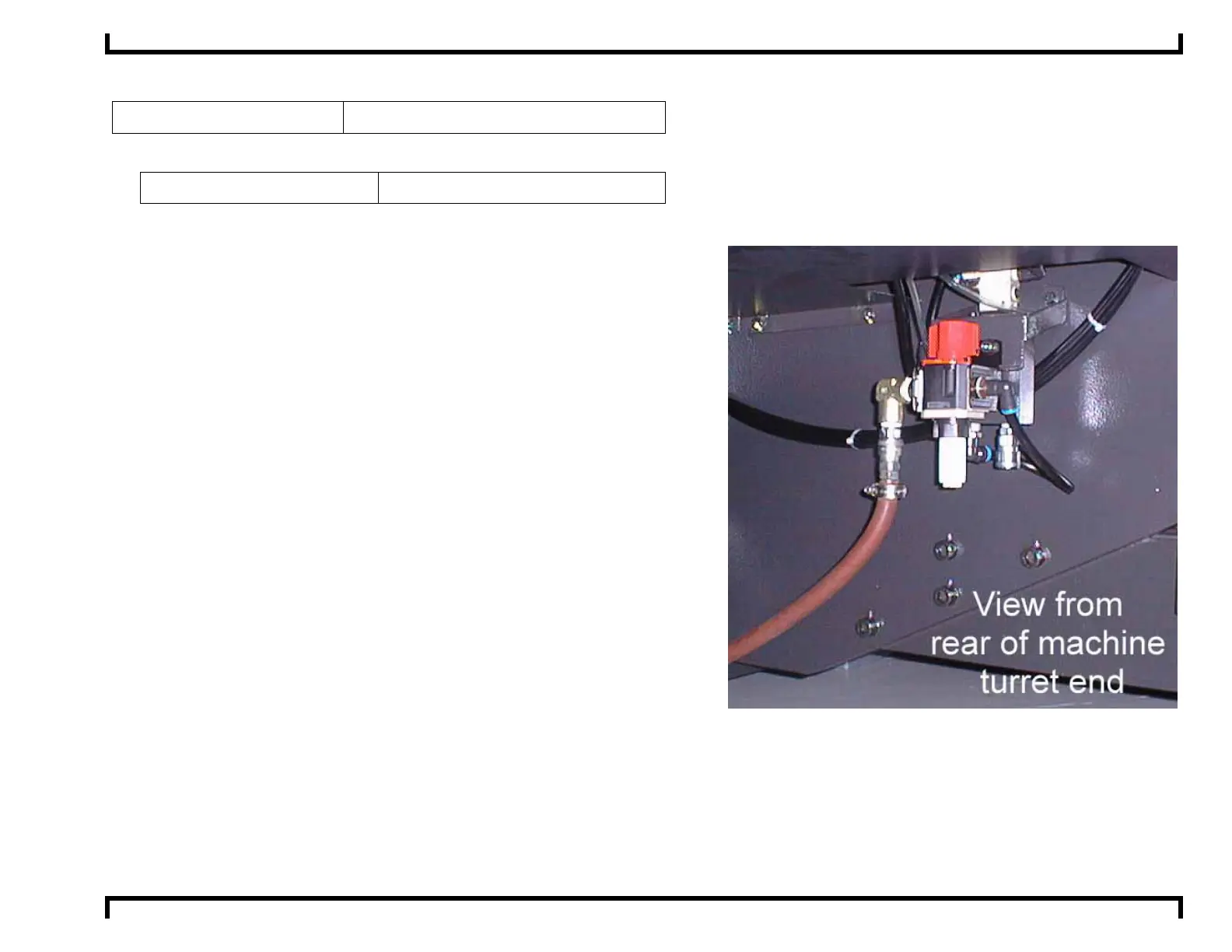

! The air inlet is approximately 16" above the floor level at the rear
of the Vipros 357 Queen
For the location of required air supplies for optional equipment,
please see the installation guides for the specific equipment
