Amada Vipros 357 Queen - Alt. Floor J-bolt Hole Detail (Core Drill)

Vipros 357 Queen with Fanuc 18PC User Pre-installation Guide ©Amada America, Inc.
Print Date 01/24/2001 Revision 4.0 This document available on the World Wide Web at http://www.amada.com Page 25 of 37
10.0"
24.0"
Base Plate
10" Core Drill in existing floor
Floor Line
Machine Foot
A
A
A
Machine Frame
Machine Foot
Base Plate
Supplied J-Bolt

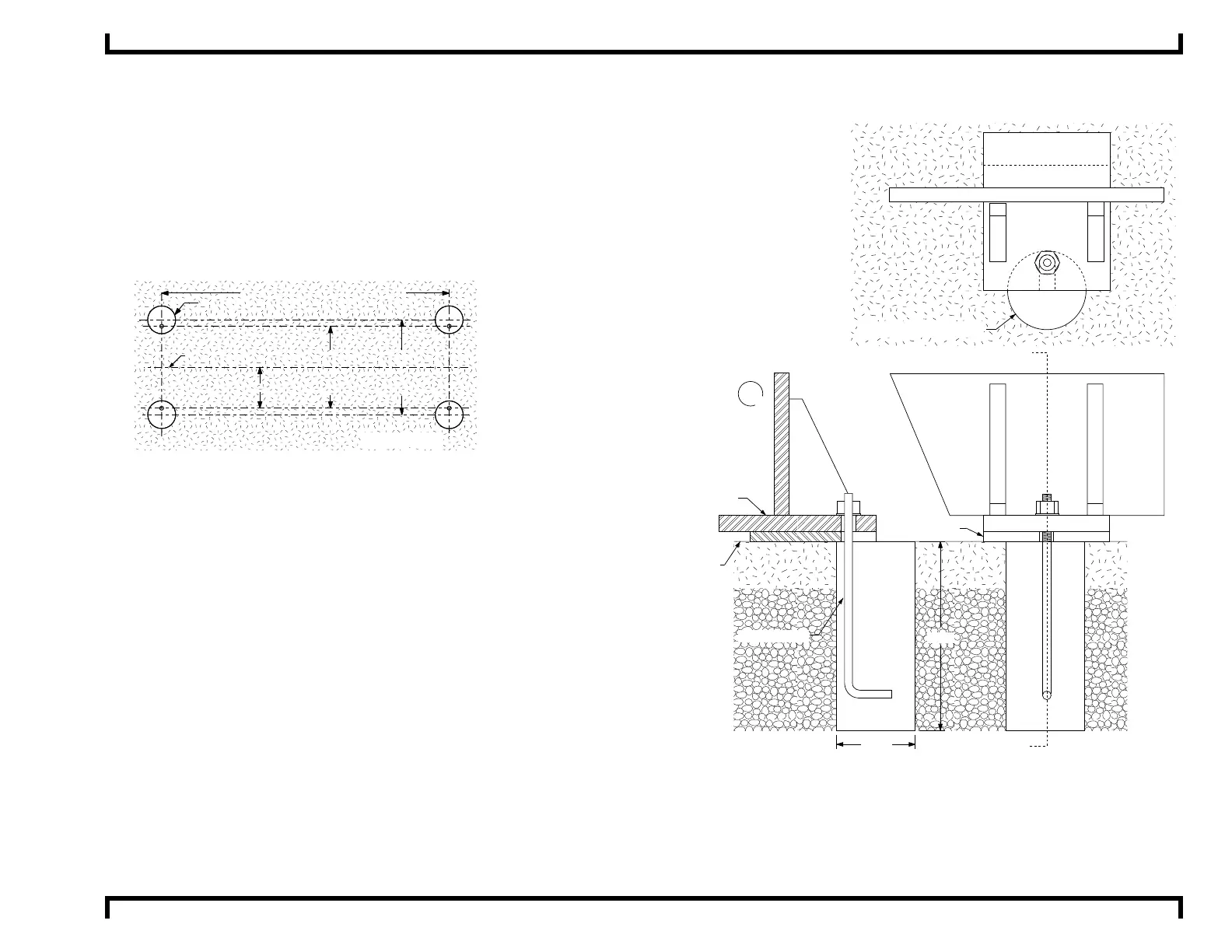

Alternative Floor J-bolt Mounting Hole Detail (Core Drill)
This machine mounting method should only be used if the floor
is of such quality that it will support the weight of the machine
with the anchor J-bolts used only for maintaining the location
of the machine.
See special note page 21
Plan - J-bolt Mounting Hole (Core Drill)
10" Core Drill (4)
34.20"
Core Drill
Centerline
103.1" Anchor-bolt Centerline
14.75"
29.5"
Anchor-bolt
Centerline
Machine Centerline
Existing Floor
