Amada Vipros 357 Queen - Alt. Anchoring Method (Anchor Rod;Adhesive)

Vipros 357 Queen with Fanuc 18PC User Pre-installation Guide ©Amada America, Inc.
Print Date 01/24/2001 Revision 4.0 This document available on the World Wide Web at http://www.amada.com Page 28 of 37
Floor Line
Machine Foot
Machine Frame
Machine Foot
1" x 16" anchor bolt
6.00"
Existing Floor
Base Plate

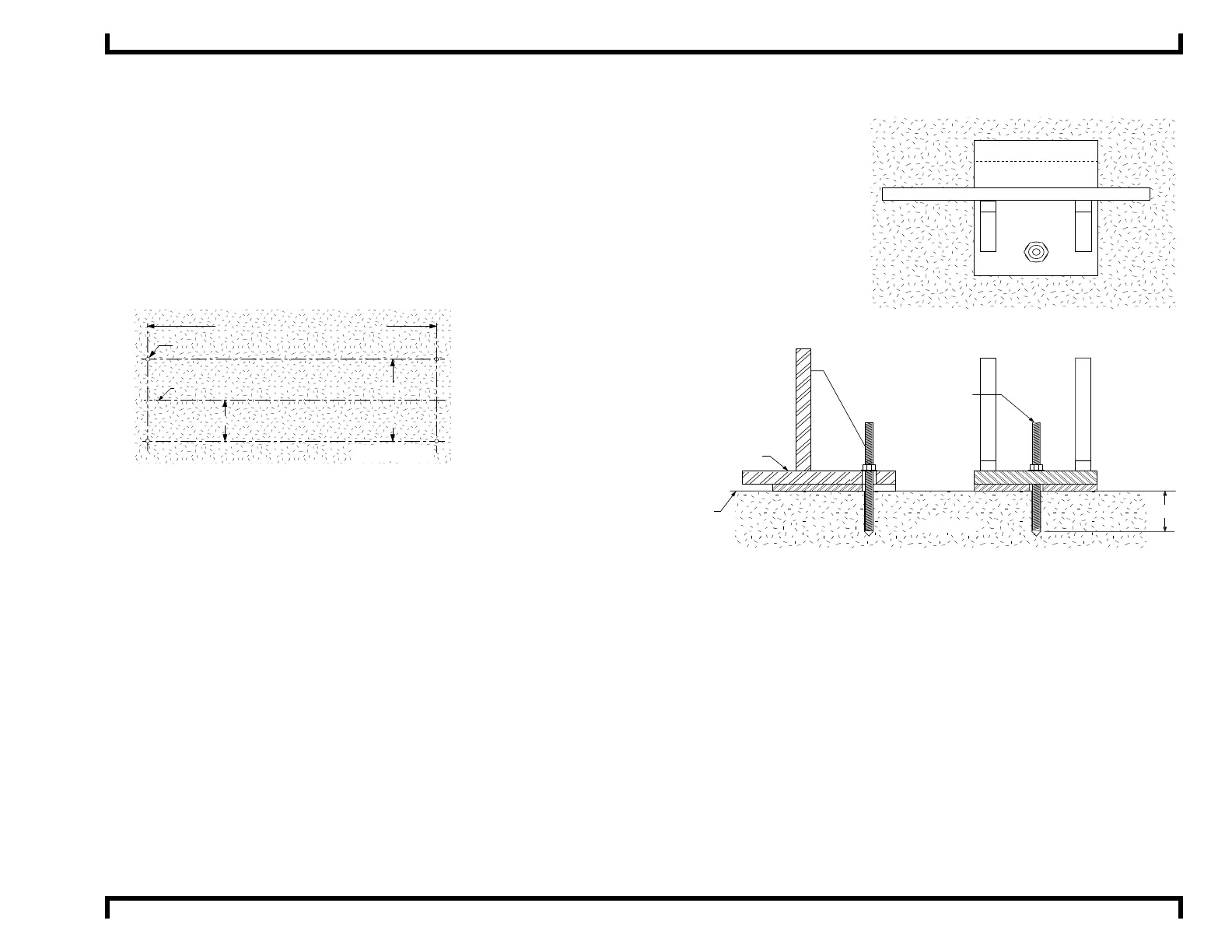

Alternative Anchoring Method (Drilled Hole with Anchor Rod and Adhesive)
This machine mounting method should only be used if the floor
is of such quality that it will support the weight of the machine
with the Anchor Rod used only for maintaining the location of
the machine.
See special note page 21
Plan - J-bolt Mounting Hole
(Drilled Hole with Anchor Rod and Adhesive)
1.125" Drilled Hole (4)
103.1" Anchor-bolt Centerline
14.75"
29.5"
Anchor-bolt
Centerline
Machine Centerline
Existing Floor
