Vipros 357 Queen with Fanuc 18PC User Pre-installation Guide ©Amada America, Inc.
Print Date 01/24/2001 Revision 4.0 This document available on the World Wide Web at http://www.amada.com Page 27 of 37

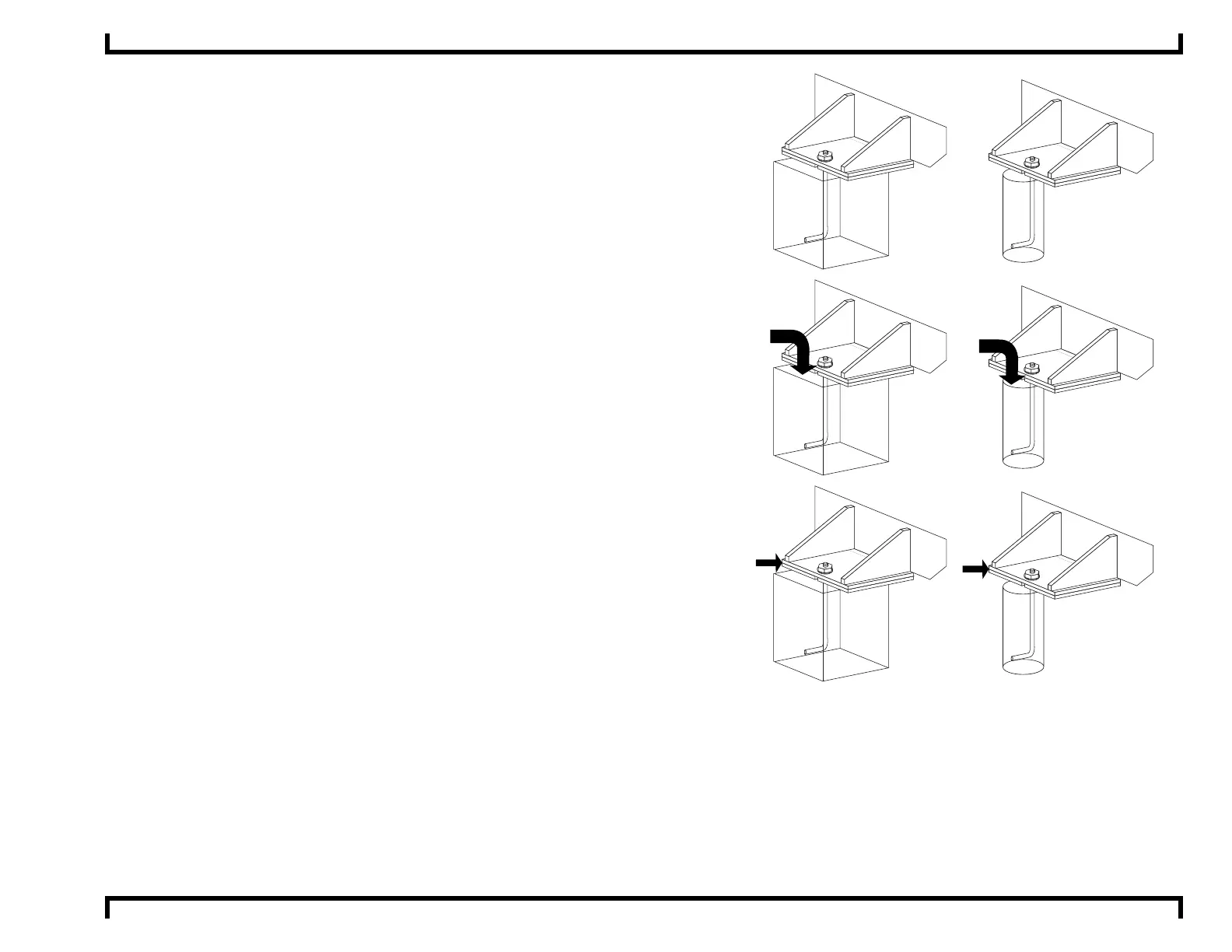

Step 4. Set the J-bolt through the hole in machine foot, attach
washer and nut to hold J-bolt in place.
Step 5 Pour the Concrete.
Ensure that the J-bolt remains correctly aligned to the
machine frame during the pouring and hardening time of
the concrete.
Ensure that the concrete level is equal to the floor level
Step 6. To complete the mounting procedure, level the machine
frame by inserting leveling shims between the machine foot
and base plate.
See Leveling the Machine section for correct procedure.
