Amada Vipros 357 Queen - Foundation Anchoring Procedure; Foundation J-bolt Mounting Detail

Vipros 357 Queen with Fanuc 18PC User Pre-installation Guide ©Amada America, Inc.
Print Date 01/24/2001 Revision 4.0 This document available on the World Wide Web at http://www.amada.com Page 22 of 37
5"
10"15.8"
Base Plate
Hole in Foundation
Floor Line
Machine Foot
A
A
A
Machine Frame
Machine Foot
Base Plate
Supplied J-Bolt
4.4"
8.0"
24"
Foundation Anchoring Procedure
An ideal foundation is given on the following pages. This foundation must be used if the existing floor cannot meet the minimum
requirements to support the machine.
The foundation must consist of a single, homogeneous slab. The foundation must be level to within 0.032" / ft. Anchoring the
Vipros 357 Queen to the floor using the anchor-bolts supplied is essential to ensure reliable performance. Amada generally
recommends that the foundation have a minimum load bearing capacity of 3.5 ton/ft
2
. It is the purchaser’s responsibility to
determine that the foundation meets these requirements.
Please note the following:
! The base plates, shims, anchor bolts, nuts, and washers are
shipped with the Vipros 357 Queen.
! The concrete J-bolt pads should be filled after the machine
is placed on the foundation.
! See special note page 21

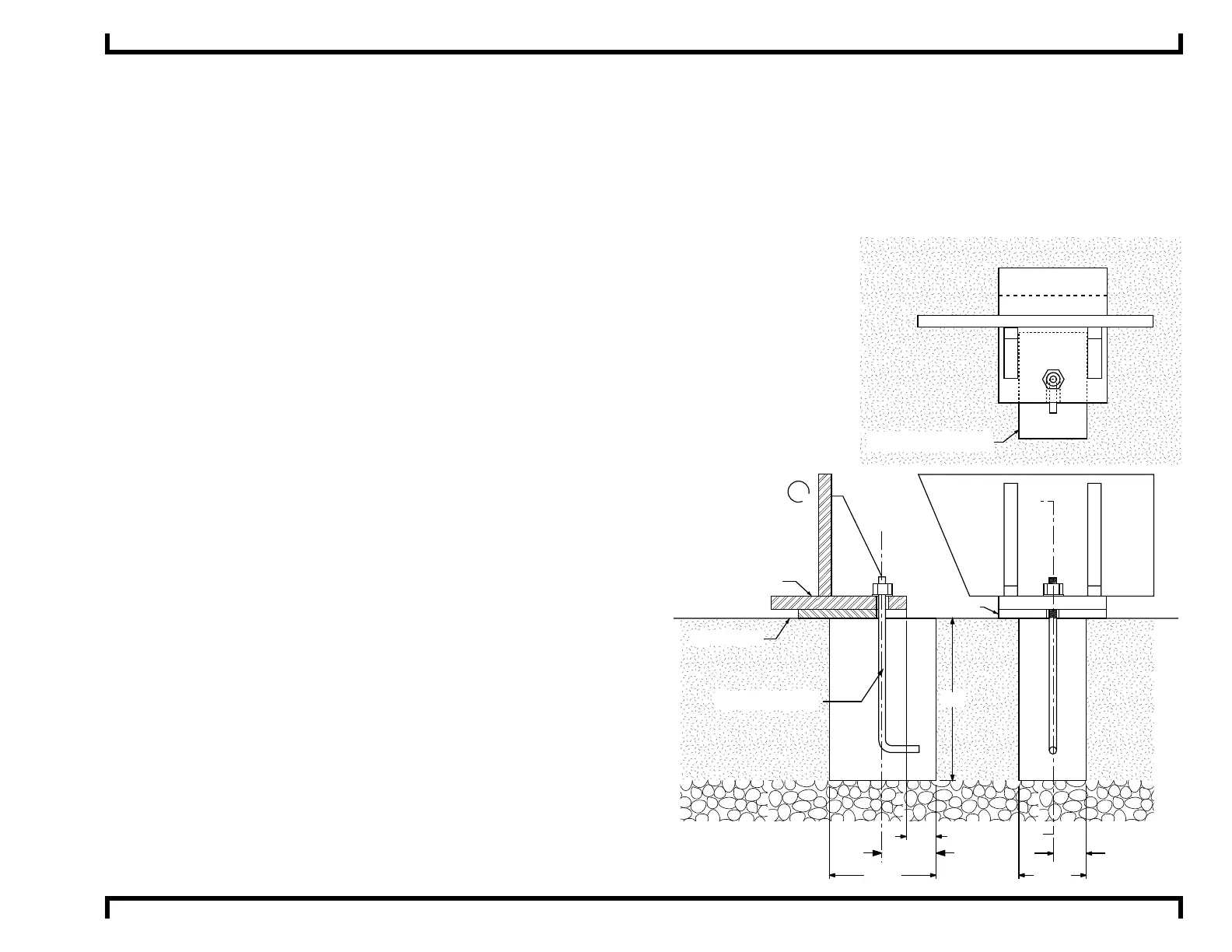

Foundation J-bolt Detail
See page 26, Foundation / Floor J-bolt Mounting Procedure,
for proper method of mounting the Vipros 357 Queen on the
foundation.
