Drilled Hole with Anchor Rod and Adhesive Mounting Procedure

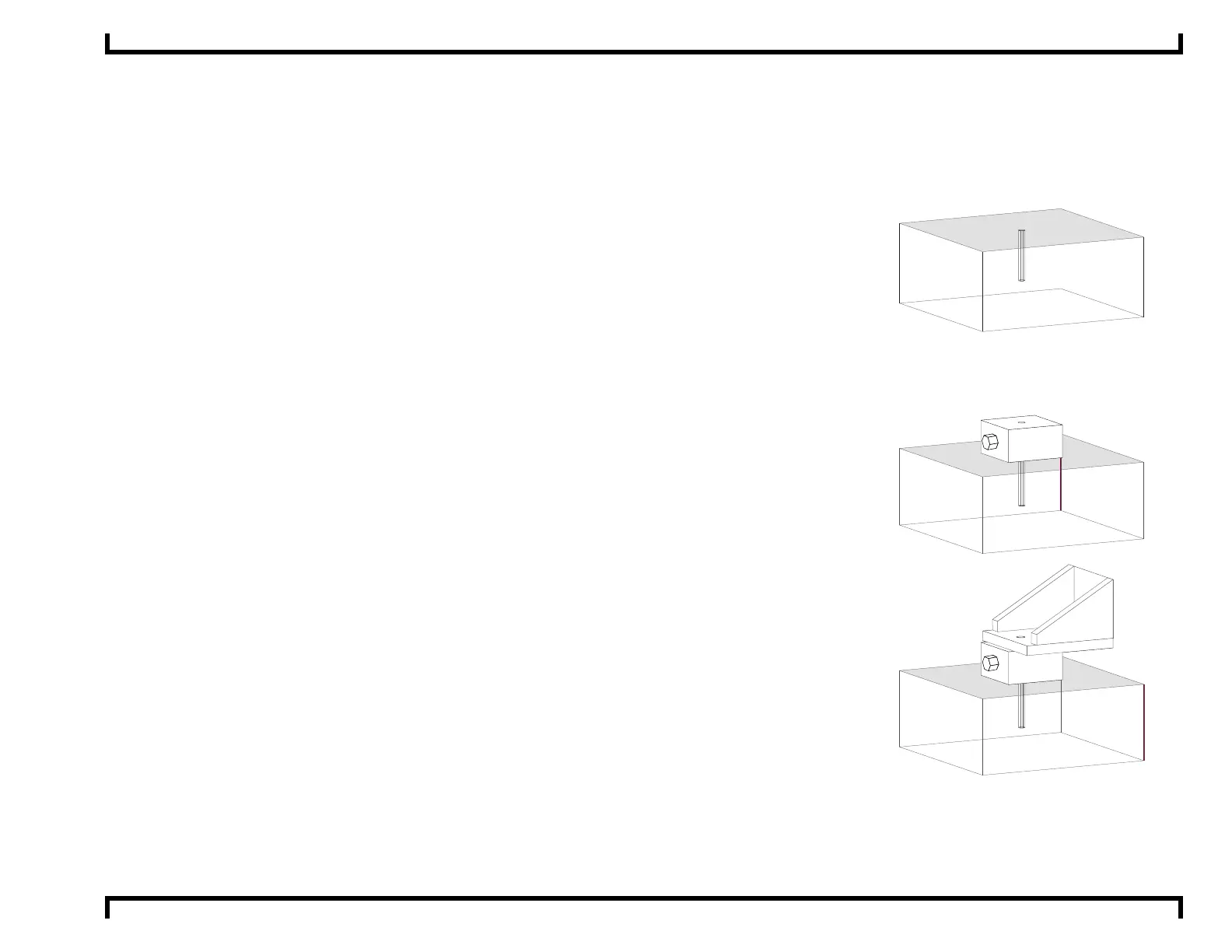

Step 1. Drill the four Anchor Rod holes in the existing floor.
The holes should be drilled approximately 6” deep.
See Alternative Floor Bolt Mounting Method Plan View (Drilled Hole with
Adhesive Anchor Rod) for correct layout dimensions.
E
xisting
F
loor
Step 2. Set the Amada Machine Leveling Plates over the drilled holes
E
xisting F
loor
Step 3.
Step 4
Set the machine on the machine leveling plates.
Level the machine frame by adjusting the Amada machine leveling plates.
See Leveling the Machine section for correct procedure.
Existing Floor
