Amada Vipros 357 Queen - Plan View - Vipros 357 Queen

Vipros 357 Queen with Fanuc 18PC User Pre-installation Guide ©Amada America, Inc.
Print Date 01/24/2001 Revision 4.0 This document available on the World Wide Web at http://www.amada.com Page 14 of 37

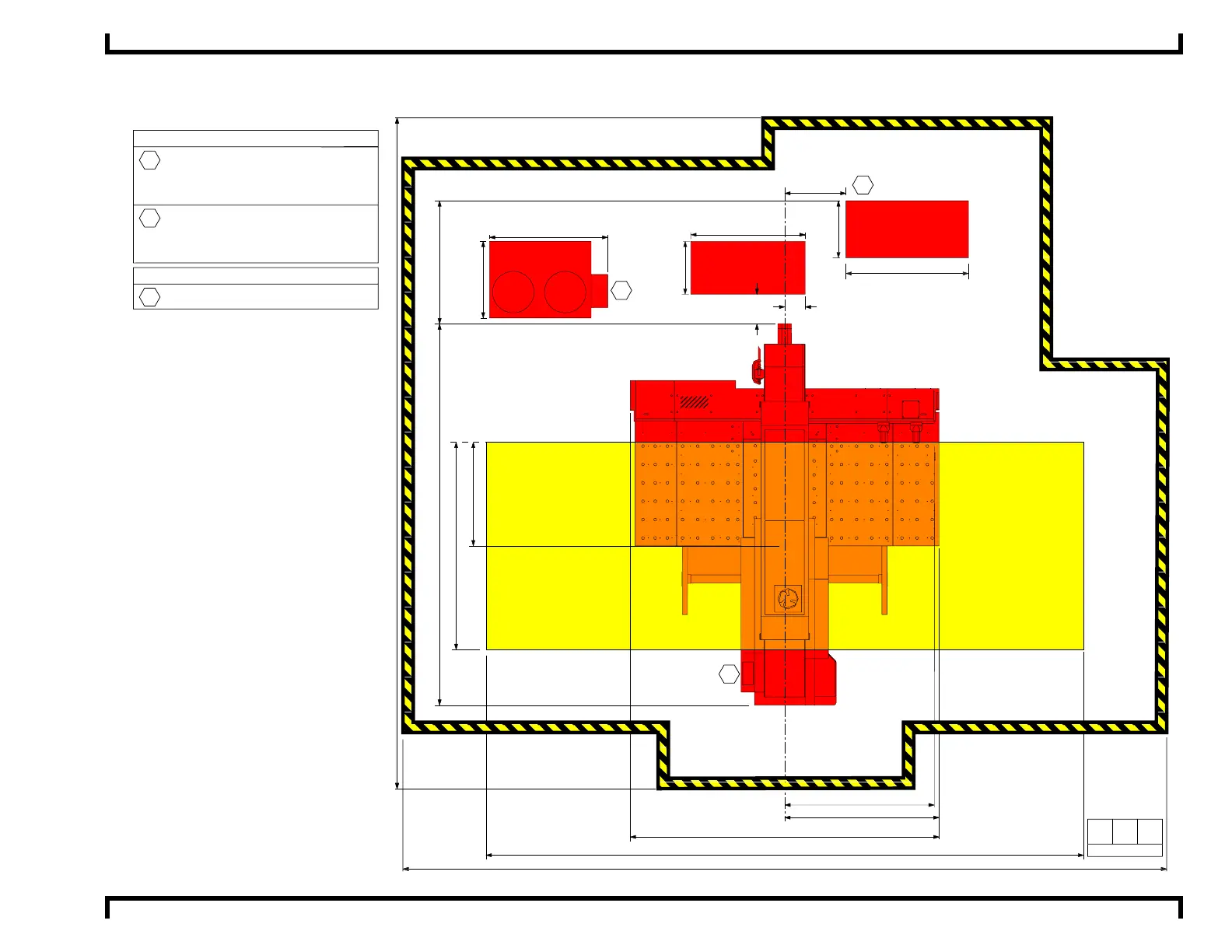

Plan View - Vipros 357 Queen
Fanuc 18P Control
H
y
draulic Uni
t
72.0" to Load Position
74.41" to Edge of Table
148.82" Machine Width
55"
26
"
28
"
59"
14"
30"
37"
57"
SBC 5.5 Chiller
P1
E2
E1
59.37" Maximum
10"
Machine
Centerline
VIPROS 357 QUEEN
Optional Material
Supports Required
Optional Material
Supports Required
50" Working Range
100" Maximum Travel Area 50" Material
183.8" Machine Length
288.0" Maximum Material Travel Area 144" Material
368" Recomended Safety / Maintenance Area 40" from all components
323.4" Recommended Safety / Maintenance Area 40" from all components
Electrical Requirements
Vipros 357 Queen
Vipros 357 Queen
Compressed Air Requirements
230 / 460 / 3 / 60 ±10% 30 kVA
SBC EX5.5 Chiller
230 or 460 / 3 / 60 ±10% 15 kVA
80 psi @ 8.8 ft³/min.
76 amps @ 230 / 3 / 60 VAC
38 amps @ 460 / 3 / 60 VAC
37 amps @ 230 / 3 / 60 VAC
19 amps @ 460 / 3 / 60 VAC
E1
E2
P1
