Amada Vipros 357 Queen - Machine Anchoring Requirements; Floor J-bolt Hole Detail (Saw Cut)

Vipros 357 Queen with Fanuc 18PC User Pre-installation Guide ©Amada America, Inc.
Print Date 01/24/2001 Revision 4.0 This document available on the World Wide Web at http://www.amada.com Page 24 of 37
5"
10"15.8"
Base Plate
Saw Cut Hole In
Existing Floor
Floor Line
Machine Foot
A
A
A
Machine Frame
Machine Foot
Base Plate
Supplied J-Bolt
4.4"
8.0"
24"
Machine Anchoring Requirements Vipros 357 Queen
To maintain machine reliability, extend tool life, and remain level over an extended period the Vipros 357 Queen must be
anchored in place on an adequate floor or foundation.
At a minimum the floor must consist of a single, homogeneous slab, level to within 0.032"/ft², and capable of supporting 3.5
tons/ft². It is the purchaser’s responsibility to determine that the floor meets these minimum requirements.
Floor J-bolt Mounting Hole Detail
(saw cut hole)
This machine mounting method should be used only if the floor is of
such quality that it will support the weight of the machine with the anchor
J-bolts used only for maintaining the location of the machine.
See special note page 21

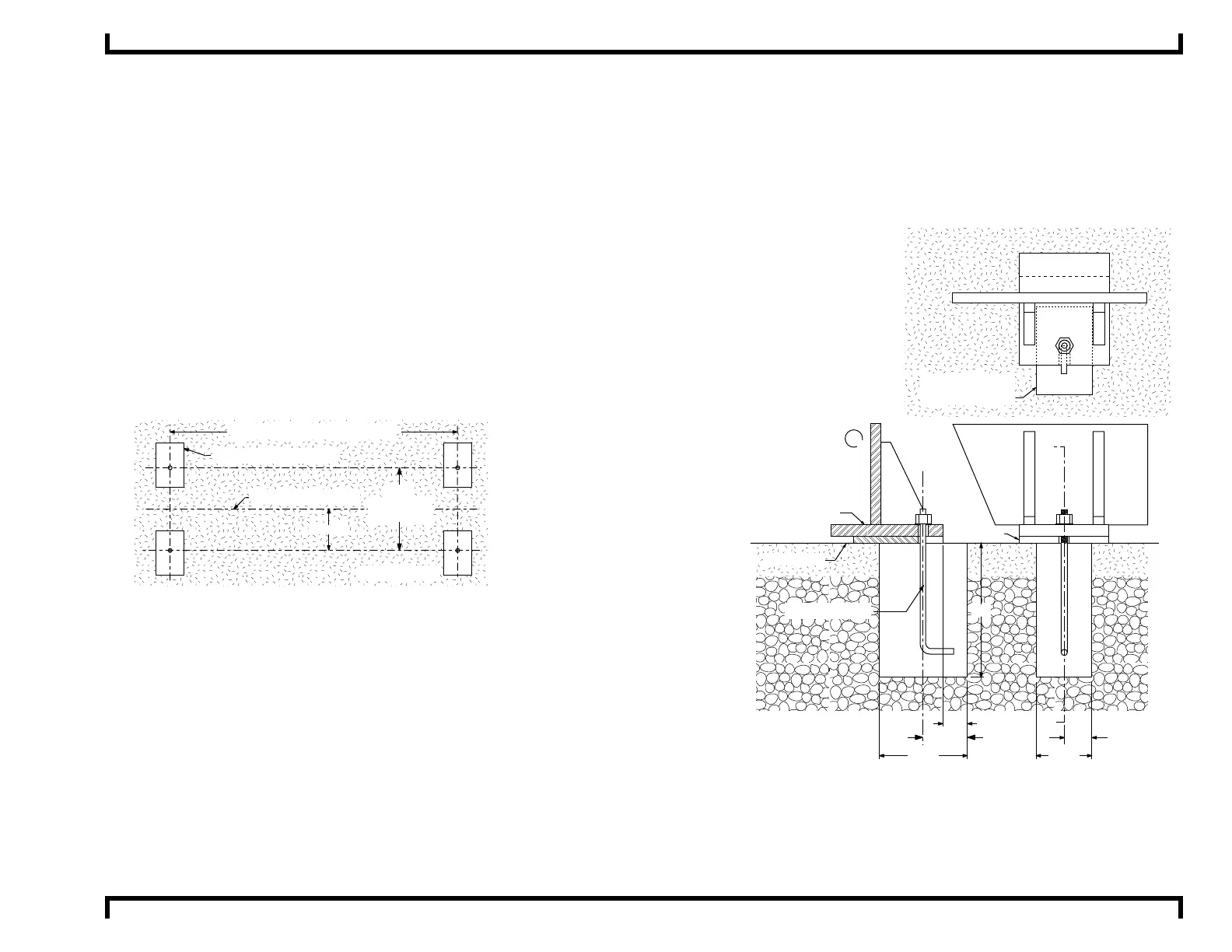

Plan - Floor J-bolt Mounting Hole (saw cut hole)
Existing Floor
14.75"
103.1" Anchor Bolt Centerline
29.5"
Anchor-bolt
Centerline
Machine Centerline
Saw Cut Hole in Floor (4)
