Vipros 357 Queen with Fanuc 18PC User Pre-installation Guide ©Amada America, Inc.
Print Date 01/24/2001 Revision 4.0 This document available on the World Wide Web at http://www.amada.com Page 19 of 37
2 supplied 15ft. water hoses
Maximum Material
Travel Area X144" by Y50"
Fanuc 18P Control
Hydraulic Unit
Air Flow
6"
6"

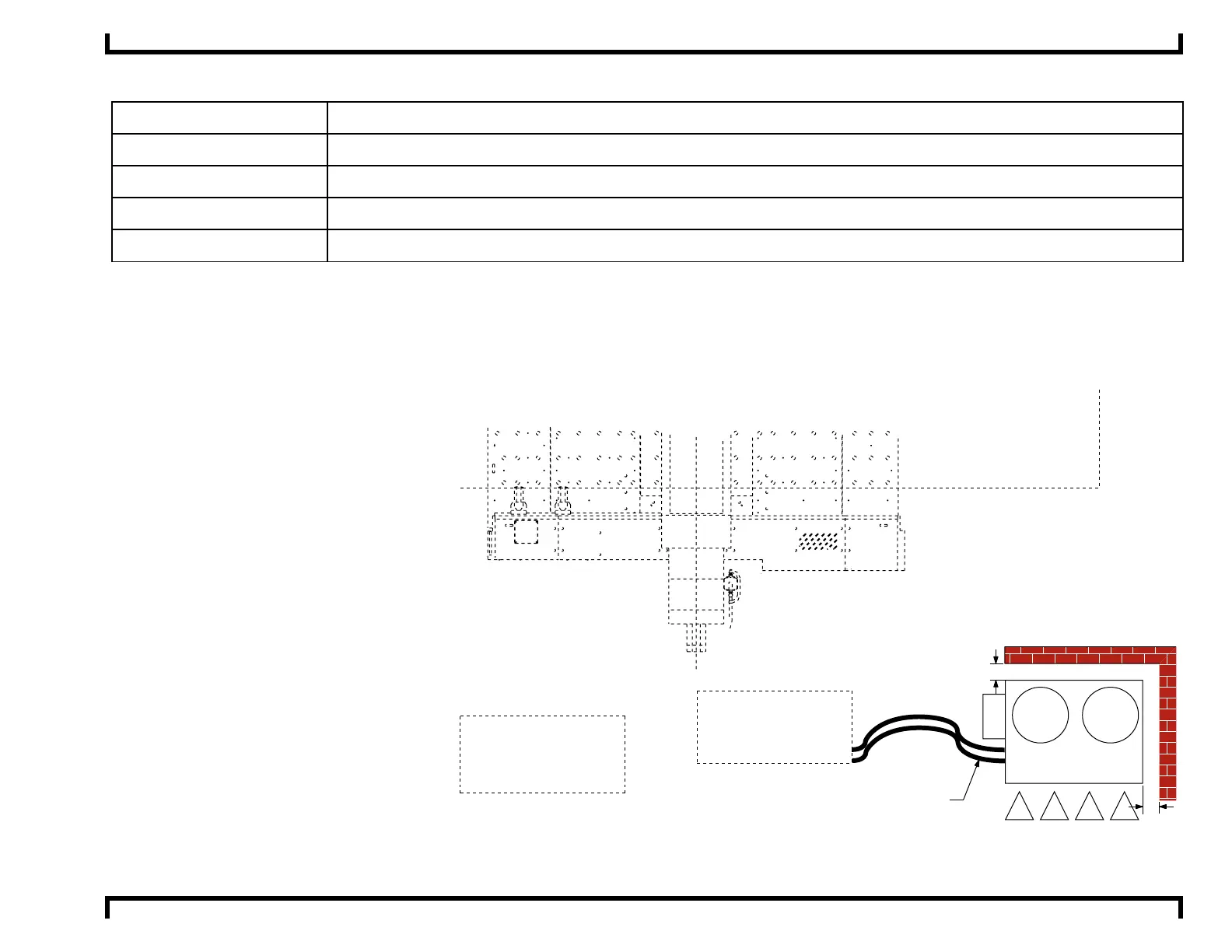

Under normal operation the chiller may be placed against walls as shown.
For maintenance access to all sides may be required.
Chiller Location is shown for reference only.
SBC EX 5.5 Chiller
Model SBC EX 5.5
Cooling Capacity 78,000 BTU/hour at 65
0
ambient air temperature
Water Volume 10-15 GPM at 35 p.s.i.
Reservoir Capacity 60 Gallons (distilled water)
Pump HP 1 hp single phase
SBC EX 5.5Chiller Placement
The SBC EX 5.5 Chiller is very important to the reliable operation of the Vipros 357 Queen.
The SBC EX 5.5 Chiller must be placed so that an adequate flow of air is maintained.
The position of the SBC EX 5.5
Chiller is flexible. The SBC EX 5.5
Chiller is supplied with two (2)
fifteen-foot lengths of hose to
connect the to the Vipros 357 Queen
Hydraulic Unit. The customer may
supply a longer length of hose if
required.
Under normal operating conditions
the SBC EX 5.5 Chiller may be
placed against walls as shown.
However, for maintenance purposes
access to all sides of the SBC EX 5.5
Chiller may be required.
The SBC EX 5.5 Chiller must have a
minimum 60" of clearance above the
SBC EX 5.5 Chiller for proper airflow.
