Amcrest AMDV960H4 User Manual

AMDV960H4 User Manual
www.amcrest.com 7

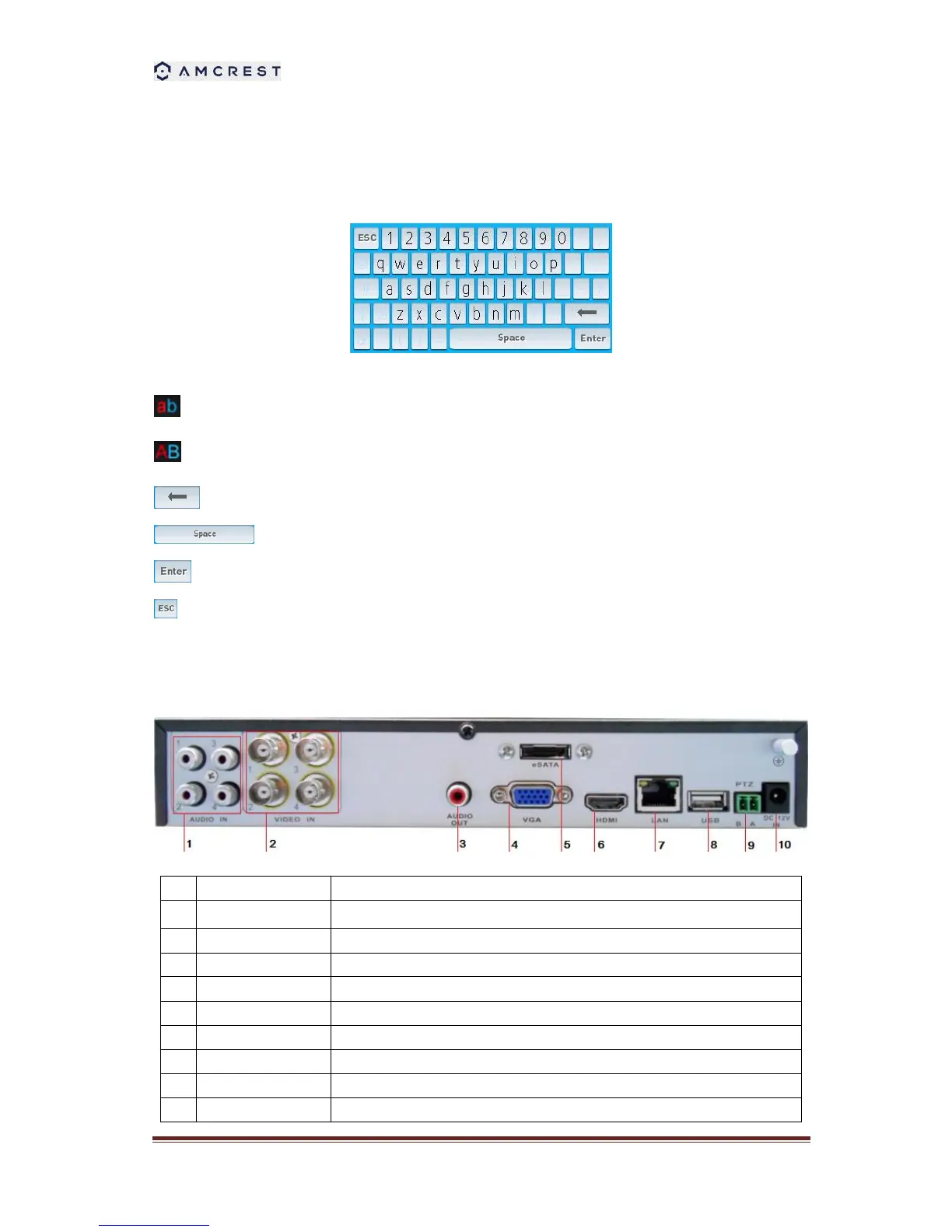

1.4. Soft Keyboard
When a mouse is used to perform task on the DVR, clicking on a text input field will bring up the
Soft Keyboard.
The buttons on the soft keyboard represents:
Lowercase: Designates lowercase input is being used.
Uppercase: Designates uppercase input is being used.
Backspace: Delete the character in front of the cursor.
Space: Input spaces between letters.
Enter: Confirm selection.
ESC: Exit out of Soft Keyboard.
1.5. Rear Panel Diagram
No
Item
Description
1
AUDIO IN
RCA connectors for analog audio input.
2
VIDEO IN
BNC connector for analog video input.
3
AUDIO OUT
RCA connectors for analog audio output.
4
VGA
DB9 connector for VGA output. Display local video output and menu.
5
eSATA
eSATA port, connect eSATA HDD for recording or backup
6
HDMI
HDMI output, Display local video/Audio output and menu.
7
LAN
Connector for LAN (Local Area Network).
8
USB
Connector for USB device.
9
PTZ
PTZ control port (Some models don’t support this feature)- RS485.
