Ametek 3050-DO

PN 305725901, Rev YF
Rate
The preferred data collection rate is “0.5” minutes (factory-set default).
A record is created every 30 seconds. The collection rate can be increased
to one (1) minute or more.
Flow Adjust
Flow Adjust is a utility designed to calibrate the internal ow meter inside
the 3050-DO Analyzer. To calibrate the ow meter, an external ow meter
is needed to compare the ow reading on the analyzer with the actual
ow.

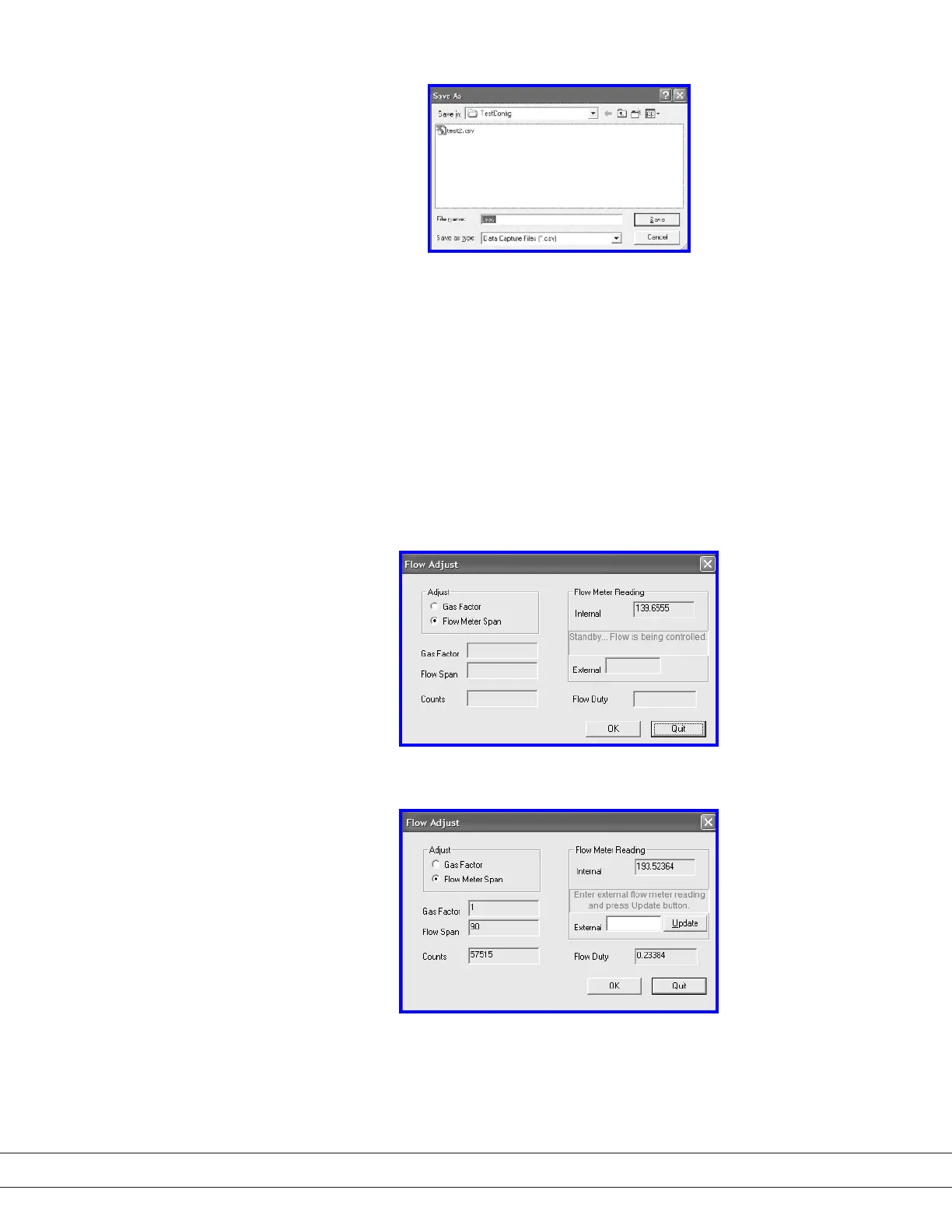

Figure 3-8.2.
Save As dialog box, Monitor tab.
Figure 3-8.3.
Flow Adjust dialog box, Flow is
being controlled.
Figure 3-8.4.
Flow Adjust dialog box, enter
external ow meter reading.
3-20 | 3050-DO Moisture Analyzer
