3-10 | Model 931S / Model 932S UV Analyzers

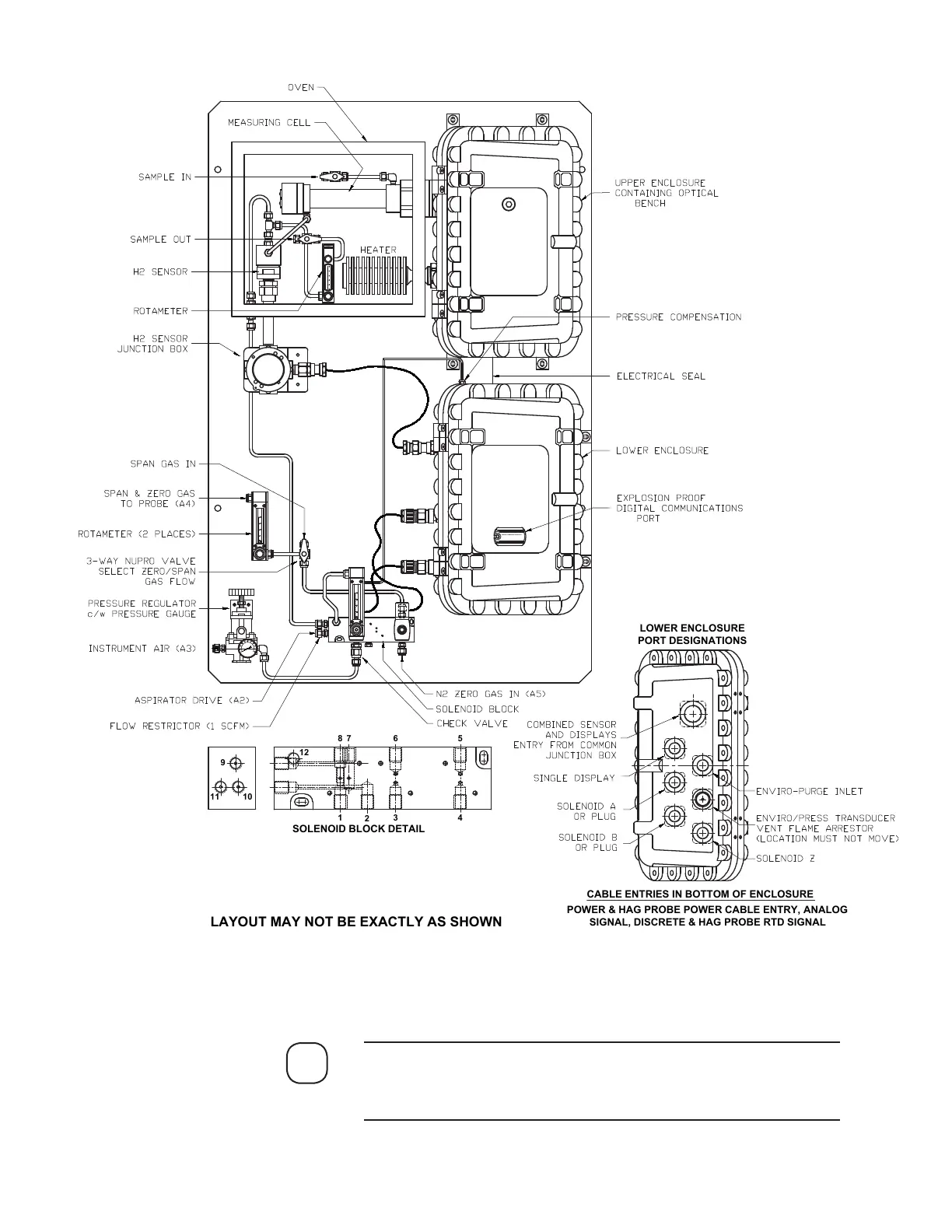

Figure 3-3 illustrates a European analyzer with a heated Cell. For
your system, refer to Final “As-Built” drawings in the analyzer
Documentation Package.
NOTE
Figure 3-3.
Backpan component
layout (European).
DO NOT OPEN IF A HAZARDOUS
GAS ATMOSPHERE IS PRESENT
SERIAL COMMUNICATIONS PORT
LAYOUT MAY NOT BE EXACTLY AS SHOWN
POWER & HAG PROBE POWER CABLE ENTRY, ANALOG
SIGNAL, DISCRETE & HAG PROBE RTD SIGNAL
CABLE ENTRIES IN BOTTOM OF ENCLOSURE
To Next Page
