4-62 | Model 931S / Model 932S UV Analyzers
Analyzer Information
Before proceeding, test the area around the analyzer for explosive
gases and proceed only when the area is found to be safe.
Do not reset the analyzer if there is an explosive gas atmosphere
present.
The Information dialog box displays information about the analyzer and
allows you to reset the analyzer’s Host Controller board.
Host Version
Host Controller board software version.
Micro Version
Microcontroller board software version.
Serial #
Analyzer serial number.
EEPROM Writes
The number of times that new configuration data has been saved to
the analyzer’s EEPROM. The maximum allowable number of saves is
20,000.

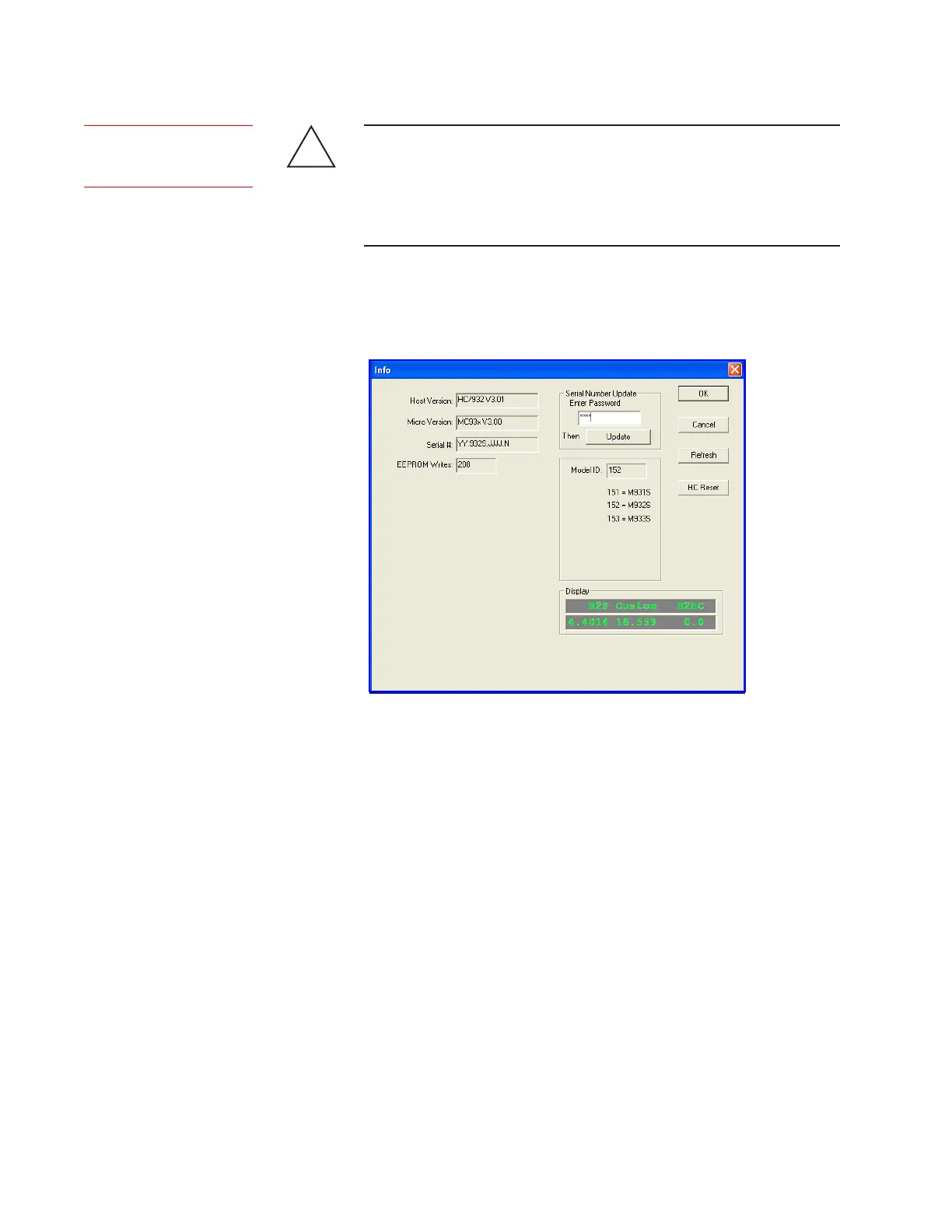

Figure 4-21.
Information dialog box
(Model 932S).
Setup (tab)Analyzer
Info
!
WARNING
To Next Page
