CONTROLS GLOSSARY

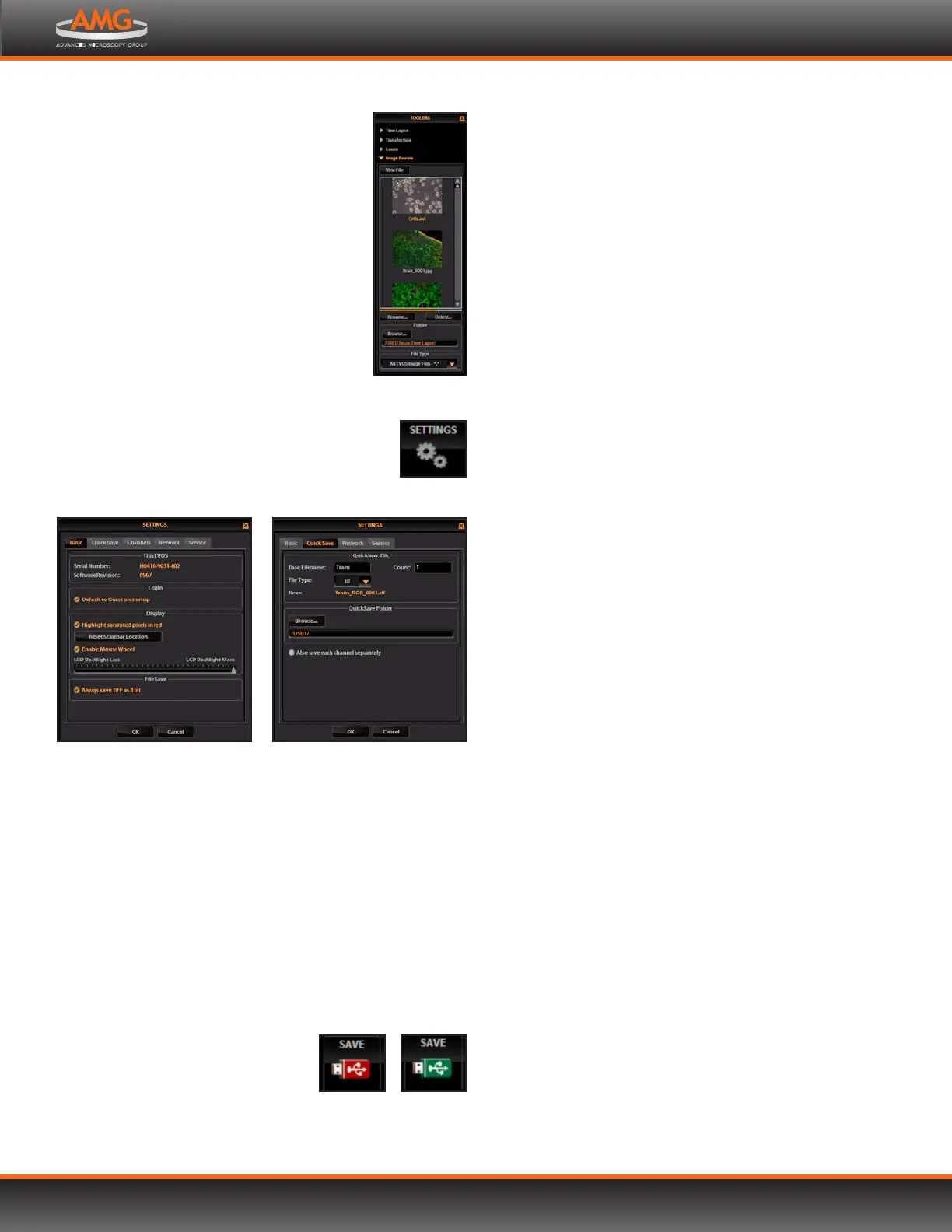

IMAGE REVIEW TOOL
The Image Review tool allows you to review still
images or play video files from the USB drive or network
connection. You may also use this tool to rename or delete
saved files. See Reviewing Images (p.19) for more details.
Settings: Basic Tab
(monochrome version shown)
Settings: QuickSave Tab
(color version shown)
Settings
button
Image Review
Tool
SETTINGS BUTTON
The Settings button (bottom center) opens the
Settings dialog box. Within the Settings dialog box,
the following options are available:
Basic Tab
đƫ “This EVOS” section displays the serial number
and software version.
đƫ “Login” section controls default Guest login.
đƫ “Display” section controls the following options:
– “Highlight saturated pixels in red” indicates
overexposed areas onscreen;
– “Reset Scalebar Location” moves the
Scalebar back to its default position in the
lower right corner of the screen;
– “Enable Mouse Wheel” allows the mouse
scroll wheel to control illumination levels;
– “LCD Backlight” controls the LCD lighting.
đƫ “File Save” section allows you to specify 8-bit as
the default format for TIFF files.
QuickSave Tab allows you to set up a file name,
count, file type, and folder to save captured images
automatically, as well as the option to save each
channel in a separate file for each captured image.
Channels Tab (not shown) allows you to assign a
custom display color to each fluorescence channel
(monochrome camera version only). See Assign
Custom Channel Display Colors (p.23).
Network Tab (not shown) allows you to set up
connections to shared folders via Ethernet. See
Connecting EVOS to a Network (p.21).
Service Tab (not shown) allows for maintenance
functions; contact your distributor if service is needed.
SAVE BUTTON
The Save button (bottom right) saves the current
image to the USB flash drive or network folder. A red
USB icon indicates that the current image has not
been saved yet. After a file is saved, the USB icon
turns green.
Save button
