AMLOGIC S905D3 - 5.7.5 SPIFC Timing Specification

0.6 (2019–07–25)
Amlogic Proprietary and Confidential
Copyright © Amlogic. All rights reserved.
49
Table 5-4 HS400 Data Input Timing Specification
Symbol Parameter Min Max Unit
tPERIOD Cycle time data
transfer mode
5 - ns
SR Slew rate 1.125 - V/ns
tCKDCD Duty cycle distortion 0 0.2 ns
tCKMPW Minimum pulse width 2 - ns
tRQ Input skew - 0.4 ns
tRQH input hold skew - 0.4 ns

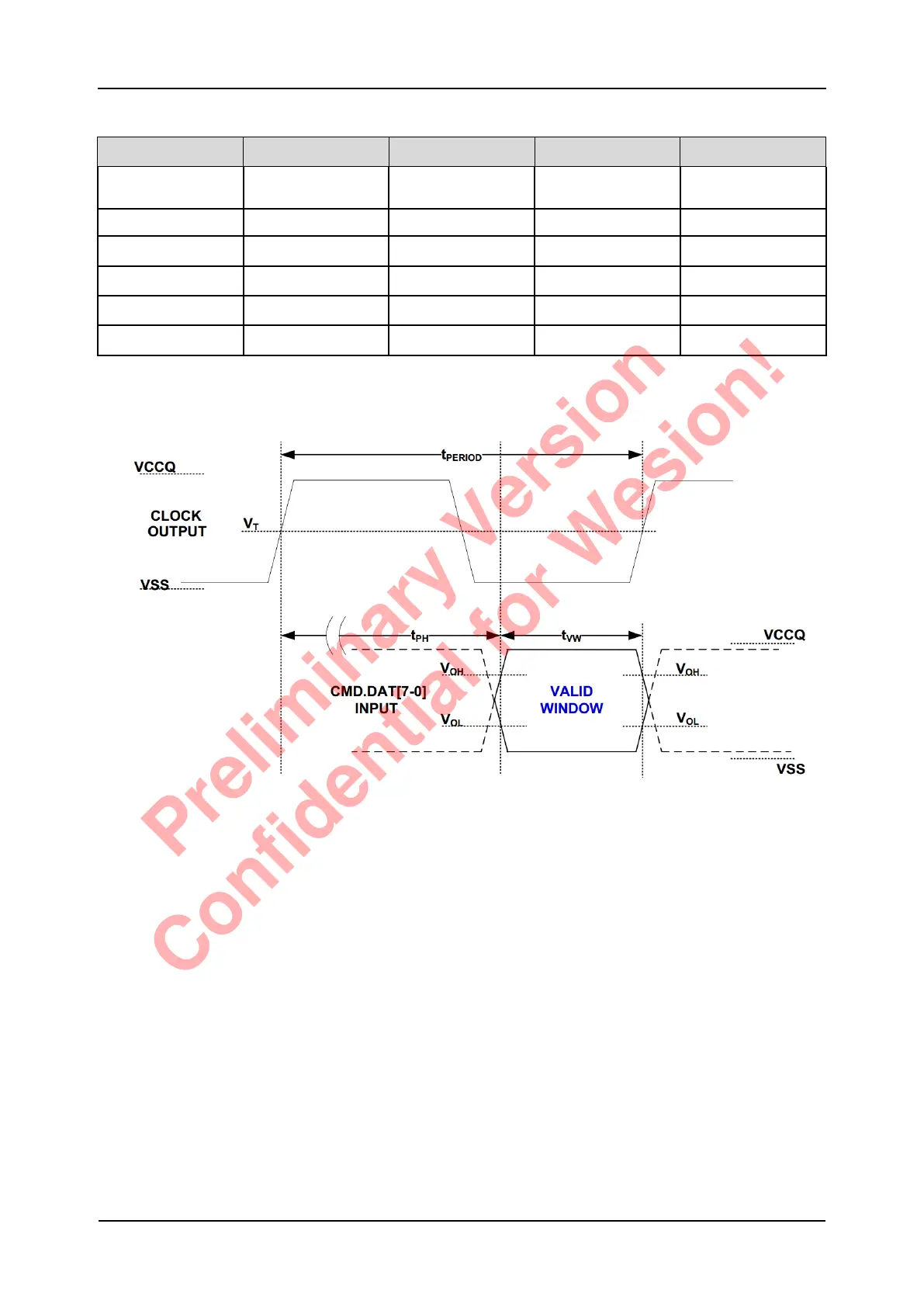

Figure 5-5 EMMC HS200 Data Input Timing
