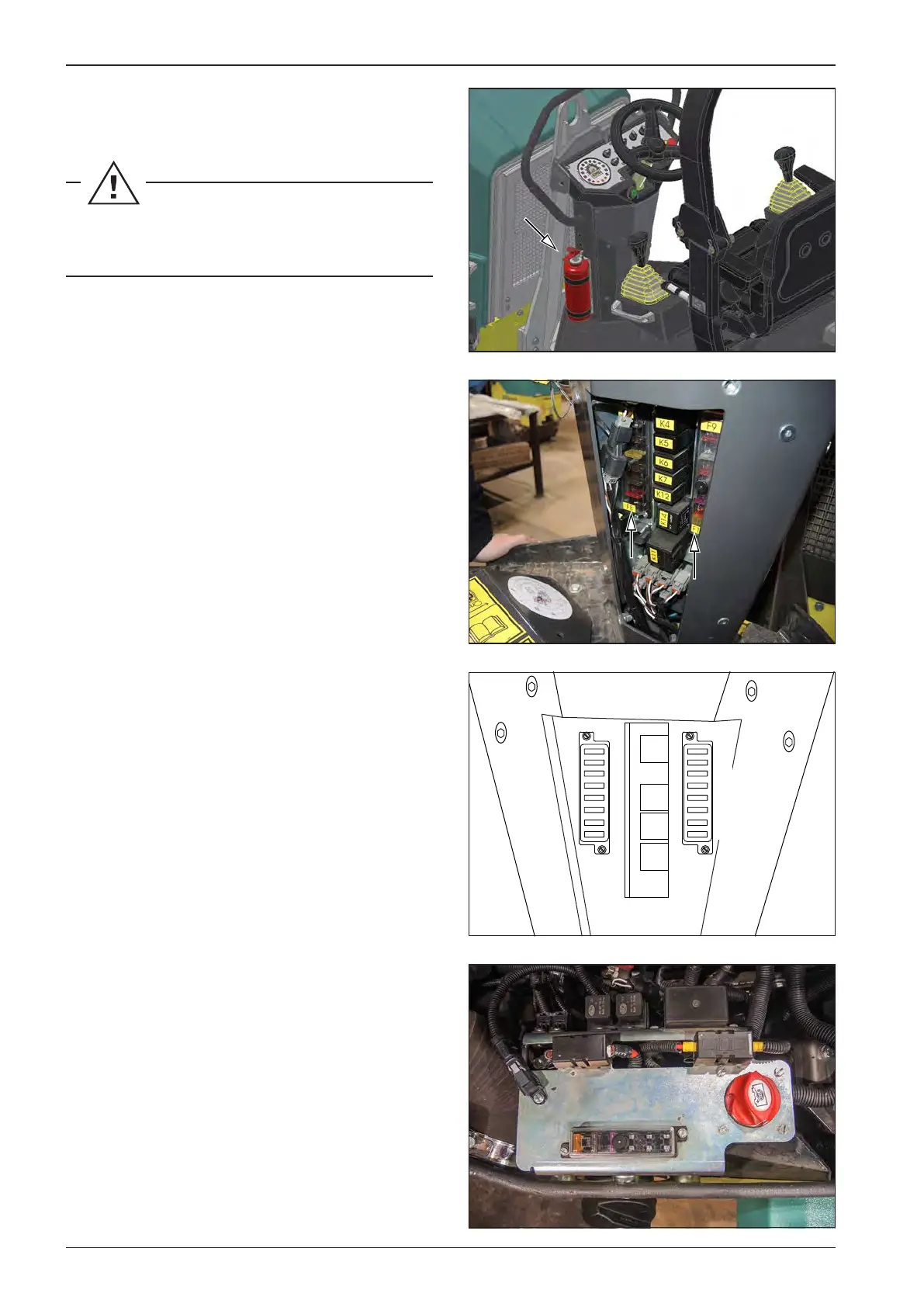

2.6 Controls and checking instruments
Fire extinguisher (optional equipment)
Place to install are extinguisher.
The manufacturer recommends that the machine be
equipped with are extinguisher.
Fuse box
F1 – 7.5 A ..........Parking lights
F2 – 7.5 A
..........Tail lights, licence plate light
F3 – 15 A
...........Headlamps
F4 – 15 A
...........Rear light, ROPS lights, beacon, green beacon,
monitoring device
F5 – 5 A
..............Direction indicators
F6 – 5 A
..............Control unit – electronics
F7 – 40 A
...........Control unit – power part
F8 – 5 A
..............Display, alternator excitation
F9 – 25 A
...........Hydraulic oil cooler
F10 – 10 A
.........Service socket, seat heating
F11 – 7.5 A (15 A*) Water sprinkling pump, emulsion sprinkling
pump at the axle
F12 – 7.5 A
........Right travel lever, left travel lever, dierential
lock switch, working mode selector, horn
switch, brake tester, calibration button
F13 – 7.5 A
........Horn
F14 – 5 A
...........Seat switch
F15 – 5 A
...........Infra thermometer, monitoring device
F16
......................Reserve
* ARX 23-2C, ARX 26-2C
Battery disconnector fuses
F20 – 70 A
.........main fuse
F21 – 35 A
.........Intake/holding coil – Intake coil
F22 – 7.5 A
........Fuel pump
F23 – 5 A
...........Compaction module
F30 – 50 A
.........Glowing
