97ARX 23-2 T4i, ARX 26-2 T4i

S591000

S591001

S591002

S591003

OPERATING MANUAL

2.7.14 Lowering and raising of the plastic

canopy

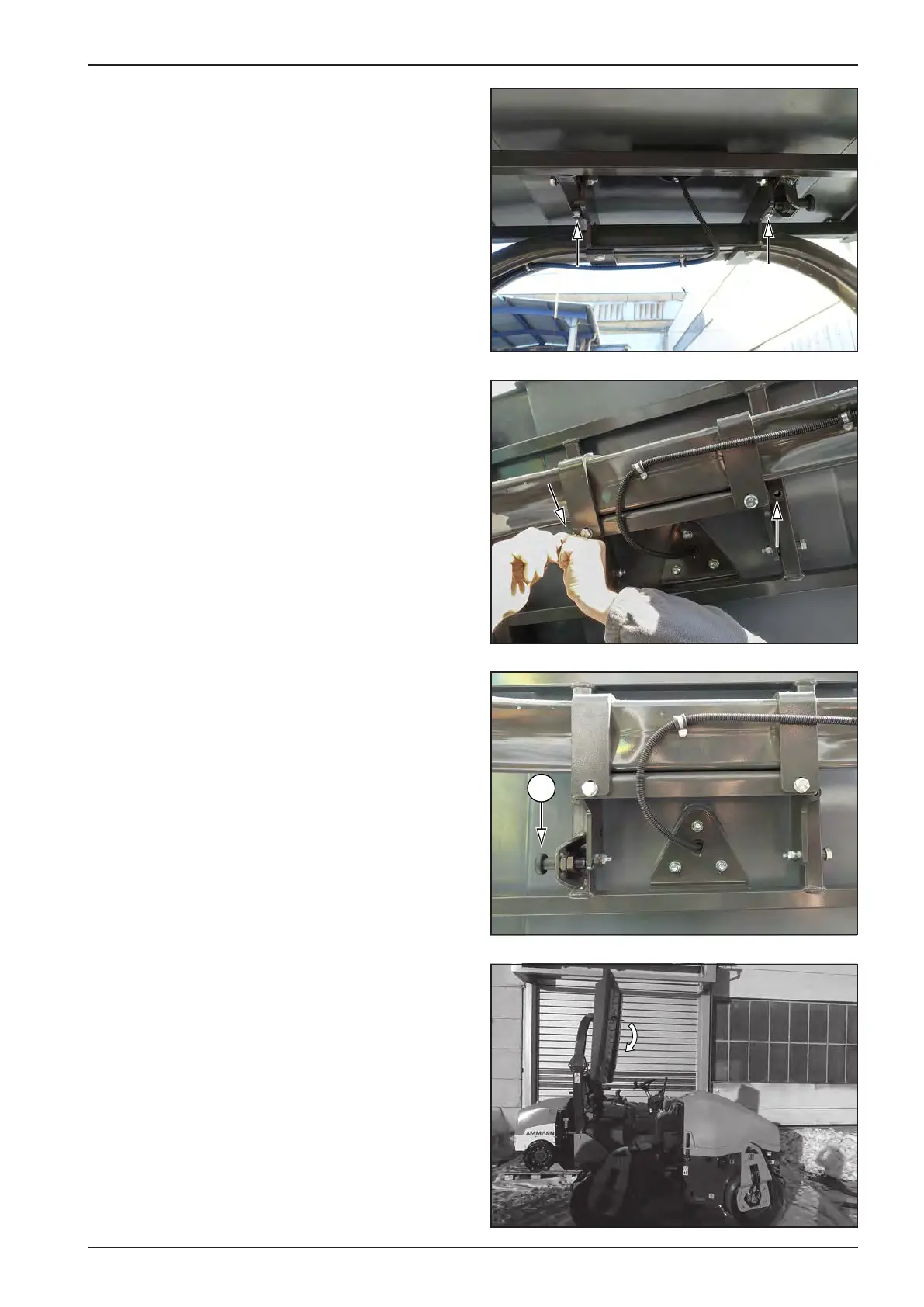

Lowering procedure

Remove the screws (2x) at the bottom of the plastic canopy.

Release the canopy by pulling out the lever (1) slightly and low-

er the canopy.
