Ammann ARX 23-2C - Drum Offset

104 ARX 23-2 T4i, ARX 26-2 T4i
588902
X
588903
Y
3
3
3
3
4
4
4
4
588999
1
2
588086A
5
6
7

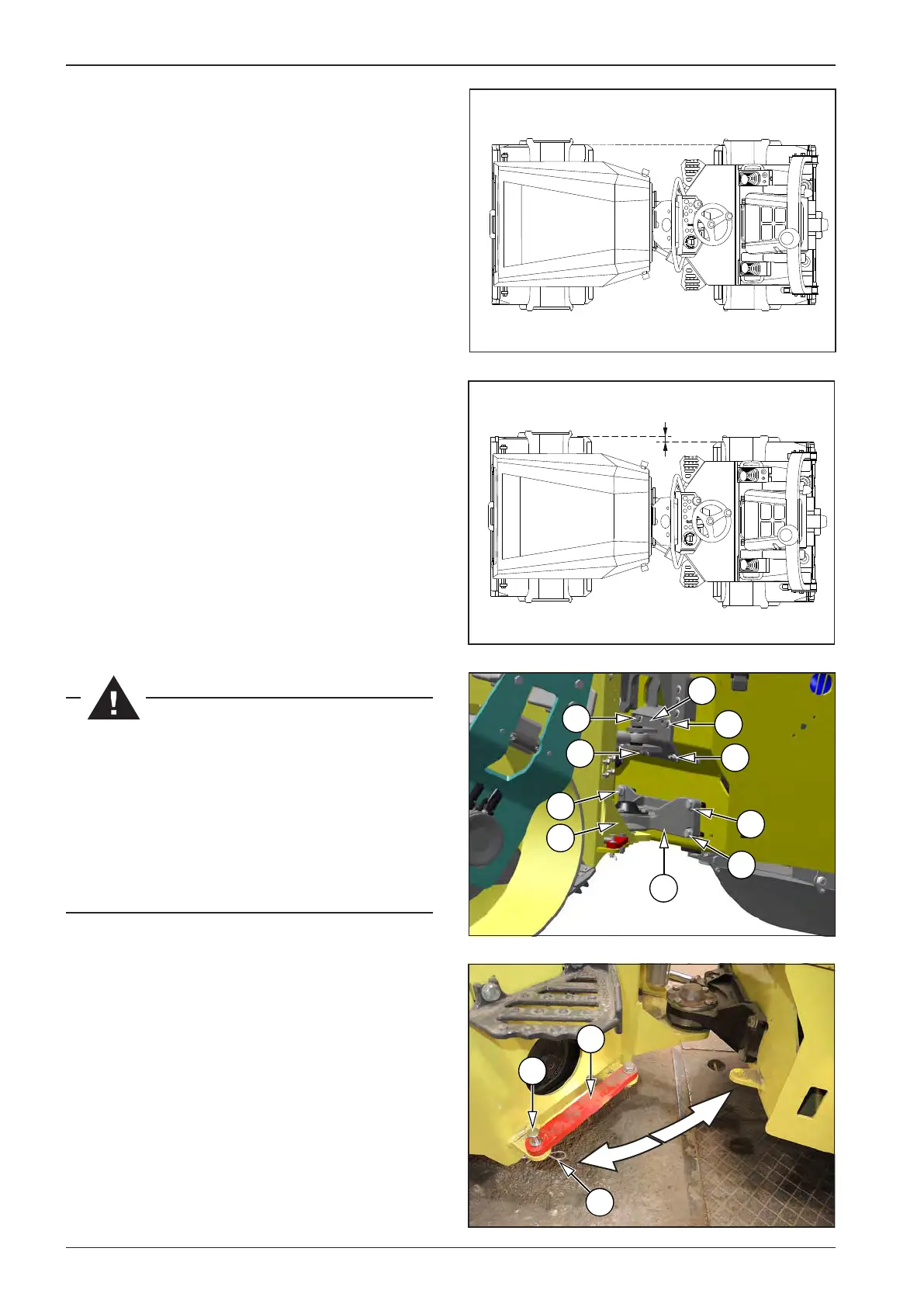

2.9 Special conditions to use the machine
2.9.2 Drum oset
In-line position (Y)
In the in-line position, the machine drums are aligned in the
same plane.
To adjust the drum from the oset position to the in-line
position:
• Lock the strut (5) using the pin (6) and safety pin (7).
• Loosen the screws (3) and move the suspension of the con-
necting rod (1) to the left and then tighten the screws (3).
• Loosen the screws (4) and move the joint part (2) to the right
and then tighten the screws (4).
• Unlock the strut (5) using the pin (6) and safety pin (7).
Oset position (X)
In the oset position, the front drum of the machine is oset
to the right side from the rear drum. The drum oset is 40mm.
To adjust the drums from the in-line position to the oset
position:
• Lock the strut (5) using the pin (6) and safety pin (7).
• Loosen the screws (3) and move the suspension of the con-
necting rod (1) to the right and then tighten the screws (3).
• Loosen the screws (4) and move the joint part (2) to the left
and then tighten the screws (4).
• Unlock the strut (5) using the pin (6) and safety pin (7).
Danger of injury!
Carry out the drum oset when the engine is not running!
Lock the front and rear frame with the strut (5) in the
joint area to prevent squeezing.
After the drum oset is completed, unlock the front and
rear frame using the strut (5) in the joint area.
Make sure there are no persons in the dangerous area of
the machine.
