First stage
There are no errors, but warnings of some processes.
Warning on the display Description
- 11 Seat contact open
- 12 One or both levers are out of Parking brake position
- 16 Immobiliser is active
Second stage

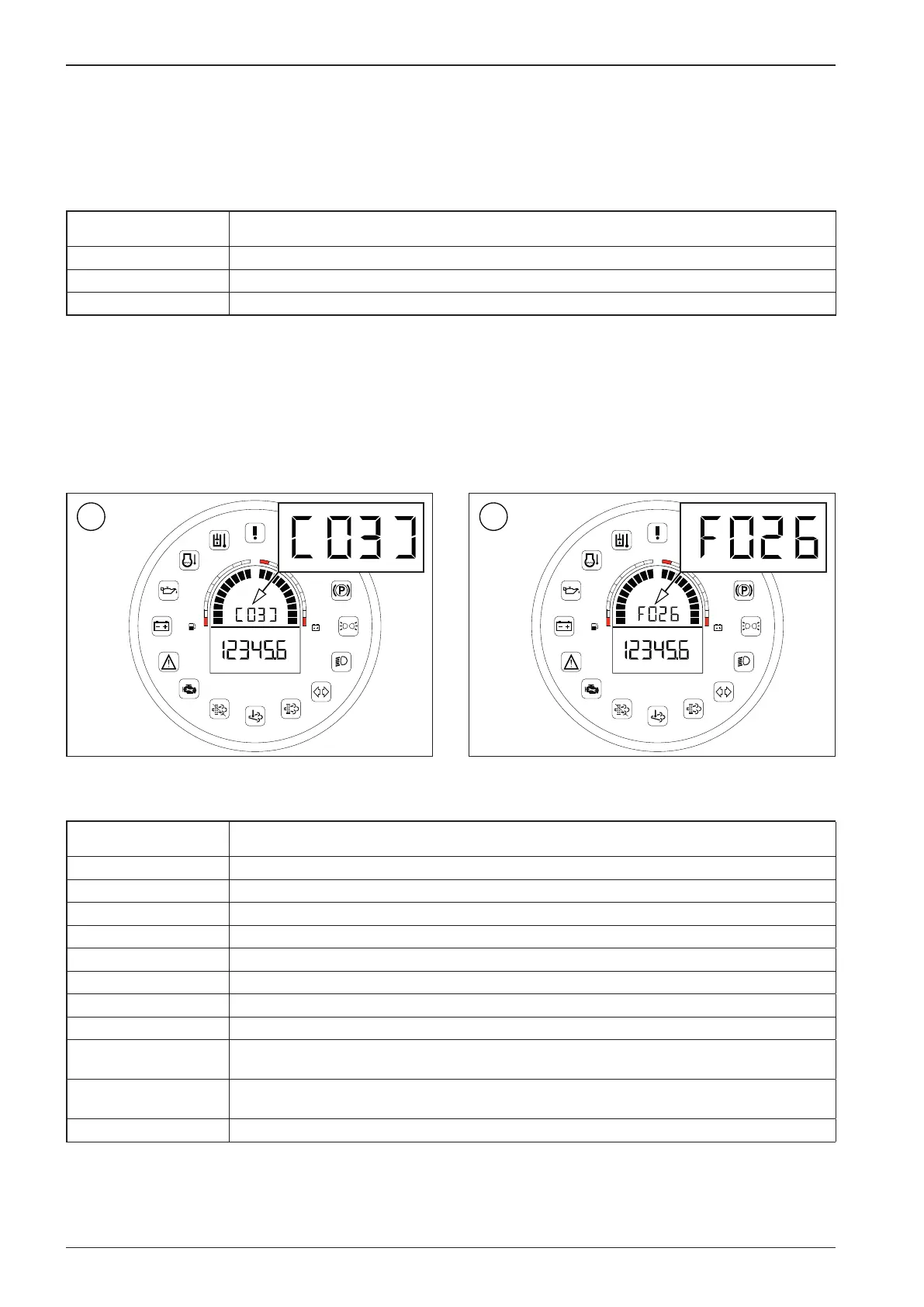

If there are one or more active errors (from the engine or control unit), the display rst shows the amount of these errors in square
brackets (1) and then the numbers of the errors one by one (2). The errors are thus displayed one by one as long as they are active.
Error on thedisplay Description
F21 Drive Joystick Right failure
F23 Drive Joystick Left failure (if present)
F25 Sprinkling Potentiometer
F26 [SF] SF5.2 - SafetyFunction Hydraulic temperature sensor diagnostic
F29 Vibro Relays failure
F30 Brake valve failure
F31 Battery voltage lower than 7 V
F32 [SF] SF5.1 - SafetyFunction Hydraulic oil over temperature
F36
Current PWM pump forward - the requested and measured currents of the pump forward magnet
are too dierent from each other.
F37
Current PWM pump backward - the requested and measured currents of the pump forward mag-
net are too dierent from each other.
F38 [SF] SF2.9 - SafetyFunction Drive direction (SF_DriveDirection), Wrong drive direction
3.7 Troubleshooting
The texts are given only in the original language version or as atranslation of the original into the English language version.
3.7.1 List of error codes displayed on the display
Machine error codes
