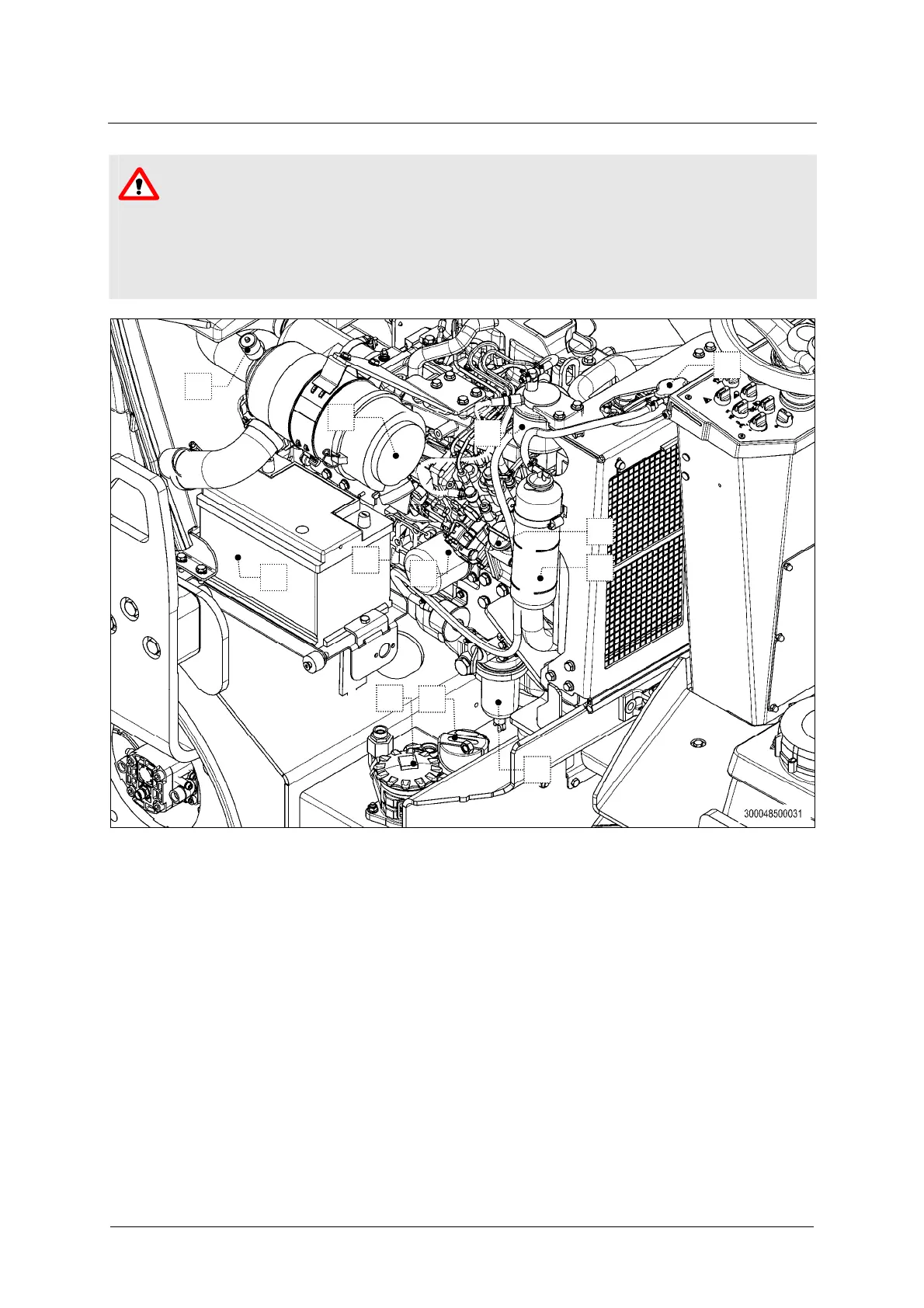

Engine compartment inspection summary
WARNING!
Switch the diesel engine off when performing any inspection, adjustment or
maintenance work. The parking brake is active when the diesel engine is
switched off.
1 Battery
2 Engine oil filler neck
3 Air filter
4 Air filter soiling display
5 Oil dipstick
6 Coolant level display
7 Hydraulic oil filler neck
8 Hydraulic oil filter
9 Engine oil filter
10 Fuel filter
11 Coolant filler neck
12 Water separator
4
3
1
5
9
7
8
12
6
2
11
10
